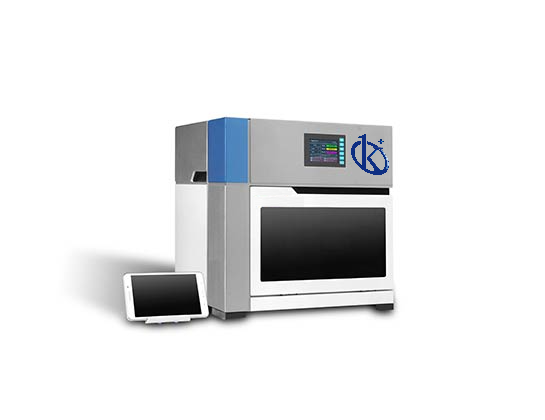

Automatic Nucleic Acid Extractor YR01870
Automatic Nucleic Acid Extractor YR01870 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Automatic Nucleic Acid Extractor YR01870 utilizes the reliable magnetic bead method instrumental in achieving highly purified nucleic acids swiftly and efficiently. It is designed to cater to diverse sample types that are crucial in sectors such as molecular diagnostics, forensic analysis, genetic identity testing, and biomedical research. This user-friendly device comes equipped with preloaded protocols and preparation kits, empowering users to extract nucleic acids swiftly while maintaining an exceptional level of purity, making it an invaluable tool for laboratories and research facilities worldwide.
Market Price
The Automatic Nucleic Acid Extractor is an advanced piece of equipment, and as such, its market value reflects its superior capabilities and technology. Typically, devices of this nature, inclusive of similar functionalities, feature an average price range from $13,000 to $13,800. This positions the YR01870 as not only a cost-effective solution in its price bracket but also a leader in efficiency and reliability.
Frequently Asked Questions
What is the processing volume of the YR01870? The YR01870 can process volumes ranging from 30 to 1000 mL, offering flexibility to meet various lab requirements.
How is the device controlled? It can be seamlessly operated through a machine keypad or remotely via an Android-enabled app.
How is contamination controlled? The extractor includes a unique sample cross-contamination control system and a UV disinfection module, ensuring sample purity.
Advantages and Disadvantages
Advantages: The YR01870 boasts rapid extraction processes, highly intuitive software, and dual operation modes for ease of use. Its robust contamination control measures guarantee operational integrity.
Disadvantages: High initial investment cost and reliance on specific magnetic bead-based kits.
Product Use in the Field
In practical scenarios, the Automatic Nucleic Acid Extractor YR01870 is deployed in genetic testing labs and research environments where precision and speed are imperative. The device's throughput capability of processing up to 32 samples in just 15 minutes enhances productivity, allowing researchers to focus on critical analysis and development tasks.
Recommendations
To maximize the efficiency of the YR01870, ensure regular maintenance and proper calibration. Familiarizing the operators with the software interface can significantly enhance workflow. For users looking to integrate cutting-edge technology into their processes, we recommend reaching out via the Kalstein Plus platform to receive automatic quotations and further product insights.
Features
- Efficient nucleic acid extraction with magnetic bead-based technology.
- Dual operation modes: machine keypad and app-based control.
- Advanced contamination control system with UV disinfection.
- Intuitive Android-based software for simplified operation.
- Ability to store numerous experimental protocols.
Technical Specifications
| Model | YR01870 |
| Throughput | 32 |
| Processing Volume | 30-1000mL |
| Recommended Sample Volume | 200uL |
| Magnetic Bead Residue | £1% |
| Suitable Consumables | 96-well plates, 6- tube strips |
| Heating Temperature | Lysis heating: room temperature to 120°C |
| Elution heating: room temperature to 120°C | |
| Mixing Mode | Optional multi-modes and multi-gears for mixing |
| Reagent Type | Magnetic beads-based extraction kits |
| Operation Mode | A. Cloud-enabled control via smart phones/tablets (Android) |
| B. Machine keypad operation | |
| Experimental Storage | Up to >500 groups of programs saved in the Android app |
| Up to 15 groups of programs saved in device | |
| Program Management | Programs can be created, edited, applied and deleted with high flxibilit |
| Contamination Control | Built-in UV disinfection module |
| Power Failure Protection | Choose freely whether or not to continue the experiment when the power is on again after cutting off |
| Connection port type | USB. Ethernet, USB Type-B |
| Network Connection | Cloud-enabled control on smart phone/tablet |
| Instrument Dimensions | 435mmx440mmx445mm (WxLxH) |
| Weight | 31.5kg (net) |
| Power Supply | AC 100-240V. 50/60+1Hz: 600w |
| Operating temperature range | 10~30°C |
| Operating humidity range | 20%-85% |
Technical specifications
| Weight | 40 kg |
|---|---|
| Manufacturer | Kalstein |
Image gallery
Frequently asked questions
How to know the prices of Automatic Nucleic Acid Extractor YR01870?
To know the price of Automatic Nucleic Acid Extractor YR01870, please send us an email with your request through the contact form AQUI.
What are the delivery times for Automatic Nucleic Acid Extractor YR01870?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Automatic Nucleic Acid Extractor YR01870?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Automatic Nucleic Acid Extractor YR01870?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Automatic Nucleic Acid Extractor YR01870?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
