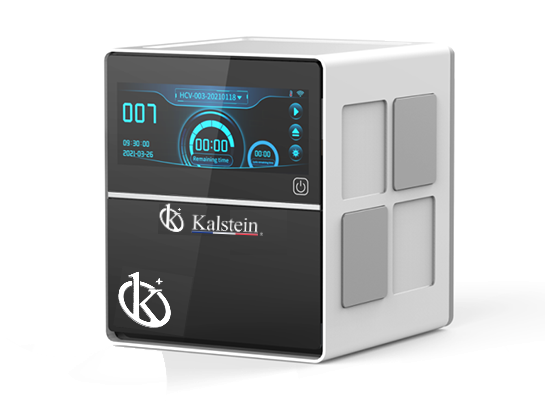

Automatic Nucleic Acid Extractor YR01869-2
Automatic Nucleic Acid Extractor YR01869-2 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Automatic Nucleic Acid Extractor YR01869-2 is expertly engineered to combine compactness with high-level functionality, thanks to its innovative rotary mixing technology (RMT). This design supports 16 x n different flow rates, satisfying diverse extraction requirements simultaneously without interference. Garnering the prestigious German Red Dot Design Award in 2021, it stands out not just for performance but also for its user-friendly design. Equipped with a separate extraction module, it’s perfectly suited for swift and efficient testing tasks.
Market Price Range
For those seeking cutting-edge nucleic acid extraction solutions, the YR01869-2 positions itself within a competitive market range. Products in this category generally vary from $8500 to $9600 USD, accommodating both budget-conscious users and those looking for premium options. However, such high-tech equipment demands an investment that assures precision, speed, and flexibility, features synonymous with the YR01869-2.
Frequently Asked Questions
What types of samples can the YR01869-2 handle?
The YR01869-2 is versatile and can process a variety of samples, with a volume capacity ranging from 200μL to 500μL. This adaptability supports various research and clinical needs.
How does the device update its protocols?
The extractor features remote updating capabilities, allowing users to maintain and update reagent protocols and instrument settings seamlessly over the network.
Advantages and Disadvantages
Advantages:
- Flexible extraction capabilities with 16 x n configurations.
- Award-winning ergonomic design.
- Real-time monitoring and automatic adjustments for superior performance.
- Enhanced contamination control measures.
Disadvantages:
- Higher initial investment compared to basic models.
- Requires periodic maintenance and updates to ensure optimal functionality.
Product Use in the Field
The YR01869-2 excels in various settings, from advanced research labs to clinical environments, offering unmatched efficiency and flexibility for real-world applications. Its portable power design means you can initiate experiments across different locations, meeting diverse scenario demands effortlessly.
Recommendations
To maximize the benefits of the YR01869-2, it is advised to use the device in a clean, controlled environment to maintain accuracy and prevent contamination. Regular updates via the remote feature should be conducted to keep the device performing at its best.
Features
- Rotary Mixing Technology for diverse needs.
- Remote protocol updates and system maintenance.
- Mobile operation with standalone power supply.
- Multifaceted contamination control with UV, HEPA, and negative pressure systems.
- User-friendly interface with touch screen and APP control.
- Automatic functions to enhance user comfort and safety.
Technical Specifications
| Model | YR01869-2 |
| Throughput | 16 |
| Processing Volume | 20-1700μL |
| Sample Processing Volume | 200-500μL |
| Compatible Consumables | Customized 96-deep-well plates, single 6-strip tubes |
| Inter-well Difference | CV≤3% |
| Mixing Method | Rotary mixing |
| Rotary Speed | 100~3000rpm |
| Temperature Control Range | Temperature control separately for lysis and elution. |
| Temperature range from 30°C to 120°C. | |
| Temperature Control Accuracy | Heating speed: 4.0±0.2°C/s. |
| Temperature accuracy: ±1.0°C. | |
| Temperature uniformity:≤1.0°C. | |
| Languages | Chinese/English |
| Protocol Management | Flexible to create, edit and delete protocols |
| Operation Mode | Mode 1: Android systems in smartphones/tablets |
| Mode 2: 6.86 inch full-color LCD screen | |
| Automatic Control | Automatic opening and closing of the experiment cabin |
| Reagent Identification | Automatic identification of reagent information and running the assays |
| Mixing Sleeve Monitoring | Real-time monitoring of the mixing sleeves status in experiment |
| Magnetic Bead Residue | ≤1% |
| Power Failure Protection | Choose freely whether or not to continue the experiment when the power is on again after cutting off |
| Disinfection | Ozone + UV disinfection |
| Auto Power-off | Auto power-off after UV disinfection |
| Negative-Pressure Filtration | Negative pressure HEPA filtration module |
| Connection Port Type | USB port |
| Weight | 7.4Kg (net) |
| Instrument Dimensions | 210mm(L)*229mm(W)*242mm(H) |
| Power Supply | AC220V, 50Hz |
