Description

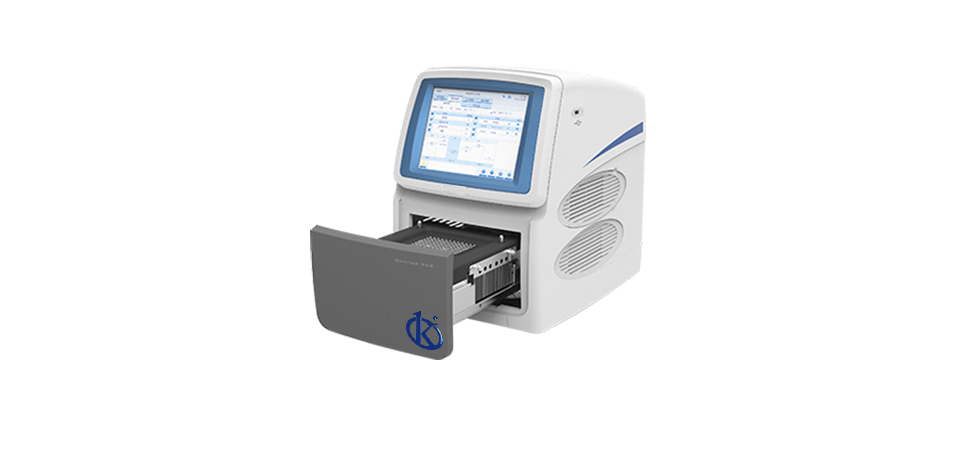

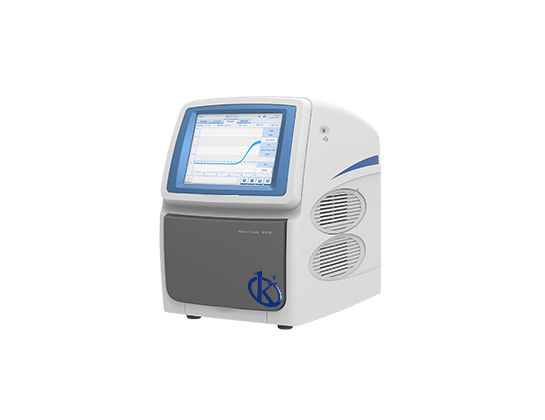

The Real-time PCR System YR01869 is an advanced PCR assay machine crafted to cater to the sophisticated demands of high-end laboratories. With its ability to process 96 samples at once and equipped with five fluorescence channels, it ensures unmatched performance and efficiency. The system is engineered with a robust and efficient temperature control system, intuitive software, and an ergonomic design. This high-precision real-time PCR system promises reliability and efficiency for all your real-time PCR diagnostics.
Market Price
The Real-time PCR System YR01869 is positioned competitively within the market. Typically, similar high-end PCR systems range in price from $8,500 to $9,600, offering a comprehensive suite of features akin to this remarkable device.
Frequently Asked Questions
Q: How long does it take to scan 96 samples?
A: The system scans 96-well plates in just 7 seconds, drastically reducing testing times.
Q: What kind of software does it use?
A: It uses Gentier 96 E/R software, which includes absolute and relative quantitative analysis, SNP analysis, and more.
Advantages and Disadvantages
Advantages:
1. High throughput allows for processing up to 96 samples quickly.
2. Powerful analysis software for comprehensive data analysis.
3. Effective power failure protection ensures experiment continuity.
Disadvantages:
1. The initial investment is significant, which may be higher compared to basic models.
Use of Product in the Field
The Real-time PCR System YR01869 is ideal for applications in molecular biology labs, clinical diagnostics, and research institutions. Its robust design and efficient processing capabilities make it indispensable for high-throughput PCR analyses, ensuring accuracy and speed in delivering results.
Recommendations
For optimal performance, it is recommended to regularly calibrate the system and run routine maintenance checks. Utilizing standard-compliant consumables further ensures reliable results. Consider leveraging Kalstein Plus for streamlined procurement or to request a quotation.
Features
- Processes 96 samples in 7 seconds
- Equipped with six fluorescence channels for comprehensive analysis
- Intuitive user interface with a 10.4-inch touch screen
- Power failure protection with automatic recovery
- Flexible control modes (touch screen and PC control)
Technical Specifications
| Model | YR01869 |
| Throughput | ene-96 |
| Fluorescence Channels | 6 |
| Fluorescence Scanning Time | 7s |
| Dye Compatibility | Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green |
| Channel 2: HEX, VIC, TET, JOE | |
| Channel 3: ROX, Texas Red | |
| Channel 4: Cy5 | |
| Channel 5: Alexa Fluor 680 | |
| Channel 6: FRET | |
| Optical System | |
| Light Source | High-brightness, long life and maintenance-free LED light source,excitation from the top |
| Detector | Photodiodes (PDs), top scanning |
| Excitation Range | CH1: 465nm CH2:527nm CH3:580nm CH4:632nm CH5:680nm CH6:465nm |
| Detection Range | CH1: 510nm CH2:563nm CH3:616nm CH4:664nm CH5:730nm CH6:616nm |
| Fluorescence Dynamic Range | Adjustable |
| Sample Dynamic Range | From 101 to 1010copies |
| Thermal Black | |
| Heating Method | Peltier |
| Heating Rate | >6.1 ℃/s |
| Cooling Rate | >5.0 ℃/s |
| Temperature Uniformity | ±0.1 ℃ |
| Temperature Accuracy | ≤0.1 ℃ |
| Gradient Range | 1℃-40 ℃ |
| Gradient Block | 12 row |
| Special Temperature Protocol | Thermal gradients PCR, long PCR, Touch Down PCR |
| Sample Testing Linearity and Repeatability | Linear correlation: /r/ ≥ 0.999 |
| Repeatability: cycle threshold (Ct) value CV≤0 0.5% | |
| Software Functions | |
| Control Modes | Model 1: 10.4 inch touch screen |
| Mode 2: PC direct control | |
| Power Failure Protection | Automatically start running experiments after power supply, no need to wait PC software |
| Data Storage and Transmission | Upload and download through USB disk. 1000 results can be stored in machine |
| Reporting Function | Templates reserved; customized experiment report |
| Key Applications | Relative quantification, absolute quantification, melting curve analysis ,SNP analysis |
| Others | |
| Operating System for PC | Win7/Win10/Win11 |
| Power Supply and Power Consumption | AC 100-240V,50-60HZ, 900VA |
| Weight | 30 Kg (net) |
| Instrument Dimension | 555*475*484mm (W*L*H) |
| Suitable Consumables | 0.2mL 96-well plates, 8-tube strips, single tubes(clear, frosted and white). |
