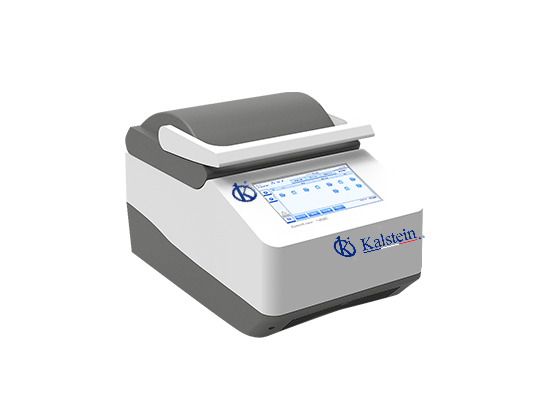

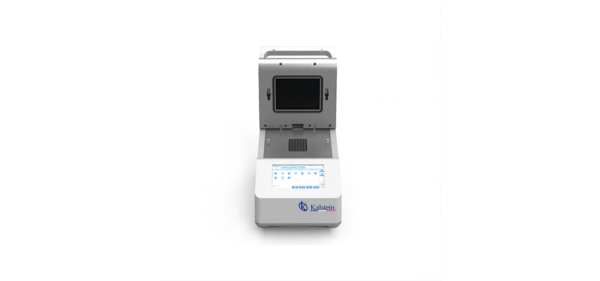

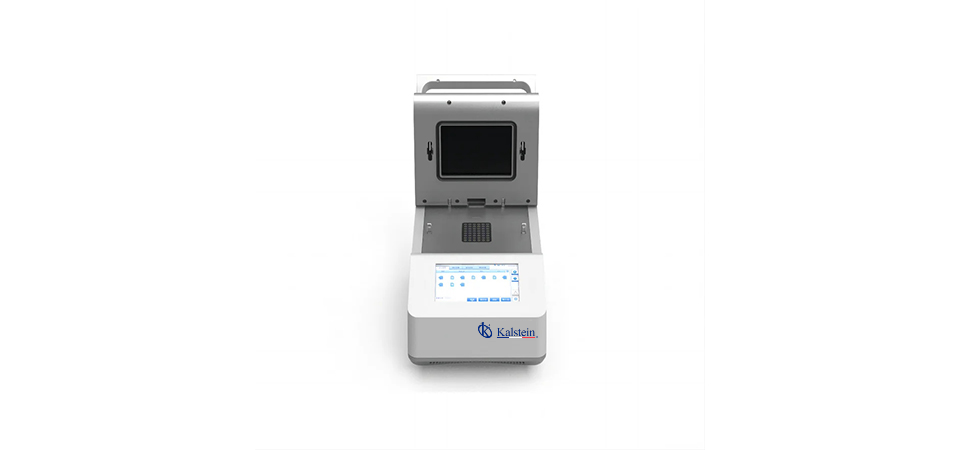

Real-time PCR System YR01868
Real-time PCR System YR01868 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Real-time PCR System YR01868 is designed to provide unparalleled performance and efficiency for real-time PCR tests. This state-of-the-art workstation is equipped with cutting-edge optical technologies and robust software, making it ideal for small to medium laboratories, mobile labs, and on-site testing facilities. With its ability to process 48 samples in a single run and four distinct fluorescence channels, this system simplifies and enhances the management and accuracy of your experiments, all while maintaining portability and high efficiency.
Market Price
In today's market, real-time PCR systems similar to the YR01868 are priced anywhere from $15,500 to $16,500, depending on the features and configurations offered. The YR01868 offers exceptional value within this range, providing advanced technology and reliable performance for a wide array of laboratory applications.
Frequently Asked Questions
Is the Real-time PCR System YR01868 compatible with other lab equipment?
Yes, it can be easily integrated with other lab systems and supports data exchange via USB for seamless connectivity.
What happens if there is a power failure during a test?
The YR01868 is equipped with a power failure protection design that automatically resumes experiments, ensuring no data is lost.
Advantages and Disadvantages
Advantages: The system offers rapid fluorescence scanning, high throughput, and exceptional temperature accuracy, all in a compact form that enhances mobility. It also boasts a powerful analysis software capable of multiple quantification techniques.
Disadvantages: Despite its portability, the system requires careful handling during transportation, and users must ensure the compatibility of consumables to maximize performance.
Field Use
This portable PCR system excels in field conditions where on-site testing and rapid results are crucial. Whether it's for mobile labs or deployment in remote areas, the YR01868 delivers reliable performance without compromising accuracy or speed.
Recommendations
To get the most out of your YR01868 PCR system, ensure regular calibration and perform routine maintenance checks. Using compatible consumables is also recommended to maintain the accuracy and longevity of the equipment. For detailed pricing and to explore our user-friendly purchase options, consider requesting a quote through our Kalstein Plus platform.
Features
The YR01868 is characterized by its capacity to process 48 samples swiftly, an innovative power failure protection, flexible configuration options, and software capable of extensive data analysis.
Technical Specifications
| Model | YR01868 |
| Throughput | ene-48 |
| Fluorescence Channels | 2 |
| Fluorescence Scanning Time | 2s |
| Dye Compatibility | Channel 1: FAM, SYBR Green I, SYTO 9, Eva Green, LC Green |
| Channel 2: HEX, VIC, TET, JOE | |
| Optical System | |
| Light Source | High-brightness, long life and maintenance-free LED light source |
| Detector | Photodiodes (PDs) |
| Excitation Range | CH1: 470nm CH2:523nm CH3:570nm CH4:638nm |
| Detection Range | CH1:525nm CH2:564nm CH3:610nm CH4:685nm |
| Fluorescence Dynamic Range | Adjustable |
| Sample Dynamic Range | From 101 to 1010copies |
| Thermal Black | |
| Heating Method | Peltier |
| Heating Rate | ≥8.0 ℃/s ℃ |
| Cooling Rate | ≥6.2 ℃/s |
| Temperature Accuracy | ≤0.1 ℃ |
| Gradient Range | 1℃-40 ℃ |
| Gradient Block | 8 row |
| Special Temperature Protocol | Thermal gradients PCR, long PCR, Touch Down PCR |
| Sample Testing Linearity and Repeatability | Linear correlation: /r/ ≥ 0.999 |
| Repeatability: cycle threshold (Ct) value CV≤0 0.5% | |
| Software Functions | |
| Control Modes | Model1: 7 inch touch screen |
| Mode 2: PC direct control | |
| Power Failure Protection | Automatically start running experiments after power supply, no need to wait PC software |
| Data Storage and Transmission | Upload and download through USB disk. 1000 results can be stored in machine |
| Reporting Function | Templates reserved; customized experiment report |
| Key Applications | Relative quantification, absolute quantification, melting curve analysis, SNP analysis |
| Others | |
| Operating System for PC | Win7/Win10/Win11 |
| Power Supply and Power Consumption | AC 100-240V,S0-60HZ; 600VA |
| Weight | 11 Kg (net) |
| Instrument Dimension | 260*400*260mm (W*L*H) |
| Suitable Consumables | 0.2mL clear non-skirt 48-WELL plates, 8>tube strips, single tubes, etc. |
Technical specifications
| Weight | 14 kg |
|---|---|
| Manufacturer | Kalstein |
