Description

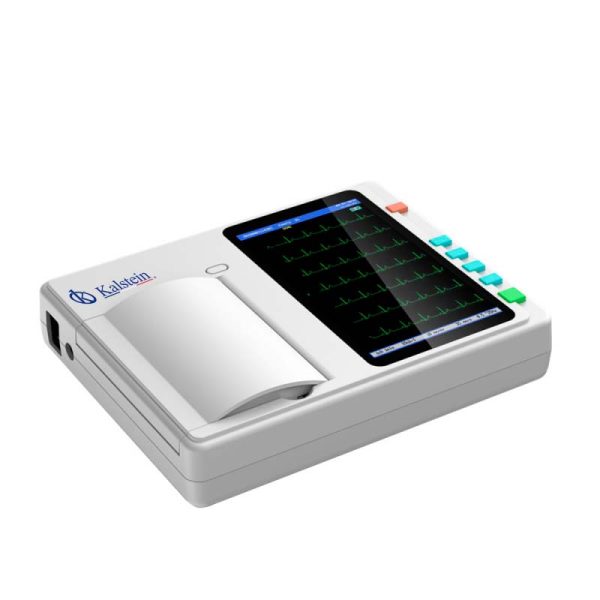

As the name suggests, the 3-channel ECG machine prints 3 waveforms / channels at a time. On 3-channel machines, the ECG signals selected by the microprocessor are amplified, filtered and sent to a 3-channel multiplexer.
Technical description
| Model | YR05158 |
| Power supply | Electric |
| Warranty | Forever |
| After-sales service | Return and replacement |
| Material | metal, plastic |
| Duration | 1 year |
| Quality certification | this |
| Instrument Classification | Class II |
| Safety standard | None |
| Type | Cheap Price Animal ECG |
| Monitor | 7-color LCD touchscreen Super slim design |
| Points of sale | Support SD card, USB disk |
| Analysis modes | Manual / Auto / Arrhythmia |
| Guides | 12 Guides |
| Software ECGNET | Optional |
| Anti-baseline drift | Automatic |
| Interface | USB/RS232 |
| Storage | 30,000 patients save / replay |
| Recording | 112mm *20m |
| Elements | specification |
| Characteristics | 7 ″ display, touch screen Support Ecg analysis capabilities |
| Guides | 12 Guides |
| Acquisition of potential customers | synchronously 12 leads |
| Input circuit | Floating; Protection circuit against the effect of the defibrillator |
| Input impedance | ≥50MΩ |
| Input circuit current | ≤0.0.05μA |
| Recording mode | Automatic: 3CH × 4 + 1R, 3CH × 4, 3CHx2 + 2CHx3,3CHx2 + 2CHx3 + 1R, 6CHX2; Manual: 3CH, 2CH, 3CH + 1R, 2CH + 1R; Rhythm: any selectable lead. |
| Filter | EMG Filtro: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz DFT Filtro: 0.05 Hz/ 0.15 HzAC Filtro: 50 Hz / 60Hz |
| CMRR | >100dB |
| Patient current leak | <10μA |
| Input circuit current | <0.05µA |
| Frequent response | 0.05Hz~150Hz (-3dB) |
| Sensitivity | 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV |
| Anti-baseline drift | Automatic |
| Constant time | ≥3.2s |
| Noise level | <15μVp-p |
| Paper speed | 12.5 mm/s, 25 mm/s, 50 mm/s |
| Recording mode | Thermal printing system |
| Paper specification | 80mmx20m paper roll 120mmx20m paper roll |
