Description

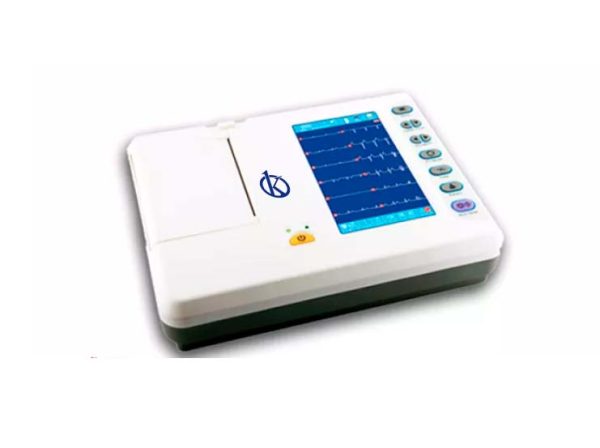

This new 6-channel YR ECG will bring you the power of advanced and easy-to-use technologies, multiple forms of data management, as well as accurate measurements and interpretations, which can improve the diagnostic confidence of cardiologists.
Technical description
| Model | YR05161 |
| Guide | 12 standard conductors |
| Input dynamic range | ± 10Vpp |
| Patient current leak | <10μA |
| Calibration Voltage | 1mV ± 2% |
| Tension Tolerance | : ≥ ± 500mV |
| Time constant | ≥3.2s |
| Frequency response | 0.05 ~ 160Hz (-3db) |
| Noise level | <15μVp-p |
| Input circuit current | 0.050.05 μA |
| Sensitivity | 2.5, 5.10, 20mm / mV |
| Interchannel interference | ≤0.5mm |
| Paper speed | 6.25,12.5, 25.50mm / s (± 3%) |
| Patient current leak | <10μA |
| AC filter | 50Hz / 60Hz |
| EMG filters | 25Hz / 45Hz |
| Anti-drift filter | 0.15 Hz (adaptive) |
| CMMR | ≥120dB (with AC filter) |
| Sensitivity Valve | ≤20μV |
| Input impedance | ≥50MΩ |
| Work Modes | MAN, AUTO, ANALYSIS modes |
| Acquisition of Potential Customers | 12 bits / 1000 Hz (synchronously 12 leads) |
| Input Circuit | floating; protection circuit against defibrillator effect |
| Screen | 7 inch LCD |
