Pulsed Xenon lamp Benchtop Spectrophotometer YR05474
Pulsed Xenon lamp Benchtop Spectrophotometer YR05474 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Pulsed Xenon Lamp Benchtop Spectrophotometer YR05474 is an advanced and independently developed device by Kalstein that offers precise and stable color measurement, making it ideal for R&D and laboratory environments. Equipped with a 7-inch TFT capacitive touch screen display and powerful PC software, it ensures comprehensive color analysis. Key features include full illuminants, reflective d/8 and transmissive d/0 geometry, and customizable measuring apertures. With a robust xenon lamp and CMOS sensor, the YR05474 stands out in UV and wide-spectrum measurements.
Price in the Market
The price of benchtop spectrophotometers like the YR05474 can vary significantly in the market due to features and capabilities. For a high-quality spectrophotometer such as this, prices generally range between $14,000 and $15,000. For precise pricing and detailed information, potential buyers are encouraged to request a quotation or use the Kalstein Plus platform for a tailored quote.
Frequently Asked Questions
What is the lifespan of the xenon lamp in the YR05474? The xenon lamp is built for longevity, offering a lifespan of approximately 5 years with more than 3 million measurements.
Can the spectrophotometer measure both reflectance and transmittance? Yes, it supports both reflective and transmissive spectrum measurements.
What industries benefit from using this spectrophotometer? Industries such as plastics, electronics, paint and ink, printing, garments, leather, paper, automotive, medical, cosmetics, and food welfare can greatly benefit from its precise color analysis.
Advantages and Disadvantages
The YR05474 offers numerous advantages, including precise color measurement, customizable apertures, and a robust, long-life xenon lamp. Its ability to store up to 20,000 test results and its powerful software make it a valuable asset. However, the initial investment might be a consideration for smaller laboratories.
Product Use in the Field
Designed for practical applications, the YR05474 is used in various scenarios such as quality control in manufacturing, color matching in printing, and research in scientific institutions. It combines ease of use with high precision, providing reliable results in multiple environments.
Recommendations
To maximize the use and lifespan of the YR05474, regular maintenance and calibration are advised. Calibrating the device ensures accuracy in color analysis, and the use of recommended accessories can enhance its capabilities. A strategic purchase through Kalstein Plus can provide additional support and extended functionality.
Features
- 7" TFT Color Capacitive Touch-screen Display.
- Bluetooth 2.1 Connectivity.
- Double Array 256 Image Element CMOS Sensor.
- Auto identification of measuring aperture with customizable options.
- Reflective and Transmissive measuring capabilities.
- Temperature sensor for precise measurement accuracy.
- 360nm – 780nm wavelength range.
- Large data storage capacity.
- Multiple measurement modes for various user requirements.
Technical Specifications
| Model | YR05474 |
| Optical Geometry | Reflectance: d/8 (SCI⪰ Include UV/Exclude UV) |
| Transmittance: d/0 (SCI⪰ Include UV/Exclude UV); Haze(ASTM D1003) | |
| Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 | |
| Integrating Sphere Size | Φ 154mm |
| Light Source Device | 360nm-780nm Xenon Lamp, 400nm cut-off Xenon Lamp,420nm cut-off Xenon Lamp,460nm cut-off Xenon Lamp |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 360-780nm |
| Wavelength Pitch | 10nm |
| Semiband Width | 5nm |
| Reflectance Range | 0~200% |
| Measuring Aperture | Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; |
| Transmissive : Φ30mm/Φ25mm;Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position | |
| Specular Component | Reflectance: SCI&SCE |
| Transmittance: SCI&SCE | |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB, HunterLab, DIN, βxy |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99 |
| Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI (ASTM D1925, ASTM 313), | |
| MI (Metamerism Index), | |
| Staining Fastness, Color Fastness, Color Strength, Opacity, | |
| Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003) | |
| Observer Angle | 2° & 10° |
| Illuminants | D65, A, C, UV, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 |
| Displayed Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
| Measuring Time | About 2.4s (Measure SCI & SCE about 5s) |
| Repeatability | Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.05%) |
| Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.012 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.06%) | |
| Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | Φ25.4mm/SCI, Within ΔE*ab 0.12 |
| (Average for 12 BCRA Series II color tiles) | |
| Size | 370×300×200mm |
| Weight | About 9.6kg |
| Power Supply | DC 24V, 3A Power Adapter |
| Light Source Device Life | 5 years, more than 3 million times measurements. |
| Display | 7" TFT Capacitive Screen-touch Display |
| Data Port | USB & Bluetooth & Print serial port |
| Data Storage | Standard 5000 Pcs, Sample 40000 Pcs |
| Language | Simplified Chinese, Traditional Chinese, English, (Optional Customized German, French and Spanish) |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation) |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |

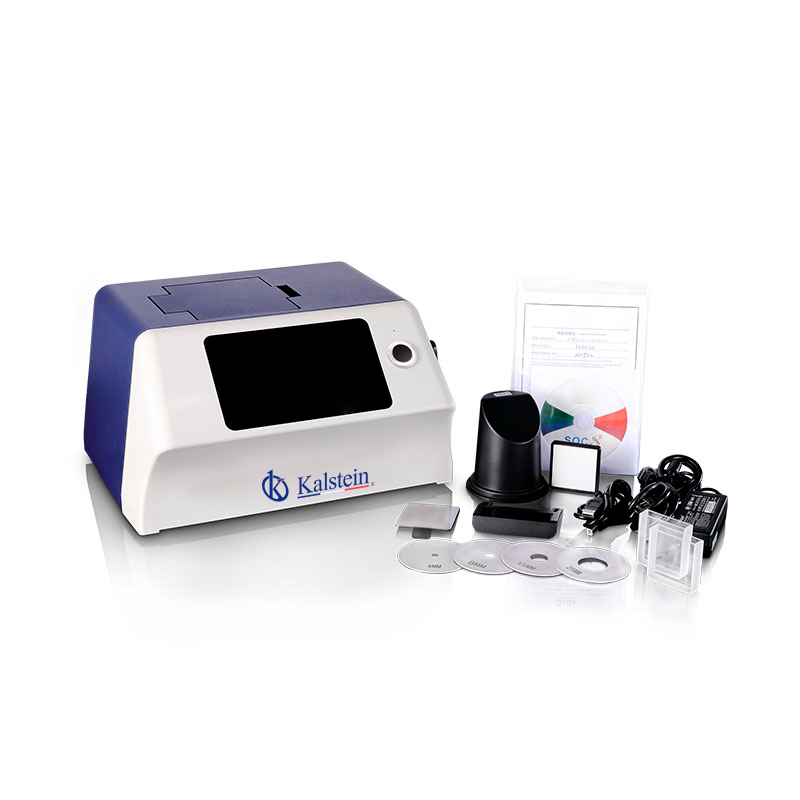

| Standard Accessory | Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber,Transmissive Test Component |
| Optional Accessory | Micro-printer, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components |
| Notes: The specifications are subject to change without notice. | |
Technical specifications
| Weight | 12.5 kg |
|---|---|
| Manufacturer | Kalstein |
