Description

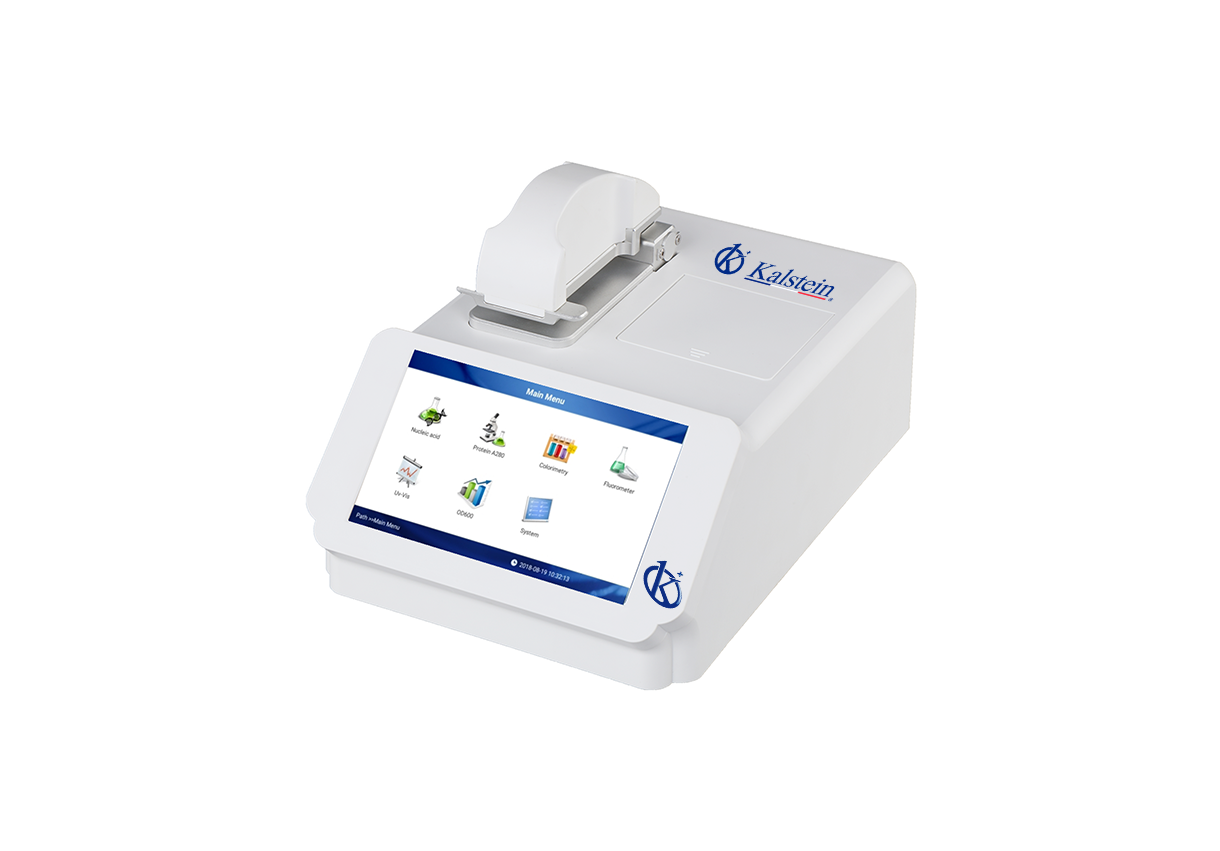

YR06035 is an advanced model of micro UV VIS spectrophotometer with full wavelength range (200-800 nm). It has a new added function of measuring bacterial cell concentration (OD600) in a cuvette. YR06035 requires only 0.5-2 μl of sample to measure nucleic acids, proteins as quickly as YR06033-1. YR06035 comes with a 7-inch touch screen and integrated Android operating system, with no computer required. It is an ideal equipment for a biology lab to make life science research more efficient.
Features
- The patented lifting motor structure makes the liquid column stretch more gentle, preventing the liquid column from breaking due to structural problems.
- To detect the concentration of bacteria and microorganism are more convenient with the OD600 function
- Android system, 7-inch capacitive touch screen, intuitive APP software, simple and easy to use
- With a 2048-Element linear CCD array detector, the detection and display can be completed in 6s
- Long-life pulsed xenon light source
- The result can be printed by a built-in printer or exported via USB for data analysis and storage
Technical Specifications
| Model | YR06035 |
| Wavelength range | 200-800 nm |
| Minimum sample size | 0.5-2.0 μl |
| Path length | 0.05 mm, 0.2 mm, 1.0 mm |
| Light source | Xenon flash lamp |
| Detector type | 2048-Linear CCD array |
| Wavelength accuracy | 1 nm |
| Spectral resolution | ≤3 nm |
| Absorbance precision | 0.003Abs |
| Absorbance accuracy | 1 % (7.332Abs at 260 nm) |
| Absorbance range | 0.04 – 300A |
| Detects nucleic acid up to | 2-15000 ng/μl (dsDNA) |
| Measurement time | <6 S |
| Data output | USB |
| Sample pedestal materia | Aluminum alloy and Quartz fiber |
| Operating voltage | DC 24 V 2 A |
| Operating power | 25 W |
| Standby power | 5 W |
| Dimension (WxDxH)mm | 208×320×186 |
| Weight | 3.6kg |
| Software compatibility | Android system |
| Light source | LED |
| Wavelength range | 600±8 nm |
| Absorbance range | 0-4 A |
| Fluorescent detection | |
| Sensitivity | dsDNA：0.5 pg/μl |
| Linear dynamic range | R²≥0.995 |
| Repeatability | ≤1.5 % |
