Description

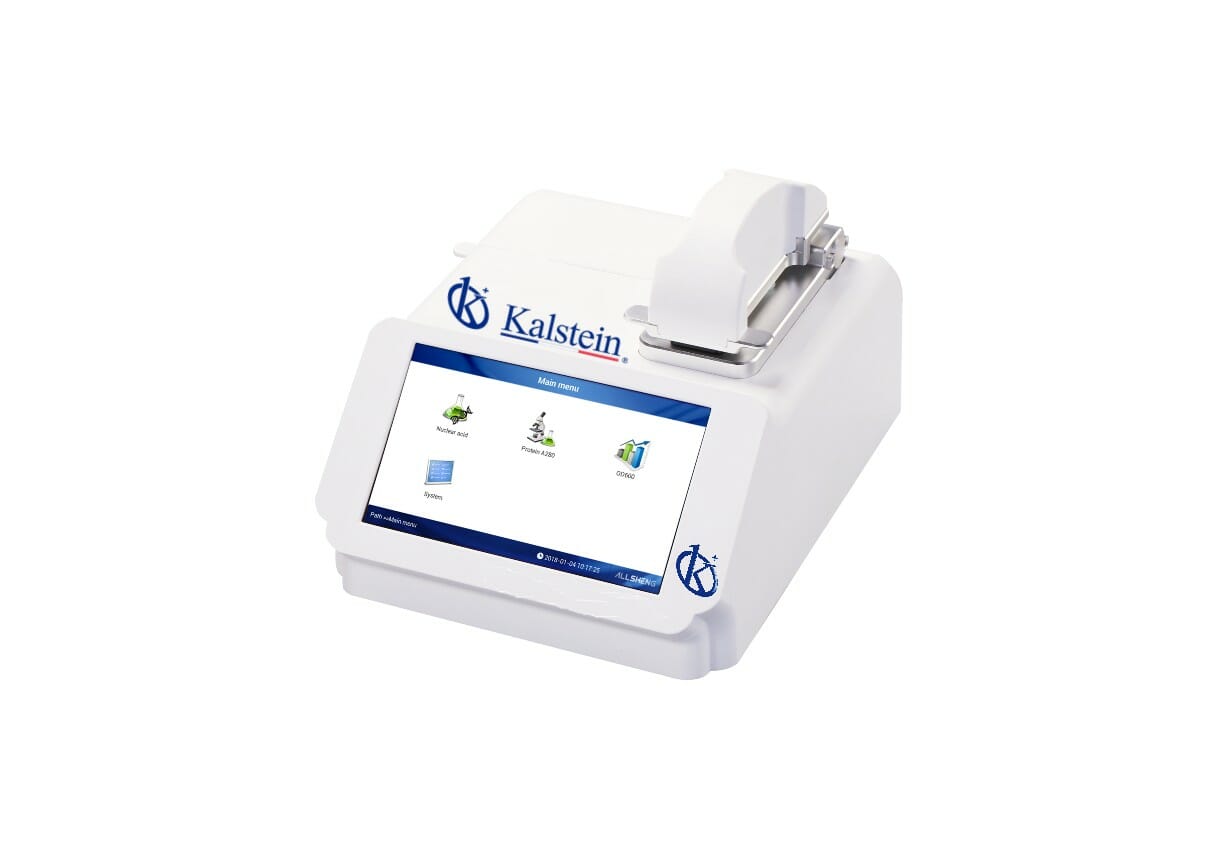

The Micro-Spectrophotometer YR06034 is an advanced ultra-micro nucleic acid analyzer designed for precise detection of the concentration and purity of DNA and RNA. With its capability to handle minimal sample sizes of just 1 to 2 μl, it eliminates the need for colorizing cups or capillary accessories. Featuring a user-friendly Android interface and a vibrant 7-inch touch screen, it simplifies the analysis process, allowing scientists and lab technicians to perform efficient measurements directly on the template. This versatile tool supports quick sample recovery and easy data management through its built-in printer and USB output, making it an essential device for modern laboratories.
Price in the Market
The market for micro-spectrophotometers like the YR06034 generally ranges from $5600 to $6400 USD. This pricing reflects the advanced technology and high precision of the instrument, making it a valuable investment for laboratories that demand accurate nucleic acid quantification and analysis.
Frequently Asked Questions
- What types of samples can be analyzed with this spectrophotometer? It is designed to analyze nucleic acids and proteins, measuring concentrations and purities efficiently.
- Is there any special software required to operate the device? The spectrophotometer operates on an Android system with a simplified interface, eliminating the need for additional computers or software.
- How is the data from the spectrophotometer stored or transferred? Data can be printed directly from the device, or transferred via USB or SD-RAM card.
Advantages and Disadvantages
The Micro-Spectrophotometer YR06034 offers several advantages, such as a minimal sample requirement, rapid analysis, and an intuitive user interface. Its LED light source ensures long-lasting operation. However, some users might find the reliance on an Android system a limitation if they prefer traditional PC-connected systems.
Product Usage in the Field
In practical scenarios, the YR06034 is an invaluable tool in molecular biology labs and research institutions. It’s used for determining nucleic acid and protein concentrations, which are crucial steps in quantifying genetic material for further analysis, such as PCR and sequencing applications. The device’s efficiency in delivering fast measurements supports high-throughput laboratory workflows.
Recommendations
For optimal performance, laboratories are advised to regularly calibrate the YR06034 and follow the maintenance guidelines provided in the user manual. Proper care ensures longevity and consistent precision in measurements. Users should also become familiar with the software interface to fully leverage all functionalities of the spectrophotometer.
Features
- Ultra-micro nucleic acid analyzer for DNA and RNA
- Minimal sample size requirement of 1 to 2 μl
- Android OS with 7-inch touchscreen interface
- Long-life LED light source
- OD600 function for bacterial concentration detection
- Data printing and USB/SD-RAM output
Technical Specifications
| Model | YR06034 |
| Wavelength range | 260 nm, 280 nm |
| Minimum sample size | 1-2.0 μl |
| Path length | 0.5 mm |
| Light source | LED |
| Detector type | UV-sillion photocell |
| Spectral resolution | ≤8 nm |
| Absorbance precision | 0.005Abs |
| Absorbance accuracy | 2 %（7.332Abs at 260 nm) |
| Absorbance range | 0.2 – 50 A |
| Detects nucleic acid up to | 10-2500 ng/μl（dsDNA） |
| Measurement time | <6 S |
| Data output | USB |
| Sample pedestal material | Aluminum alloy and Quartz fiber |
| Operating voltage | DC 24 V 2 A |
| Operating power | 25 W |
| Standby power | 5 W |
| Dimension (W×D×H) mm | 208×280×186 |
| Weight | 3.6 kg |
| Software compatibility | Android system |
| Light source | LED |
| Wavelength range | 600±8 nm |
| Abosorbance range | 0-4 A |
