Description

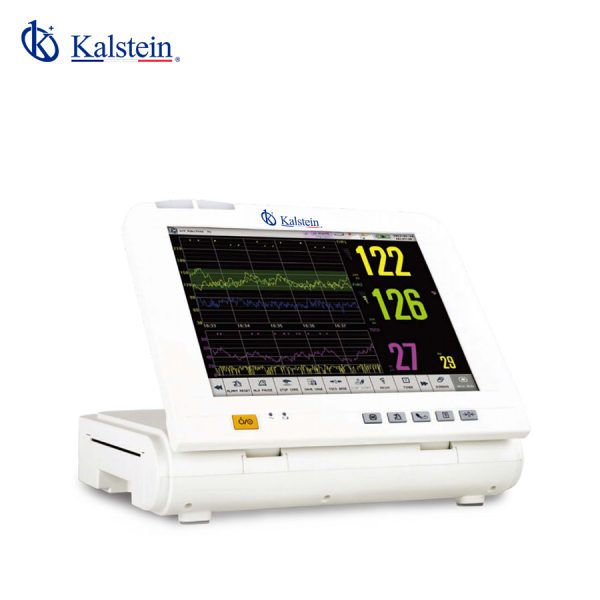

Fetal Monitor YR02190C is a state-of-the-art medical device designed to provide accurate fetal monitoring with ease. With its 12.1 inches color TFT touch screen, the monitor offers a clear and intuitive user interface. It supports up to six waveforms, allowing healthcare professionals to track essential fetal parameters. The monitor comes equipped with standard configurations including FHR1, TOCO, FM, and a recorder, with optional setups for advanced use. Its rechargeable lithium-ion battery ensures continuous operation for up to four hours, making it ideal for busy clinical settings.
Market Price
The average market price for fetal monitors, such as the Fetal Monitor YR02190C, ranges from $2,000 to $2,800. This range offers an excellent balance between advanced features and cost-effectiveness. Prices may vary based on specific configurations and additional features selected.
Frequently Asked Questions
Q: What are the main features of the Fetal Monitor YR02190C?
A: It includes a 12.1-inch touch screen, FHR1, TOCO, FM, a recorder, and options like a fetal stimulator and FHR2.
Q: How long does the battery last?
A: The monitor provides up to four hours of continuous use on a full charge.
Advantages and Disadvantages
Advantages:
1. Intuitive touch screen interface.
2. Long battery life.
3. Supports multiple waveforms for comprehensive monitoring.
Disadvantages:
1. Initial setup may require training.
2. The price may be high for small clinics.
Product Use in the Field
The Fetal Monitor YR02190C is widely used in hospitals and clinics for prenatal monitoring. It helps healthcare providers track fetal heart rate, contractions, and fetal movements, ensuring timely intervention when necessary. Its portability allows for use at the bedside or in specialized monitoring rooms.
Recommendations
To maximize the utility of the Fetal Monitor YR02190C, ensure regular software updates and staff training. Regular calibration and maintenance can prolong the device’s lifespan, ensuring it provides reliable readings for years to come.
Features
- 12.1 inches color TFT touch screen
- Resolution: 800*600
- Trace: Up to 6 waveforms
- Standard Configuration: FHR1, TOCO, FM, Recorder
- Optional Configuration: Fetal Stimulator, FHR2, Trolley
- Rechargeable lithium-ion battery
- Battery capacity: 4400mAh
- Battery backup: 4 hours continuous working
Technical Specifications
| Model | YR02190C |
| FHR | |
| Strength | < 5mW/cm2 |
| Working Frequency | 1.0MHz |
| Signal Processing | Special DSP system and modern recognition |
| Measurement Range | 50～240bpm |
| Alarm Range | High Limit: 160, 170, 180, 190 bpm Low Limit: 90, 100, 110, 120 bpm |
| Maximum Audio Output Power | 1.5 Watt |
| TOCO | |
| TOCO Range | 0-100% |
| Resolution | 1% |
| Zero Mode | Auto/Manual |
| Non-linear error | ±8% |
| AUTO FETAL MOVEMENT (AFM) | |
| Technique | Pluse Doppler ultrasound |
| Measurement range | 0%-100% |
| Resolution | 1% |
| RECORDER | |
| Type | Built-in; thermal array |
| Channel | 6 channel waveforms |
| Mode | Fast, real time |
| Speed | 1/2/3cm/min selectable, 25mm/s(review) |
| Record width | 150mm |
| ENVIRONMENT | |
| Working Temperature | 0-40°C |
| Humidity | 15%-80% |
| Power Supply | 100-240V~, 50/60Hz±1Hz |
| Battery Type: | Rechargeable & Lithium-ion battery |
| Battery Capacity | 4400mAh |
| Battery Recharging Time | Maximum 5.5 hours for charging; |
| Battery backup | 4 hours for continuous working |
| Display | 12.1″ color TFT touch screen |
| Resolution | 800*600 |
| Trace | 6 Waveforms (Max) |
