Description
- LED display 15 ‘multilingual feature
- Model CF + B simultaneously, PDI, DPDI, TDI, TSI, trapezoidal supports images, virtual convex array and convex array expansion.
- Anatomy M, Color Mode M
- 4D, CW and 192 function elements
- Image complex model
- Automatic measurement of IMT, measuring endometrial automatic, automatic quality assessment
- PW duplex and triplex can be freely changed
- Automatic Tracking measurements PW
- Multiple measures of birth
- DICIM 3.0 protocol built, you can print and send via DICOM 3.0
- They can be inserted integrated workstations, databases, reports images, curves fetal development, scoring standards, etc.
- Online care function, instruct the user how to operate in the next step.
- The printed area is adjustable, it can be images, reports or images + reports, etc.
- Control user rights, you can set the password.
- Pressure Index
Technical description
| Model | YR05152 | |||
| Physical specifications | ||||
| team size | 37.5 x 36 x 75 | |||
|
Weight equipment |
5.5 kg | |||
| packing size | 49 x 27 x 49 | |||
| Shipping Weight |
10kg |
|||
| Connectivity / Media / peripherals | ||||
|
Transducer ports |
two | |||
| USB ports | two | |||
| HDD | 64GB (SSD) 120G / 200GB SSD (optional) | |||
| Printing area | Report image Report image + | |||
| Ethernet port | 2 (100Mb / 1000Mb) | |||
| external display | VGA HDMI | |||
| The printer (optional) |
USB Cable Digital Printer Digital Laser Printer B / W Thermal Printer |
|||
| Hardware specifications of the LED monitor | ||||
|
Size (diagonal) |
fifteen” | |||
| Contrast ratio | 800: 01: 00 | |||
| Resolution | 1024 * 768 pixels | |||
| Brightness | 230 cd / m2 | |||
| Depth of color | 24bit | |||
| Rotate angle |
± 90 ° |
|||
| Gray Levels | 256 | |||
| Cinema / Image Memory | ||||
|
Memory cinema |
Of 1200 (max) | |||
| Cinema exam speed. |
1 2 4 8 |
|||
| Cinema examination loop | Yes | |||
| Film Capture Function | Yes | |||
| DICOM connectivity | DICOM3.0 A. | |||
| 4D Software | Built-in 4D Software | |||
| Storage | Storage format: PNG AVI BMP JPEG DICOM
Video format export: AVI Export image Format: PNG JPEG BMP DICOM USB Flash Drive |
|||
|
General performance |
Digital broadband |
12288 channels | ||
| Haz-ex. | Re-programmable | |||
|
Transmit tension |
Adjustable (15 steps) | |||
| Haz-ex-frequency range |
1 ~ 40 MHz |
|||

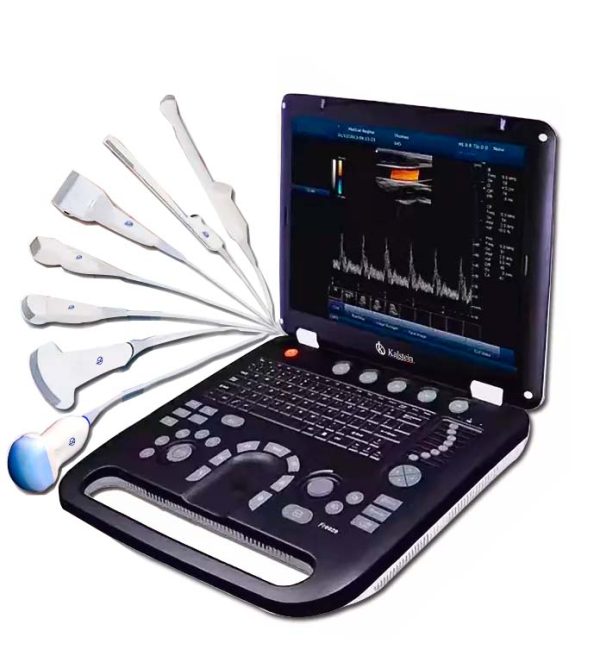

| transducers | ||||
|
Probe |
Convex probe | Linear probe assembly | Within the cavity of the probe | Micro-convex probe |
| Frequency | Central 3.5MHz | Central 7.5MHz | Central 6.5 MHz | Central 4.0 MHz |
| (2.0 MHZ to 10.0 MHZ) | (2.0 MHZ to 10.0 MHZ) | (2.0 MHZ to 10.0 MHZ) | (2.0 MHZ to 10.0 MHZ) | |
| He passed | 0.516mm | 0.352mm | 0.216mm | |
| Radio | 60mm | N/A | 10mm | |
| The elements | 96 | 96 | 96 | |
