Description

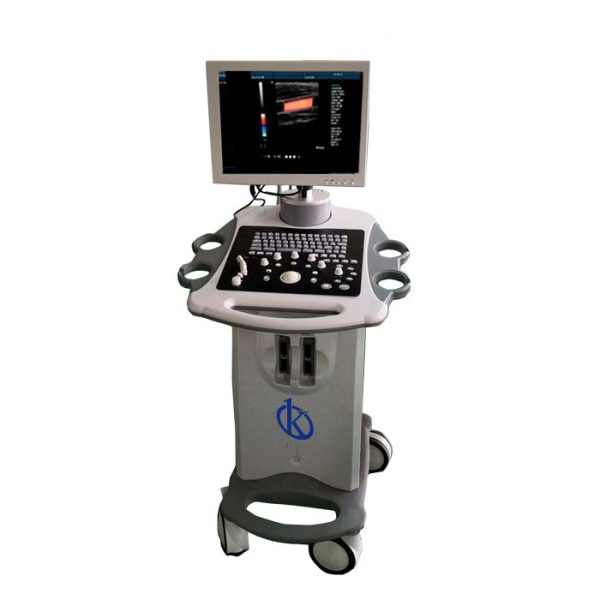

- Large 15-inch color LED display True Doppler function USB ports and VGA port and 2 probe connectors.
- Application: Abdomen/Cardiac/Gynecology/Urology/Andrology/Small Parts/Vascular/Pediatric/Musculoskeletal
- Picture modes: B 2B… 4B MB/C/B/D/B/C/D/B/CFM/D PDI Dual Color Simultaneous Color 2D/Composite Color PW Duplex/Triplex… CFM… CDE CD Directional PD
- Color Doppler based on computer with Windows system, which can be connected with any printer of any brand. The printed area is adjustable, which can be images, reports, or images + reports, etc.
- Integrated DICOM 3.0 protocol
- Multi-language function: English, Chinese, Spanish and Portuguese, Russian, Arabic, French, Vietnamese, Indonesian, German, Persian, Thai
Technical description
| Model | YR05153 | |
| Physical specifications | ||
| Packing Size | 96cm×75cm×135cm | |
| Packing Weight |
165kg |
|
| Connectivity/Media/Peripherals | ||
|
Port Transducer |
two | |
| USB ports | two | |
| 128 hard drive |
128GB (SSD) 120G/200GB SSD (optional) |
|
| Printing area | Image, report, image + report | |
| Ethernet port | 2(100Mb/1000Mb) | |
| External screen | hdmi-vga | |
| printer (optional) | USB Printer, Digital Laser Printer, Digital Thermal Printer B/W | |
| Hardware specifications of the LED monitor | ||
|
Size |
fifteen” | |
| Contrast Ratio | 800: 01: 00 | |
| Resolution | 1024 * 768 pixels | |
| Brightness | 230 cd / m2 | |
| Depth of color | 24bit | |
| Rotate angle | ± 90 ° | |
| Gray Levels | 256 | |
|
General performance |
Digital broadband | 12288 channels |
| Haz-ex. | Re-programmable | |
| Transmit tension | Adjustable (15 steps) | |
|
Beam-frequency range above |
1 ~ 40 MHz | |
