Description

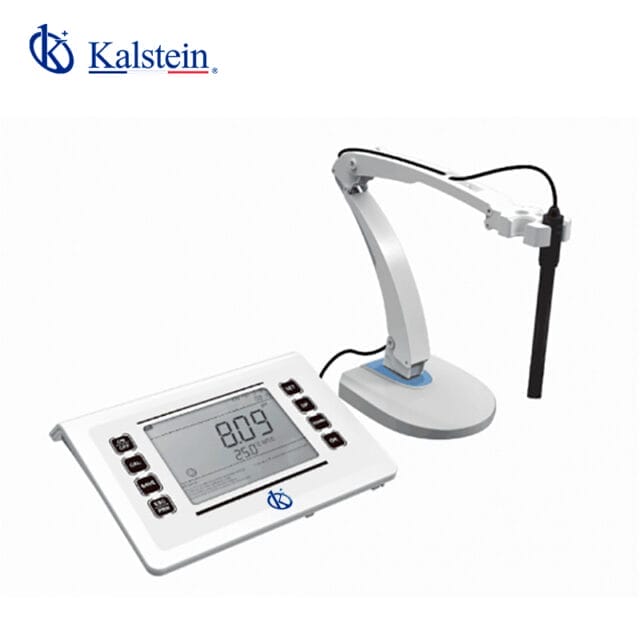

The Benchtop Conductivity / TDS / Salinity / Conductivity Ash Meter YR01827 is designed to provide precise and reliable measurements in various applications. With a user-friendly 6.5-inch LED screen, this advanced meter incorporates a microprocessor chip, delivering intelligent functions like automatic calibration, data storage, USB output, and even wireless Bluetooth printing. Ideal for laboratory and field environments, the YR01827 excels in measuring conductivity, TDS, salinity, and resistivity with exceptional accuracy. Its robust electrode status display ensures trustworthy operation and long-lasting performance.
Market Price
When it comes to purchasing a benchtop conductivity meter, prices can range from $400 to $1,200 depending on the brand and specifications. The YR01827 offers competitive pricing given its advanced features and versatility, making it an excellent investment for any lab or testing facility.
Frequently Asked Questions
How does the automatic calibration work? The meter automatically recognizes up to 25 buffers, simplifying the calibration process.
Does it support data transfer to a computer? Yes, data can be easily transferred via USB, and the device supports wireless Bluetooth printing.
What is its data storage capacity? The meter can store up to 1,000 sets of test data, which can be exported to a USB and opened with Excel.
Advantages and Disadvantages
Advantages: The YR01827 is versatile with its ability to measure multiple parameters including conductivity, TDS, salinity, and resistivity. Its advanced technology ensures precision and ease of use.
Disadvantages: While feature-rich, it may have a steeper learning curve for beginners unfamiliar with multifunctional meters.
Field Use
In real-world scenarios, the YR01827 is optimal for environments where precise conductivity measurements are crucial. Whether it’s for quality control in manufacturing or environmental testing, its robust design and high accuracy make it a practical choice.
Recommendations
To maximize the usage of the YR01827, ensure regular maintenance of the electrodes and keep the firmware updated. Utilize the different measuring modes to cover a wide range of applications seamlessly.
Features
- Intelligent automatic calibration and ATC
- Multiple measuring options: conductivity, TDS, salinity, resistivity
- Data storage for 1000 sets with Excel compatibility
- Bluetooth and USB connectivity for flexible data management
- Durable, light-touch keys and advanced electrode status display
Technical Specifications
| Model | YR01827 | |
|
pH
|
Measuring range | (-2.00 ~ 20.00)pH |
| Resolution | 0.1/0.01 pH | |
| Accuracy | ±0.02pH | |
| Auto calibration | 1, 2, 3 point | |
| Buffer | Europe & USA, NIST, China standards | |
| Input current | ≤2×10 -12A | |
| Input impedance | ≥1×10 12Ω | |
| Stability | ±0.01 pH/3h | |
| Temp. compensation | (0 ~ 100)°C, auto or manual | |
|
mV ORP
|
Measuring range | -1999.9mV ~ 0 ~ 1999.9mV |
| Resolution | 1 mV | |
| Accuracy | ±0.1% FS | |
|
Cond.
|
Measuring range
|
Conductivity: |
| (0.00~20.00)μS/cm, (20.0~200.0)μS/cm | ||
| (200~2000)μS/cm, (2.00~20.00)mS/cm | ||
| (20.0~200.0)mS/cm | ||
| (200~2000)mS/cm (K=10) | ||
| TDS: (0 ~ 100)g/L | ||
| Salinity: (0 ~ 100)ppt | ||
| Resistivity: (0 ~ 100)MΩ·cm | ||
| Resolution | 0.01/0.1/1μS/cm, 0.01/0.1/1mS/cm | |
| Accuracy Electrode: | ±0.5% FS, Meter: ±0.80% FS | |
| Temp. compensation | (0 ~ 100)°C, auto Electrode constant 0.1/1/10 cm -1 | |
| Reference Temp. | 25°C, 20°C, 18°C | |
|
Temp.
|
Measuring range | (0 ~ 100)°C |
| Resolution | 0.1°C | |
| Accuracy | 5 ~ 60°C: ±0.4°C Others: ±0.8°C | |
|
Other
|
Display | 6.5-inch LCD screen Data storage 1000 sets Power DC 12V/1A |
| Output | USB | |
| Ambient Temp. | 5 ~ 40 °C | |
| Ambient Humidity | ≤85% | |
| IP grade | IP54 | |
| Dimensions/N.W. | 215×170×37mm/600g | |
| Shipping Size/G.W. | 470x430x72mm/3kg | |
