Technical Performance and Security of the Digital Biological Microscope YR05785
Product Description

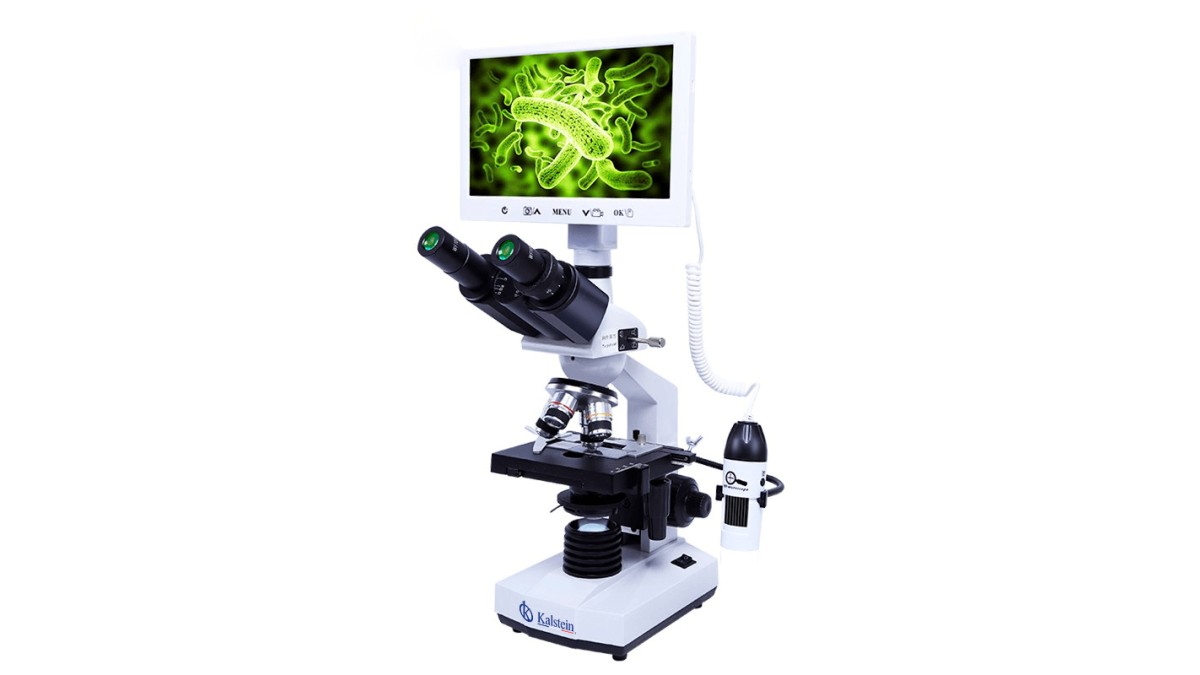

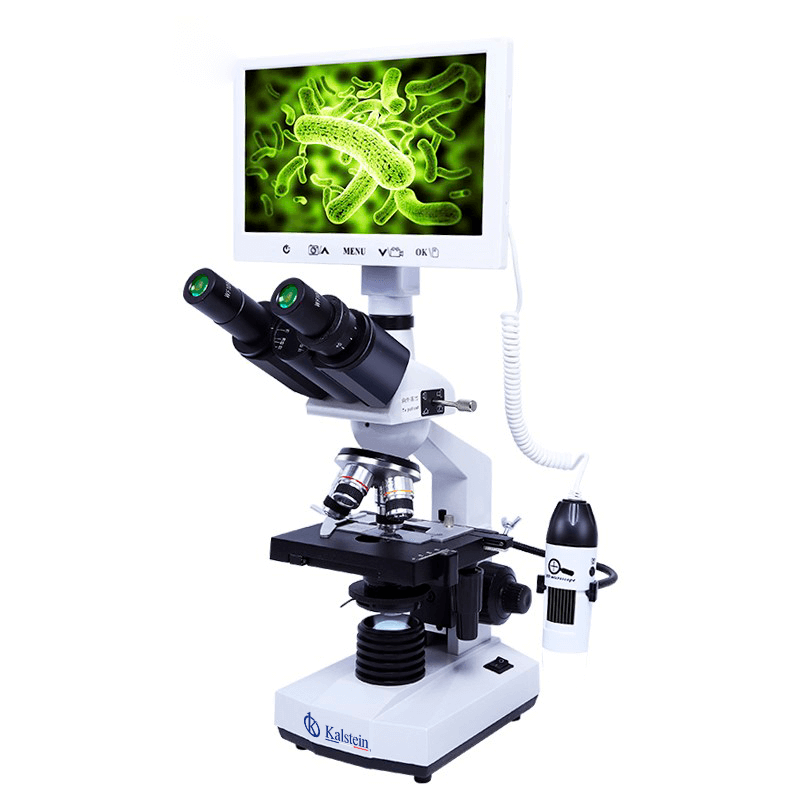

The Digital Biological Microscope YR05785 offers exceptional optical performance and innovative features tailored for both educational and professional environments. This model boasts a teaching head with WF10x and WF16x eyepieces, providing a comfortable viewing experience. It includes a quadruple revolving nosepiece with achromatic objectives of 4x, 10x, 40x, and 100x, allowing users to switch between magnifications seamlessly.
The microscope is equipped with a 7" LCD screen that supports a resolution of 800x480 pixels, enhancing visibility during examinations. With a CMOS 1/2.75" sensor, it delivers high-resolution imaging at 2.0M and 1920x1080p video output at 30 frames per second. Users can easily connect to a PC or mobile devices via a USB interface.
The mechanical stage measures 115x125 mm and allows for precise specimen positioning. The system features coaxial focusing with coarse and fine adjustments, providing a comprehensive user experience. An LED light source with adjustable brightness ensures optimal illumination for various specimens.
The microscope comes with a comprehensive experimentation kit, including 10 prepared slides and various accessories like a mobile phone connector, power adapter, power cable, USB cable, and software CD for measurement analysis compatible with both Windows and iMac systems.
| Feature | YR05784 | YR05785 (Current Model) | YR05786 | YR05783 |
|---|---|---|---|---|
| Teaching Head | Yes (45°+90° inclined, 360° rotatable) | Yes (45°+90° inclined, 360° rotatable) | No | No |
| Binocular Head | Inclined 30°, rotatable 360° | No | No | No |
| Trinocular Head | Inclined 30°, rotatable 360° | No | Yes | Yes |
| LCD Display | 7” IPS | 7” IPS (800x480) | No | No |
| Camera Sensor | 1/2.75” CMOS | 1/2.75” CMOS | No | No |
| Resolution | 2.0M (1920x1080p) | 2.0M (1920x1080p) | No | No |
| Output | USB 2.0 | USB 2.0, LCD, PC, or mobile | No | No |
Market Price
The market price for the Digital Biological Microscope YR05785 is approximately $270. This competitive pricing reflects the advanced features and quality that this microscope offers. Considering its robust specifications, the YR05785 is positioned as a cost-effective solution for educational institutions and laboratories seeking high-performance microscopy equipment.
Frequently Asked Questions
What is the maximum magnification of the Digital Biological Microscope YR05785?
The maximum magnification of the YR05785 is 100x, using the 100x oil immersion objective lens, which provides detailed imaging for microscopic specimens.
Can the microscope be connected to a computer?
Yes, the YR05785 features a USB 2.0 output that allows it to be connected to a computer for real-time imaging and data analysis.
Is the microscope suitable for beginners?
Absolutely! The microscope is designed with user-friendly features, making it an excellent choice for beginners in educational settings.
What type of light source does the YR05785 use?
The microscope uses an LED light source that is adjustable, providing a flexible illumination option for various specimen types.
Does the microscope come with any prepared slides?
Yes, the YR05785 comes with 10 prepared slides, allowing users to start experimenting and observing immediately upon setup.
What accessories are included with the Digital Biological Microscope YR05785?
Included accessories with the YR05785 are 10 prepared slides, an experimentation kit, a mobile phone connector, a power adapter, a power cable, a USB cable, and a software CD.
Pros and Cons
Pros
- High-resolution imaging capabilities (1920x1080p).
- User-friendly design suitable for educational purposes.
- Portable with a compact design and carrying case.
- Versatile connectivity options (USB and LCD output).
- Comprehensive experimentation kit included.
Cons
- Limited to a maximum magnification of 100x.
- The microscope's performance may depend on the quality of the prepared slides.
Field Usage
The Digital Biological Microscope YR05785 is ideal for various applications in educational institutions, research laboratories, and medical facilities. Its high-resolution imaging capabilities make it suitable for studying biological specimens, such as cells and tissues, in detail. Moreover, the design allows for easy transport, making it a viable option for field studies and portable laboratory setups.
Students and educators can benefit from its straightforward controls, which facilitate learning and teaching processes in biology and other scientific disciplines. Additionally, the microscope is equipped with software compatibility that enables data handling and measurement analysis, essential features for research activities.
Recommendations
For those interested in purchasing the Digital Biological Microscope YR05785, it is recommended to consider the following:
- Evaluate your specific needs for fieldwork or laboratory use to ensure this model meets your requirements.
- Take advantage of the experimentation kit included to maximize learning opportunities.
- Utilize the software for enhanced imaging analysis, especially for academic or research purposes.
For more information or to request a quote on the Digital Biological Microscope YR05785, feel free to reach out to us. Our team is ready to assist you in making the best choice for your scientific needs.
