Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786
Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.

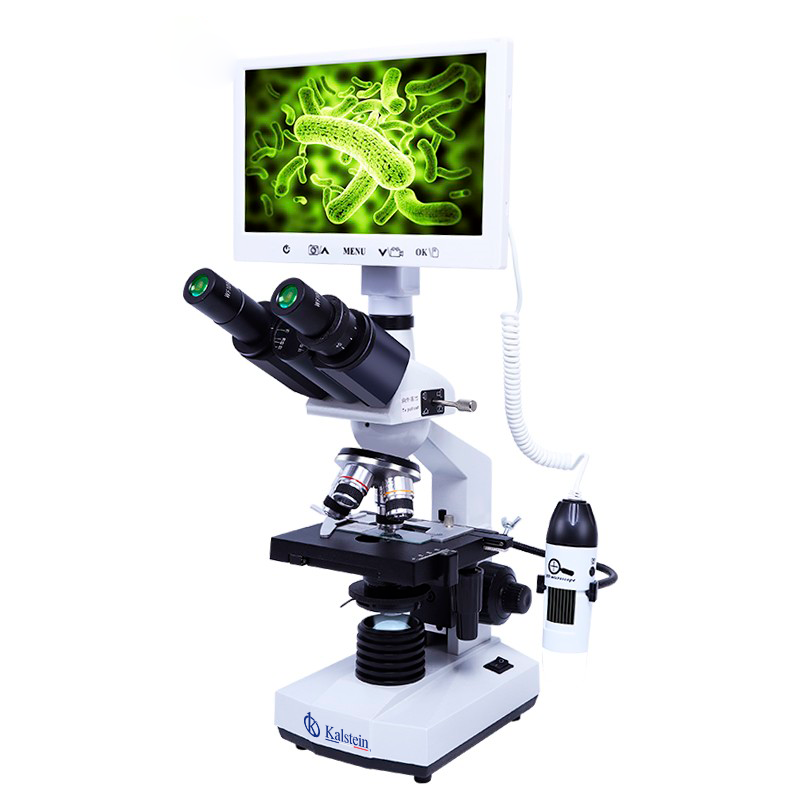

The Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786 is a sophisticated tool designed for both educational and professional settings. It features a teaching head with dual lenses (WF10x, WF16x Quarduple, Ach. 4x10x40x100x) and a trinocular head that allows for comprehensive observation. With a 7" LCD screen offering 1920x1080p resolution and LED adjustable brightness, this microscope ensures clear and precise viewing. It comes complete with a mechanical stage, coaxial focusing system, 10 prepared slides, and a versatile experiment kit, all packed conveniently in a hand-carry case.
Market Price
The Biological + USB Portable Dual Lens Digital Microscope is priced competitively in the market, generally ranging from $800 to $1600. This variation is due to factors such as regional availability and additional features or accessories that may be included by suppliers. For the exact price and a personalized quotation, you can access the Kalstein Plus platform.
Frequently Asked Questions
What operating systems are compatible with the measuring software? The measuring software is compatible with both Windows and iMac systems.

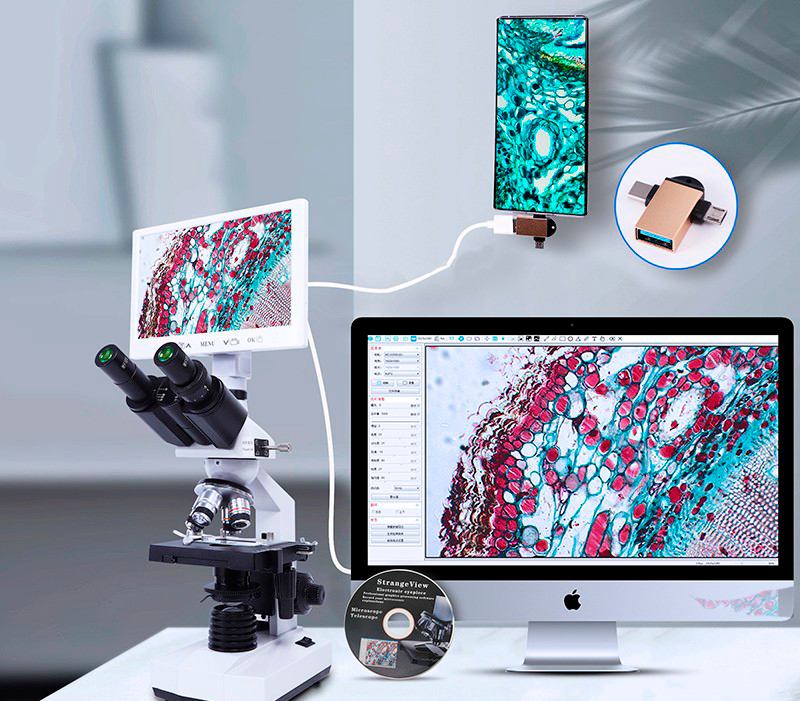

How does the USB output function work? The microscope can export images and video to LCD screens, PCs, or mobile phones via a USB 2.0 connection.
Advantages and Disadvantages
Advantages: The microscope offers high resolution with a large LCD screen, easy portability with its hand-carry case, and versatility due to dual USB and storage capabilities.
Disadvantages: The limitation might be the maximum 32GB storage, which requires users to frequently manage their saved data.
Field Use
The Biological + USB Portable Dual Lens Digital Microscope is ideal for classrooms, laboratories, and field studies. Its portability allows for easy transportation between locations, and its robust construction ensures durability in various settings.
Recommendations
For optimal performance, ensure the microscope is regularly cleaned and the lenses are kept dust-free. Make use of the adjustable settings for contrast and brightness to suit different lighting conditions and specimen types.
Features
- Teaching Head, WF10x, WF16x, Quadruple, Ach. 4x10x40x100x
- Mechanical Stage 115x125mm, Coaxial Focusing

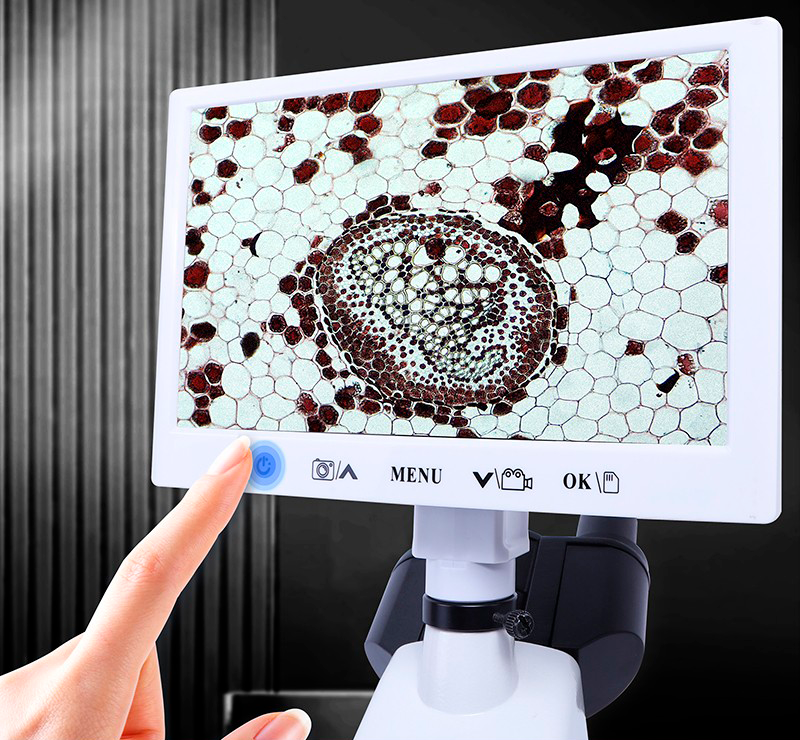

- 7" LCD 2.0M, 30fps
- USB Output, Measuring Software
- Pack In Hand Carry Case
Technical Specifications
| Model | YR05784 | YR05785 | YR05786 | YR05783 | |
| Head | Teaching Head, 45°+90° Inclined, 360° Rotatable | o | o | ||
| Binocular Head, 30° Inclined, 360° Rotatable | |||||
| Trinocular Head, 30° Inclined, 360° Rotatable | o | o | |||
| LCD Camera | 7"IPS LCD Screen Resolution 800x480 | ||||
| Sensor | 1/2.75"CMOS | ||||
| Resolution | 2.0M 1920x1080p, With 0.3x C-Mount | ||||
| Pixel Size | 2.8x2.8um | ||||
| Frame Rate | 30 fps | ||||
| Output | USB 2.0, Output to LCD, PC or Mobile Phone | ||||
| Power | DC5V/2A, Power Port 3.5/1.35 DC | ||||
| Storage | Micro SD Card Slot, Support Class 10 Max 32G | ||||
| LCD Menu | One Key Switch Image From Main Camera & Hand-held Camera | ||||
| One Key Take Photo, Video, Record, Save to SD Card | |||||
| Set Color, Contrast, White Balance Auto/Manual Adjust | |||||
| Set Photo/ Video Resolution Adjust, Mic On/Off to Record Voice With Video | |||||
| Set Date, Time | |||||
| Choose Language: Chinese, Traditional Chinese, English, Japanese, French, German, Korean, Russian, Italian, Portuguese, Spanish, Arabic | |||||
| Playback Photo, Video | |||||
| PC Software | CD With Measuring Software Strange View, Support Win/iMac Computer, Support Language Chinese, English, Russian, Ukrainian | ||||

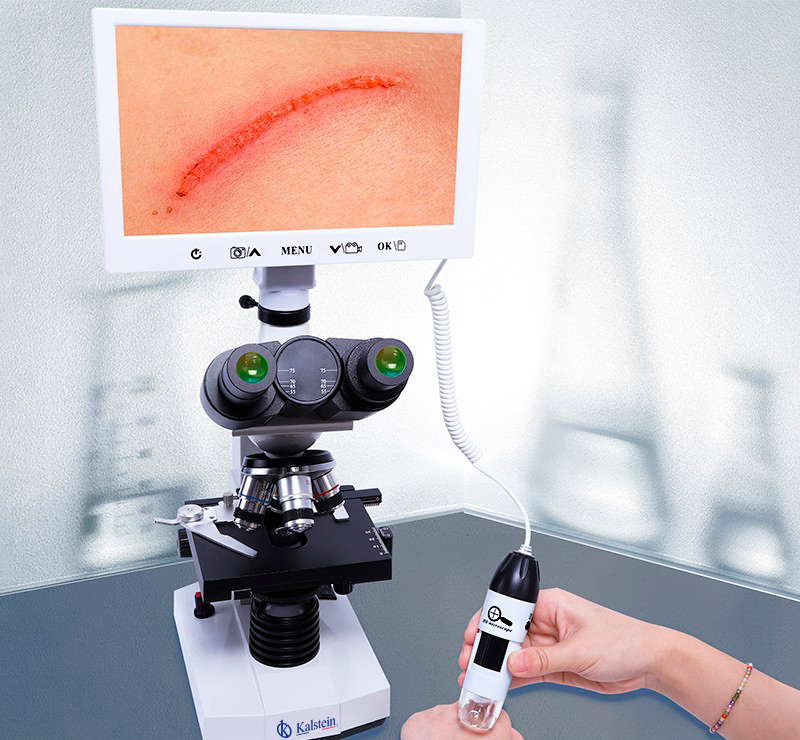

| Hand-held | USB Portable Digital Microscope 1.3M, 1.5x-25x | - | o | - | o |
| Eyepiece | WF10x, WF16x | ||||
| Nosepiece | Quadruple Nosepiece, Ball Bearing Inner Locating | ||||
| Objective | Achromatic 4x,10x,40x(s), 100x(s, oil) | ||||
| Working Stage | Double Layer Mechanical Stage 115*125mm | ||||
| Focusing | Coaxial Coarse & Fine Focus Knob, Coarse Focusing Range 20mm | ||||
| Condenser | Abbe Condenser N.A.1.25, With Iris Diaphragm Filter | ||||
| Light Source | LED, Brightness Adjustable | ||||
| Accessory | Prepared Slide 10pcs in Box, | ||||
| Experiment Kit, | |||||
| Mobile Phone Connector | |||||
| Power Adapter | |||||
| Power Cord | |||||
| USB Cable | |||||
| Software CD | |||||
| Packing | Hand Carry Box + Master Carton | ||||
Technical specifications
| Weight | 5 kg |
|---|---|
| Manufacturer | Kalstein |
Image gallery
Video Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786
Frequently asked questions
How to know the prices of Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786?
To know the price of Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786, please send us an email with your request through the contact form AQUI.
What are the delivery times for Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
