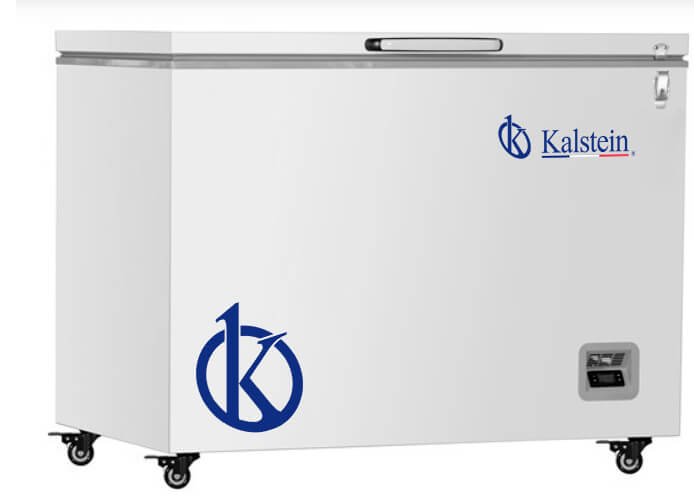

Understanding the Operating Principle and Scientific Foundation of the YR05103 Horizontal Freezer
The YR05103 horizontal freezer represents a pinnacle in refrigeration technology, offering precise temperature control and environmental safety. This article delves into the operating principles and scientific foundations underlying the YR05103, providing a comprehensive understanding for operators and technicians.
Overview of the YR05103 Horizontal Freezer
The YR05103 horizontal freezer is designed for stability and safety, utilizing a microprocessor for temperature control. The adjustable temperature range spans from +30°C to -40°C, with a focus on maintaining consistent conditions that are essential for various applications. This model employs environmentally friendly refrigerants, ensuring compliance with modern environmental standards.
Operating Principle of the YR05103
The YR05103 operates based on a cycle of refrigeration that stems from the principles of thermodynamics. The essential concept is that heat is absorbed from the contents of the freezer and expelled to the environment, maintaining a lower internal temperature. This process involves the following key components:
- Evaporator: This component absorbs heat from the interior, causing the refrigerant to evaporate and cool the air surrounding it.
- Compressor: The compressor, which in the YR05103 is a CUBIGEL model, compresses the refrigerant gas, increasing its pressure and temperature.
- Condenser: Located outside the freezer, the condenser cools the refrigerant gas, condensing it back into a liquid state by releasing heat to the outside environment.
- Expansion Valve: This component reduces the pressure of the refrigerant, allowing it to expand and cool before entering the evaporator again.
This cyclic process effectively maintains the desired low temperatures within the freezer.
Key Specifications of the YR05103
| Specification | Details |
|---|---|
| Model | YR05103 |
| Cooling Method | Direct Cooling |
| Refrigerant | R290 |
| Temperature Range | -10 to -40 °C |
| Energy Consumption | 1.68 kWh / 23h |
| Noise Level | 52 dB |
| Power Supply | 220V / 50Hz |
| Dimensions (WxDxH) | 1218 x 840 x 940 mm |
Scientific Foundations: Thermodynamics in Refrigeration
The refrigeration process utilized in the YR05103 is rooted in the laws of thermodynamics, specifically the first and second laws. The first law asserts that energy cannot be created or destroyed but can change forms. In refrigeration, this is seen as the energy absorbed from the internal space is transformed into a different form and expelled outside.
The second law addresses the direction of heat transfer, which naturally flows from hot to cold. The YR05103 counters this by using mechanical work (via the compressor) to remove heat from the interior, effectively cooling it.
Environmental Considerations and Refrigerant Choice
One of the standout features of the YR05103 is its use of R290 refrigerant, a hydrocarbon that is both efficient and environmentally friendly. Compared to traditional refrigerants that may contain CFCs and HCFCs, R290 has a significantly lower global warming potential (GWP). This choice aligns with global environmental standards and regulations, positioning the YR05103 as a responsible choice for modern laboratories and facilities.
Safety Features of the YR05103
The YR05103 is equipped with multiple safety features designed to protect both the equipment and the contents stored within. Key safety mechanisms include:
- Temperature Alarms: Alerts for both high and low temperature thresholds ensure that any deviation from set parameters is immediately communicated.
- Power Failure Protection: In the event of a power failure, the YR05103 has protocols in place that prevent damage caused by high current during simultaneous restarts.
- Visual and Audible Alarms: These alarms provide immediate notification in case of system malfunctions, ensuring swift corrective action can be taken.
Frequently Asked Questions
What types of applications is the YR05103 suitable for?
The YR05103 is ideal for various applications, including clinical laboratories, pharmaceutical storage, and industrial use where precise temperature control is critical.
How do I maintain the YR05103 for optimal performance?
Regular maintenance includes cleaning the condenser coils, checking the seal integrity of the door, and ensuring that the temperature sensors are calibrated properly.
What is the typical lifespan of the YR05103 freezer?
With proper maintenance, the YR05103 can have an average lifespan of 10 to 15 years. Regular servicing and adherence to operational guidelines can extend its longevity.
How does the energy consumption of the YR05103 compare to other models?
The energy consumption of the YR05103, at 1.68 kWh per 23 hours, is competitive with other models in its class, especially considering its high performance and efficiency.
What safety features are included in the YR05103?
The YR05103 includes multiple safety alarms for temperature irregularities, power failure safeguards, and audible/visual alerts for enhanced operational safety.
How do I set the temperature on the YR05103?
The temperature can be adjusted using the microprocessor control panel, which allows for precise settings within the specified range of +30°C to -40°C.
Can the YR05103 be used in ambient temperatures outside its specified range?
It is not advisable to operate the YR05103 outside its specified ambient temperature range of 10°C to 32°C, as this may affect performance and longevity.
