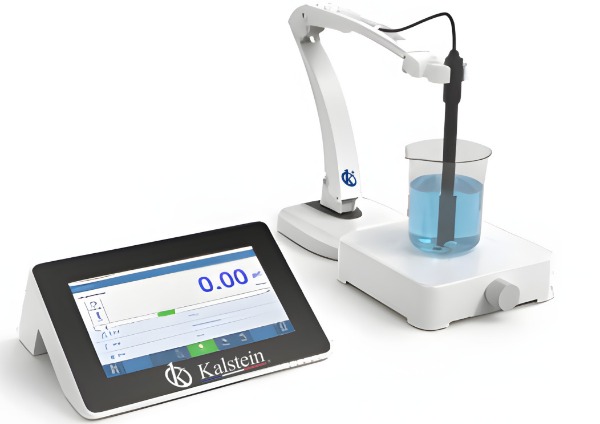

Understanding the Operating Principle and Scientific Basis of the YR06616 pH Meter
The YR06616 pH Meter is a multi-parameter device designed for high precision in laboratories and various industrial applications. Understanding the scientific principles that govern its operation is essential for effective usage, ensuring accurate readings of conductivity, TDS, salinity, resistivity, and temperature.
Scientific Principles Behind the YR06616
The YR06616 operates on fundamental principles of electrochemistry. It utilizes a combination of sensors that detect the ion concentration in solutions, translating that into measurable outputs. The primary working mechanism is based on the Nernst equation, which relates the voltage of a pH electrode to the concentration of hydrogen ions in the solution. This equation can be expressed as:
E = E0 + (RT/nF) ln([H+])
Where:
- E = electrode potential
- E0 = standard electrode potential
- R = universal gas constant
- T = temperature in Kelvin
- n = number of electrons involved
- F = Faraday's constant
- [H+] = hydrogen ion concentration
This equation is pivotal in understanding how the YR06616 calculates pH levels by determining the potential difference between the reference and measuring electrodes under varied ionic conditions.
Key Design Features and Their Advantages
The YR06616 features a robust design tailored for laboratory and field conditions. One of the standout traits of this device is its large color touchscreen, which enhances usability. This design choice reduces the possibility of operator error during measurements, especially in high-stress environments.
Moreover, the incorporation of automatic temperature compensation (ATC) is vital for ensuring reliability in readings as temperature can significantly affect pH and conductivity measurements. This ensures that users receive readings that are adjusted for the current temperature conditions, maintaining accuracy across various situations.
Technical Specifications of the YR06616
Model | YR06616 |
Measurement Range | Conductivity: 0.000 μS/cm – 2000 mS/cm (K=10), TDS: 0.00 mg/L – 1000 g/L, Salinity: 0 – 80 ppt, Resistivity: 0 – 100 MΩ·cm |
Resolution | 0.001 / 0.01 / 0.1 / 1 μS/cm; 0.001 / 0.01 / 0.1 / 1 mS/cm |
Accuracy | ±0.5 % |
Temperature Compensation | (0 – 100) °C, automatic |
Electrode Constant | 0.1 / 1 / 10 cm⁻¹ |
Data Storage | 2000 sets |
Power Supply | DC 12V / 1A |
Output | USB |
Protection Rating | IP54 |
Dimensions / Net Weight | 215 × 170 × 37 mm / 600 g |
Standard Accessories | Conductivity electrode (K=1), temperature probe, power adapter, manual |
Applications of the YR06616 in Different Sectors
The versatility of the YR06616 allows it to be effectively employed in various sectors. In clinical laboratories, it is used for precise measurement of pH and conductivity in biological samples, ensuring compliance with stringent quality standards.
In food industries, the YR06616 is crucial for ensuring that products meet safety and quality regulations, particularly in assessing water quality used in food processing. Meanwhile, in educational institutions, it serves as an essential teaching tool for students learning about chemistry and laboratory techniques.
Technical Use Cases
- Clinical Applications: Monitoring pH for patient samples, ensuring accurate medical diagnoses.
- Industrial Applications: Water treatment processes, chemical manufacturing quality control.
- Educational Uses: Hands-on training for students in laboratory techniques, allowing for practical chemistry education.
- Environmental Monitoring: Assessing water quality for environmental studies and compliance with regulations.
Common Troubleshooting Tips for the YR06616
Like all precision instruments, the YR06616 may occasionally present issues that require troubleshooting. Below is a guide to common symptoms and their solutions:
| Symptom | Likely Cause | Solution |
|---|---|---|
| Device does not power on | Power supply issue | Check the power adapter and connections. |
| Error code E-03 | Electrode malfunction | Inspect and clean the electrode; ensure correct calibration. |
| Inconsistent readings | Temperature fluctuations or electrode issues | Ensure ATC is functioning; recalibrate the device. |
| Data export issues | USB connection problems | Check USB cable and connection; try a different USB port. |
Frequently Asked Questions
What parameters can the YR06616 measure?
The YR06616 can measure conductivity, TDS, salinity, resistivity, and temperature, integrating multiple functions in a single laboratory instrument.
Is the YR06616 suitable for professional and academic use?
Yes, the YR06616 is designed for laboratories, industries, universities, and research centers, meeting demanding technical requirements and good laboratory practice standards.
Does the YR06616 have temperature compensation features?
Yes, it features automatic temperature compensation across a range of 0 to 100 °C, ensuring precise measurements regardless of thermal variations.
How are measurement data stored and exported with the YR06616?
The device can store up to 2000 sets of data with timestamps, samples, and sensor identification, allowing for automatic USB exportation.
What types of electrodes are compatible with the YR06616?
The YR06616 is compatible with conductivity electrodes having constants K = 0.1, 1, and 10 cm⁻¹, accommodating different measurement ranges and applications.
Does the YR06616 require regular calibrations?
As with all professional measuring equipment, periodic calibrations are recommended to maintain the accuracy and reliability of results.
What are the advantages of using the YR06616?
The YR06616 offers a wide measurement range for conductivity, high accuracy, an intuitive touchscreen interface, and robust data management capabilities, all at a competitive price point.
