Troubleshooting Common Issues with the YR06217 Neonatal LED Phototherapy Unit
The YR06217 Neonatal LED Phototherapy Unit is designed to provide effective treatments for newborns suffering from jaundice. However, like any advanced medical equipment, it can encounter issues that require troubleshooting. This guide is aimed at helping you diagnose and resolve common problems associated with this device to ensure effective phototherapy treatment.
Understanding the YR06217 Neonatal LED Phototherapy Unit

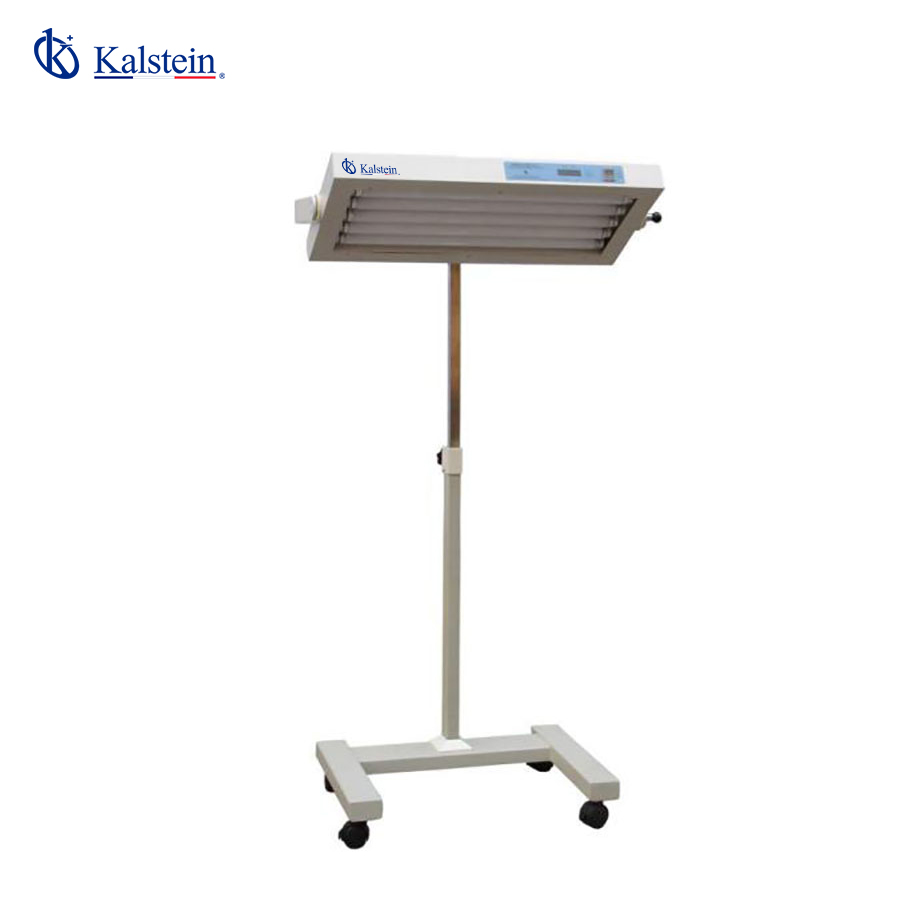

The YR06217 utilizes a blue tube or LED as its light source to deliver phototherapy. A digital LED timer displays the therapy time and total time, essential for monitoring treatment duration. The device features an adjustable elevation ramp, mobile support, and a rotating radiant head that can be angled at 30°, 60°, or 90° for optimal positioning.
Technical Specifications of YR06217
| Specification | Details |
|---|---|
| Model | YR06217 |
| Input Power | <150VA |
| Light Source | Blue Tube/LED Tube |
| Light Source Effective Life | 2,000 / 50,000 hours |
| Wavelength | 400-550 nm |
| Irradiance Treatment Distance | 10~500px |
| Effective Area | 1125px × 600px |
| Bilirubin Total Irradiance Maximum (Ebi Max) | >= 2000μW/cm² |
| In Effective Area Surface | >= 500μW/cm² |
| Average in Effective Area Surface | >= 400μW/cm² |
| Uniformity of Ebi | >0.4 |
| Infrared Radiation in Effective Area | <= 10mW/cm² (760nm<λ≤1400nm) |
| Ultraviolet Radiation in Effective Area | <= 1.0×10-5mW/cm² (180nm<λ≤400nm) |
| Time Display Accuracy | 2h ± 1min |
| Operate Noise | <= 55dB(A) (ambient noise is lower than 40dB(A)) |
| Basic Performance | The equipment total irradiance (Ebi) ≥500μW/cm² |
| Time Display Range | 9999h 59min |
| Adjust Angle | 30°, 60°, 90° |
| Adjust Height | 1100mm~1500mm |
Troubleshooting Common Symptoms
Below are the common symptoms encountered when using the YR06217, along with their probable causes and solutions. Identifying the symptoms accurately can help in resolving issues effectively.
Equipment Does Not Power On
If the YR06217 fails to power on, check the following:
- Power Source: Ensure that the device is plugged into a functional outlet. Test the outlet with other devices.
- Power Cable: Inspect the power cable for any visible damage or disconnections.
- Internal Fuse: Check if an internal fuse has blown, which may require replacement.
Error Code E-03
Error code E-03 usually indicates a malfunction in the light source. To address this:
- Check Light Source: Confirm that the blue tube or LED is installed correctly and is not damaged.
- Replace Bulb: If necessary, replace the light source with a new one to restore functionality.
Inconsistent Readings
If the irradiance readings are inconsistent, consider the following:
- Calibration: Ensure the unit is calibrated properly. Refer to the user manual for calibration procedures.
- Distance from Patient: Verify that the distance from the light source to the newborn is maintained within the specified range.
Symptom-Cause-Solution Table
| Symptom | Possible Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Faulty power outlet or damaged power cable | Test outlet and replace cable if necessary |
| Error Code E-03 | Malfunctioning light source | Check installation and replace if damaged |
| Inconsistent Readings | Improper calibration or incorrect distance | Calibrate unit and maintain correct distance |
Frequently Asked Questions
What should I do if the YR06217 displays an error message?
First, refer to the user manual for a list of error codes. Identify the specific error and follow the troubleshooting steps outlined in the manual. Ensure that you have checked all connections and components before contacting customer support.
How can I ensure the effective life of the light source in the YR06217?
To extend the effective life of the light source, avoid turning it on and off frequently. Keep the unit clean and well-maintained, and do not expose it to extreme temperatures or humidity. Regularly check for any signs of wear or damage.
Is there a specific maintenance schedule for the YR06217?
Yes, regular maintenance should include cleaning the device, checking the light source, and ensuring that all parts are functioning as intended. Refer to the user manual for specific intervals and detailed maintenance procedures.
What are the optimal settings for irradiance during treatment?
The optimal setting for irradiance typically ranges from 400-500μW/cm², depending on the severity of jaundice. Always monitor the newborn's bilirubin levels and adjust the settings accordingly to ensure effective treatment.
Can I use accessories with the YR06217 for enhanced functionality?
Yes, there are optional accessories available for the YR06217 that can enhance its functionality. These may include adjustable stands, protective covers, and additional light sources. Always ensure that any accessory used is compatible with the unit.
How do I read the therapy time displayed on the YR06217?
The therapy time displayed on the YR06217 is shown in hours and minutes. It is important to track this time to ensure that the newborn receives the full recommended duration of phototherapy. The digital display is designed for clear visibility and ease of understanding.
