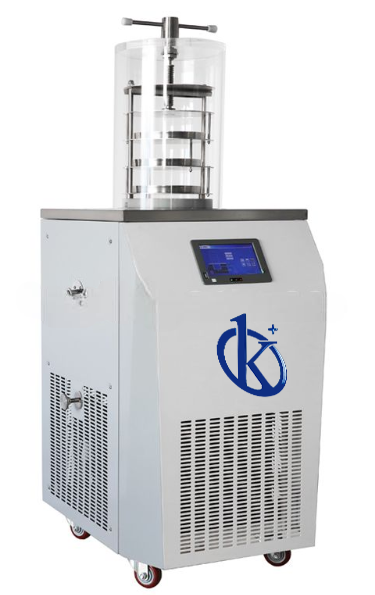

Troubleshooting Common Errors on the YR05199 Freeze Dryer: Symptoms and Solutions
The YR05199 Freeze Dryer is a vital piece of equipment in laboratory settings, commonly used in medicine, pharmacy, biological research, chemistry, and food preservation. While this machine is designed for efficiency and reliability, operators may encounter various problems that require troubleshooting. This article provides a comprehensive guide to diagnosing and resolving common symptoms associated with the YR05199, ensuring optimal performance in your laboratory.
Understanding the YR05199 Freeze Dryer
The YR05199 model features advanced technology that allows for effective freeze-drying processes, ensuring that materials retain their biochemical characteristics post-drying. This section outlines its key features:
- Process fixation during freeze-drying
- Electric heating shelf with controlled heating speed
- 7-inch touch screen for user-friendly operation
- Cold trap and stainless steel working table
- Large opening siphon with pre-freezing function
- Electric defrosting cold trap
- Flexible switching of vacuum units (Pa, mBar, etc.)
- Vacuum pump protection function with adjustable settings
Technical Specifications of the YR05199
| Model | YR05199 |
|---|---|
| Freeze-drying Area | 0.09m² |
| Storage Temperature | -40 ~ +60°C |
| Cold Trap Temperature | ≤ 60 °C (no load), optional ≤ -80 °C (no load) |
| Water Catching Capacity | 6 kg/24h |
| Final Vacuum | ≤ 5pa (no load) |
| Power | 1800w |
| Host Weight | 105 KG |
| Dimensions of the Central Unit | 630×580×1455mm |
Troubleshooting by Symptoms
This section provides a detailed overview of common errors and troubleshooting solutions for the YR05199 Freeze Dryer, structured by symptoms you may encounter during operation.
Equipment Does Not Power On
This is a common issue that can arise from several causes:
- Power Supply Issue: Ensure that the power cable is properly connected and the socket is functional.
- Fuse Failure: Check for blown fuses within the unit.
- Internal Circuit Fault: Examine the internal wiring for any damage.
Inconsistent Temperature Readings
Fluctuations in temperature can lead to improper drying results:
- Sensor Malfunction: Test the temperature sensors for accuracy.
- Calibration Error: Re-calibrate the unit to ensure accurate readings.
- Environmental Temperature Changes: Verify that the surrounding environment maintains stable conditions.
Error Code E-03
This error code typically indicates a problem with the vacuum system:
- Vacuum Leak: Inspect all seals and connections for leaks.
- Pump Malfunction: Check the vacuum pump for proper functioning.
- Improper Load: Ensure that the load is not exceeding the specified limits for the unit.
Excessive Frost Build-up
Frost accumulation can lead to operational inefficiency:
- Defrosting Function Disabled: Ensure that the electric defrosting feature is activated.
- Cold Trap Overload: Avoid overloading the cold trap with too much material.
- Environmental Humidity: Monitor and control the humidity in the operating environment.
Symptom-Cause-Solution Matrix
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Power Supply Issue | Check connections and outlet |
| Equipment Does Not Power On | Fuse Failure | Replace blown fuses |
| Inconsistent Temperature Readings | Sensor Malfunction | Test and replace sensors |
| Error Code E-03 | Vacuum Leak | Inspect seals and connections |
| Excessive Frost Build-up | Defrosting Function Disabled | Activate electric defrosting |
Frequently Asked Questions
What should I do if my YR05199 Freeze Dryer is not maintaining vacuum?
If your YR05199 is not maintaining vacuum, check for any leaks in the system. Inspect all seals, gaskets, and connections to ensure they are tight and intact. Additionally, verify that the vacuum pump is functioning correctly.
How can I extend the lifespan of my YR05199 Freeze Dryer?
To extend the lifespan of the YR05199, perform regular maintenance such as cleaning the cold trap, checking the vacuum pump oil, and ensuring that the unit is calibrated correctly. Frequent inspections will help identify issues before they become significant problems.
What are common user errors that can lead to malfunctioning of the YR05199?
Common user errors include overloading the freeze dryer, not properly sealing the load, and failing to calibrate the unit before use. Always follow the manufacturer's guidelines for loading and operation.
Can I use the YR05199 for different types of samples?
The YR05199 is versatile and can be used for various samples, including biological, pharmaceutical, and food materials, as long as they are compatible with freeze-drying processes. Always refer to the user manual for specific guidelines on sample types.
What maintenance tasks should I perform on the YR05199?
Routine maintenance tasks include cleaning the cold trap, checking vacuum pump oil levels, inspecting seals for leaks, and performing calibration checks to ensure accurate readings.
