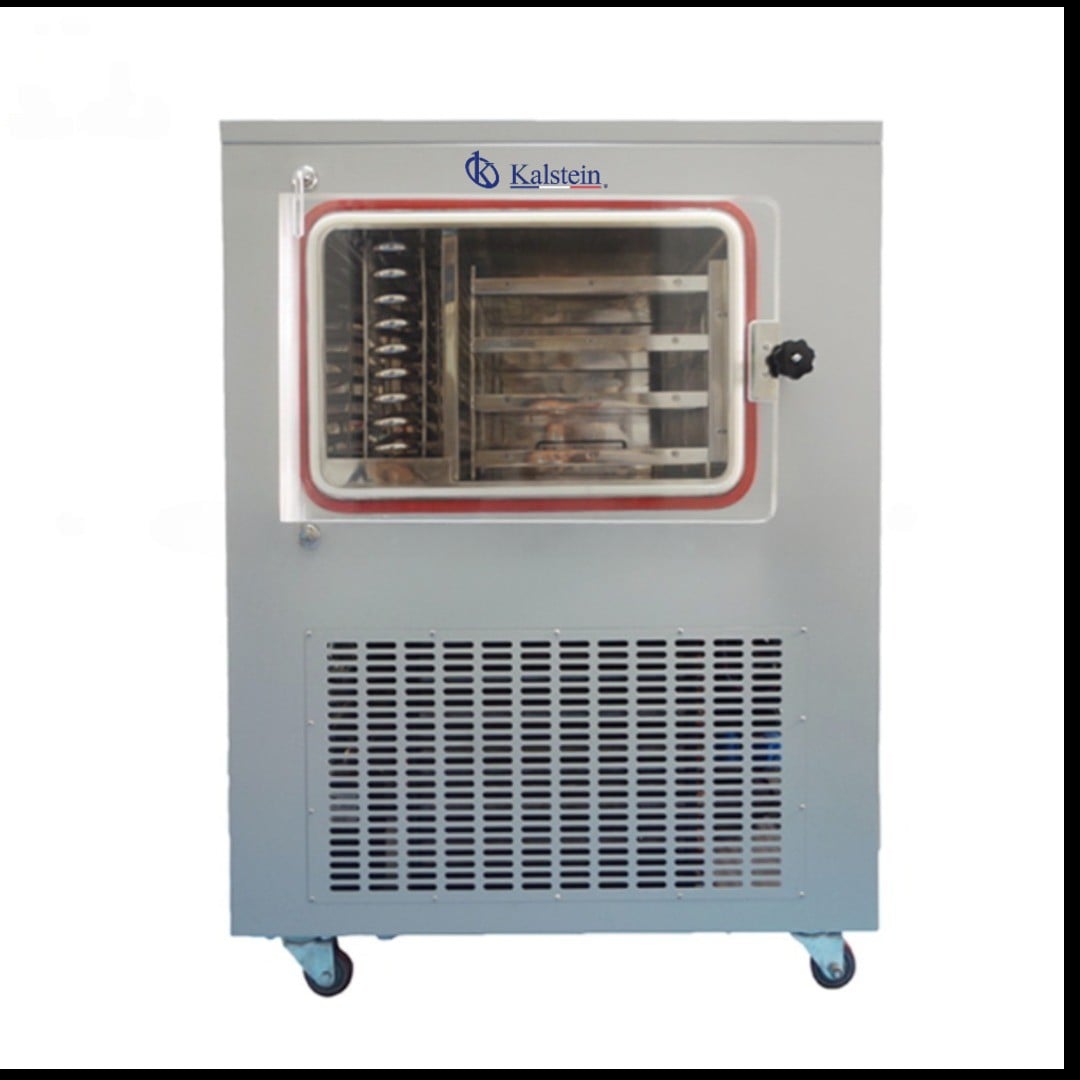

Troubleshooting Tips for Common Errors in the YR06637 Electric Heating Vacuum Freeze Dryer
The YR06637 Electric Heating Vacuum Freeze Dryer is an advanced device designed for critical applications in medicine, pharmacy, biotechnology, and the food industry. Its in-situ freeze-drying system automates the drying and sublimation process, providing a contamination-free environment. However, like any complex equipment, it may encounter issues. This article focuses on common error symptoms and their troubleshooting strategies for the YR06637.
Common Error Symptoms and Solutions
Understanding the error symptoms that may arise during the operation of the YR06637 is crucial for effective troubleshooting. Below are some typical symptoms, their probable causes, and corresponding solutions.
| Error Symptom | Probable Cause | Recommended Solution |
|---|---|---|
| Equipment does not power on | Power source issue, faulty power cable, blown fuse | Check power connection, replace the power cable, or inspect/change the fuse |
| Error code E-03 | Temperature sensor malfunction | Inspect and replace the temperature sensor |
| Inconsistent readings | Calibration issue, environmental interference | Recalibrate the device and ensure it is in a stable environment |
| Low vacuum level | Leak in the vacuum system, faulty pump | Check for leaks and inspect the vacuum pump for functionality |
| Condensation in the chamber | Improper temperature settings | Adjust temperature settings to ensure proper freeze-drying conditions |
Understanding the Design and Technology of YR06637
The YR06637 incorporates several innovative features that enhance its performance and reliability in freeze-drying processes. Understanding these features can help operators effectively troubleshoot issues they may encounter.
- In-Situ Freeze-Drying: This model integrates pre-freezing and drying in the same location, streamlining the process and improving product quality.
- Intelligent Temperature Control: This technology minimizes temperature differences between shelves, achieving uniform drying across the load.
- Industrial Interface: A 7-inch color touchscreen and the SH-HPSC-II modular controller allow for the management of complex freeze-drying curves with stability.
- FD-EMB System: Capable of storing hundreds of process recipes, this system facilitates optimization for various sample types.
- Transparent Monitoring: The high-strength acrylic drying chamber door allows for direct visual observation of the sublimation process.
Technical Specifications of the YR06637
| Feature | Specification |
|---|---|
| Model | YR06637 |
| Freeze-Drying Area | 0.4 m2 |
| Number of Trays | 4 Trays |
| Tray Size | 300 x 340 mm |
| Laminar Spacing | 50 mm |
| Tray Temperature Range | -50 °C to +70 °C (Electric Heating) |
| Cold Trap Temperature | Less than or equal to -60 °C (Optional -80 °C) |
| Water Collection Capacity | Greater than or equal to 8 kg / 24 h |
| Maximum Vacuum | Less than or equal to 5 Pa (no load) |
| Pumping Speed | 6 L/s |
| Installed Power | 2700 W |
| Cooling Method | Air Cooling |
| Packing Dimensions | 880 x 850 x 1580 mm |
| Equipment Weight | 280 kg |
| Packing Weight | 350 kg |
Preventive Maintenance Recommendations
To ensure the longevity and proper functioning of the YR06637, it is essential to follow preventive maintenance measures. Here are some recommendations:
- Regular Cleaning: Clean the drain valve and check the cold trap's condition after each cycle to maintain water collection efficiency.
- Calibration Checks: Periodically calibrate the temperature sensors and vacuum gauge to ensure accurate readings.
- Environmental Controls: Operate the device in controlled environments with temperatures between 10 °C and 32 °C to facilitate air cooling and enhance performance.
Frequently Asked Questions
What should I do if the YR06637 does not power on?
Check the power source and connections. Ensure that the power cable is intact and replace the fuse if necessary. If the issue persists, consult the manufacturer.
How can I resolve error code E-03 on the YR06637?
Error code E-03 indicates a temperature sensor malfunction. Inspect the sensor for damage and replace it if needed to ensure accurate temperature readings.
What are the ideal operating conditions for the YR06637?
The YR06637 operates optimally in controlled environments with temperatures between 10 °C and 32 °C, ensuring effective air cooling and performance stability.
How do I maintain the vacuum levels in the YR06637?
Regularly check for leaks in the vacuum system and ensure that the vacuum pump is functioning correctly. Address any leaks promptly to maintain optimal vacuum levels.
What types of materials can I process with the YR06637?
The YR06637 is suitable for processing heat-sensitive materials, pharmaceuticals, and biological samples. Its design allows for the drying of various samples while preserving their biochemical qualities.
Can the YR06637 be used for batch production?
Yes, the YR06637 features a flexible mode that allows for manual operation for process exploration, as well as an automatic mode for standardized production processes.
Where can I request a quote for the YR06637?
You can easily request a quote for the YR06637 through our online channels, where you can explore the equipment and get competitive pricing.
