Technical Performance and Security of the Trinocular Microscope YR05788-AT
When considering laboratory equipment, the microscope stands out as one of the most essential tools for technical performance and security in research and educational environments. The YR05788-AT Trinocular Microscope embodies these characteristics, delivering an impressive range of features tailored for diverse laboratory needs. In this article, we delve into the specifics of the YR05788-AT, including its product description, market pricing, and its advantages and disadvantages in practical application.
Product Description

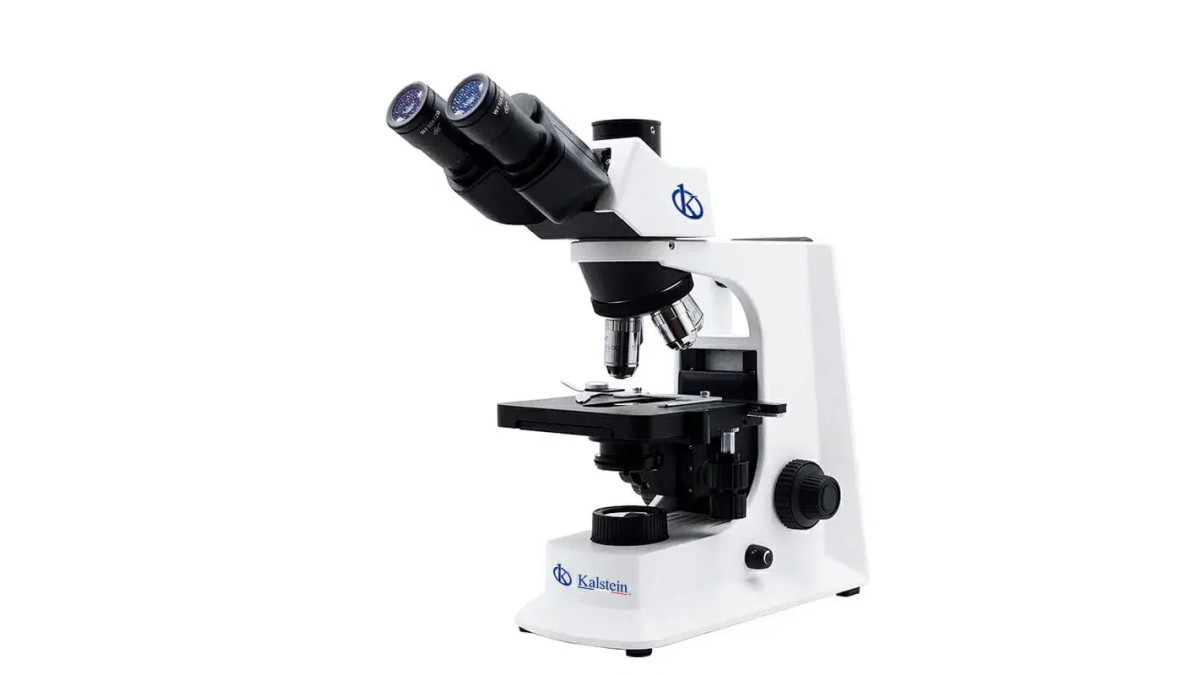

The YR05788-AT Trinocular Microscope is a basic level laboratory microscope offering full-range magnification capabilities. It integrates a range of innovative features aimed at enhancing user experience and ensuring accurate results in various applications. Key features include:
- Full Range Magnification: This microscope supports various magnification levels, accommodating a wide range of observation needs.
- 40x LWD Infinity Plan Objective: Designed to minimize contamination, it avoids the use of cedar oil.
- Creative 100x Water Objective: This feature eliminates the need for oil, enhancing ease of use.
- High-Rigidity Body Structure: The robust design ensures stability during use and simplifies handling.
- Customizable Colors: Users can choose from different colors to personalize their models.
Seidentopf Head
The microscope is equipped with a Seidentopf head that is inclined at 30 degrees and can rotate 360 degrees. The interpupillary distance ranges from 48mm to 75mm, making it suitable for users of various heights. The integrated design of the ocular lens barrel prevents loss and contamination, enhancing the operational efficiency of the microscope.
Quadruple Backward Nosepiece
Featuring four objective sets, including achromatic, plan, infinity e-plan, and infinity plan options, the YR05788-AT provides a versatile platform for a wide range of viewing requirements.
Double Slide Working Stage
The mechanical stage has dimensions of 145mm x 140mm and a travel range of 76mm x 52mm, with a scale accuracy of 0.1mm, allowing for precise positioning and observation.
Condenser and Light Source
Equipped with an Abbe condenser of N.A. 1.25, an iris diaphragm, and a 3W LED illumination system, this microscope ensures optimal light transmission and quality of viewing.
Market Price
The YR05788-AT Trinocular Microscope is competitively priced at approximately $311.00. This pricing positions it as an accessible option for educational institutions and laboratories seeking quality without breaking the budget. Below is a technical comparison table highlighting key specifications:
| Specification | Details |
|---|---|
| Model | YR05788-AT |
| Power Supply Type | USB DC Adapter |
| Light Source | 3W LED |
| Condenser N.A. | 1.25 |
| Focusing Mechanism | Coaxial coarse and fine |
| Objective Types | Achromatic 4x, 10x, 40x, 100x |
| Working Stage Size | 145mm x 140mm |
| Stage Movement | 76mm x 52mm |
Frequently Asked Questions
What are the main features of the YR05788-AT Trinocular Microscope?
The YR05788-AT offers full-range magnification, high-rigidity body structure, multiple objective lenses, and user-friendly operations, making it ideal for various laboratory applications.
How does the 100x water objective differ from traditional oil objectives?
The 100x water objective eliminates the need for cedar oil, making it easier to use and less messy, while still providing high-quality imaging.
What type of illumination system does the microscope use?
The microscope features a 3W LED light source, ensuring bright and efficient illumination for accurate observations.
What is the maximum magnification of the YR05788-AT?
The microscope provides a standard maximum magnification of up to 1000x, suitable for detailed examinations.
Can the microscope be customized in terms of color?
Yes, the YR05788-AT is available in different colors, allowing users to personalize their equipment.
Is there a warranty available for the YR05788-AT Trinocular Microscope?
Details on warranty and service options can vary, so it's recommended to inquire directly for specific policies regarding the microscope.
Pros and Cons
Like any piece of equipment, the YR05788-AT has its advantages and disadvantages:
Pros:
- Cost-effective option for laboratories and educational institutions.
- Robust design provides stability during use.
- Various magnification options cater to different scientific needs.
- User-friendly features enhance usability.
Cons:
- Basic level microscope may not meet the needs of advanced research applications.
- Limited advanced features compared to higher-end models.
Field Usage
The YR05788-AT Trinocular Microscope is ideal for use in various fields, including education, research, and quality control laboratories. Its comprehensive features make it suitable for:
- Universities and educational institutions for teaching purposes.
- Research environments where precision observation is critical.
- Quality control laboratories for examining materials.
Recommendations
For those considering the purchase of the YR05788-AT Trinocular Microscope, it is advisable to evaluate your specific needs and determine if this model meets your requirements. Furthermore, for organizations looking to equip labs with reliable and efficient tools, the YR05788-AT serves as an excellent choice due to its balance of affordability and performance.
