Spectrophotometers
Spectrophotometers are essential tools in laboratories for measuring the intensity of light at various wavelengths. They play a crucial role in fields such as chemistry, biology, and environmental science, enabling precise analysis of samples. Understanding their types and functionalities is vital for selecting the right model for your laboratory's needs.
From UV-Visible to infrared spectrophotometers, each type offers unique capabilities tailored to specific applications. This guide will help you navigate through different spectrophotometer categories, ensuring you make an informed decision on the best equipment for your laboratory operations.
Types of spectrophotometers your laboratory may need
Double beam
Double beam spectrophotometers are designed to measure light intensity by splitting the light beam into two paths. This configuration allows for simultaneous comparison between the sample and a reference, improving accuracy and stability. They are particularly useful in laboratories for applications requiring high precision and reliability.
These devices are favored for their ability to compensate for fluctuations in light source intensity, making them ideal for long-duration measurements. Many models also feature advanced data analysis capabilities, enhancing overall laboratory efficiency.
Unique beam
Unique beam spectrophotometers utilize a single light path for measuring sample absorbance. This simpler design often results in more compact and cost-effective units, making them suitable for routine analysis in various laboratory settings. They are ideal for applications with less stringent accuracy requirements.
While unique beam spectrophotometers may not offer the same level of precision as their double beam counterparts, they are still widely used for their ease of use and reliability in many common laboratory tasks.
What you should know before selecting a spectrophotometers and making an investment
Key factors to consider
When selecting a spectrophotometer, consider factors such as wavelength range, resolution, and sensitivity. Different applications may require specific features, such as the ability to measure low concentrations or the need for rapid data acquisition. Understanding your specific requirements ensures that you choose the most suitable model for your laboratory.
Additionally, assess the ease of use and the necessary software capabilities for data analysis, as these can significantly impact your laboratory's workflow and efficiency.
Market price range
The price of spectrophotometers can vary widely based on features, brand, and technology. Entry-level models may start from a few hundred dollars, while advanced spectrophotometers can cost several thousand. It's essential to evaluate which features are essential for your applications to avoid overspending.
Consider potential long-term savings from higher-quality equipment that may require less maintenance and offer greater reliability, leading to better overall performance in your laboratory.
Value for money
Investing in a spectrophotometer that provides excellent value for money involves assessing both initial costs and operational efficiency. Look for models that offer advanced features at a reasonable price without compromising on quality. Often, more established brands provide warranties and customer support that can add value to your investment.
Conducting a cost-benefit analysis can help determine the most economically viable options, ensuring that your laboratory remains within budget while obtaining the necessary analytical capabilities.
Expected lifespan based on use and maintenance
The expected lifespan of a spectrophotometer is influenced by its design, usage frequency, and maintenance practices. On average, well-maintained units can last for several years. Regular cleaning, calibration, and proper handling are essential to prolonging the device's operational effectiveness.
Choosing spectrophotometers with robust construction and reliable components can further enhance longevity, ensuring you receive a good return on your investment over time.
SPECTROPHOTOMETERS KALSTEIN
Discover spectrophotometers for your laboratory
Explore our range of high-quality spectrophotometers designed to meet the diverse needs of laboratory analysis. The Kalstein YR06702 series stands out for its precision and reliability, making it an excellent choice for laboratories that require accurate photometric measurements.

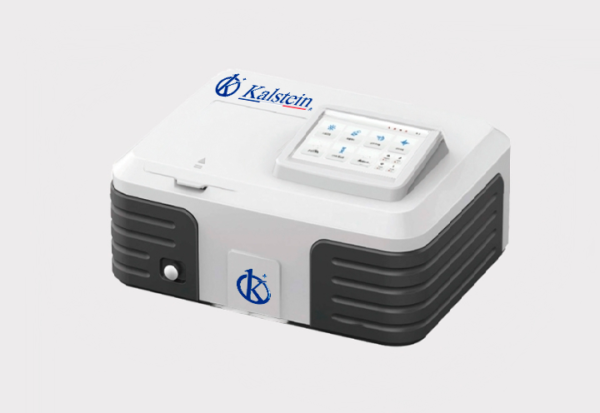

YR06702//YR06702-3 Series Single and Dual Beam UV-Visible Spectrophotometer
Kalstein YR06702 series of UV-Visible Spectrophotometers represents the gold standard in photometric analysis for laboratories demanding absolute prec
View productOur best-selling spectrophotometers
YR06702//YR06702-3 Series Single and Dual Beam UV-Visible Spectrophotometer
Design and Technology: Cutting-Edge Functionality
The YR06702 series design has been optimized to minimize stray light (≤0.05%T) and maximize resolution. While the base model offers a bandwidth of 1.8 nm, the premium YR06702-3 version allows for variable bandwidth (0.5/1/2/4 nm), ideal for research requiring extremely fine peak discrimination. The robust optical system and the option for data output via Bluetooth or USB ensure quick and error-free integration of results into your LIMS.Frequently Asked Questions (FAQ)
- What is the main difference between the single-beam and dual-beam models? The single-beam (YR06702) is ideal for routine high-speed measurements, while the dual-beam (YR06702-1/3) automatically compensates for light source fluctuations and solvent noise, offering greater stability in complex analyses.
- Does it require external software to operate? No, it has a built-in standalone operating system. However, we offer optional PC software for deeper data analysis and regulatory compliance.
Advantages and Disadvantages
Advantages:- High Precision: Wavelength accuracy up to ±0.1 nm in higher models.
- Modern Interface: Color touchscreen that eliminates the need for peripherals.
- Preheating: Requires 2 hours to reach maximum stability of 0.001 A/h.
- Weight and Size: As they are high-precision equipment, they require a fixed and level table space.
Product Use in the Field
In clinical settings , these spectrophotometers are essential for quantifying nucleic acids and proteins. In the environmental industry , they are used to detect contaminants in water using highly linear calibration curves. Thanks to their photometric range of -0.3 to 3 Å, researchers can analyze samples with varying concentrations without excessive dilution, optimizing turnaround time in the laboratory.Recommendations and Maintenance
To ensure the longevity of your YR06702 Series Spectrophotometer , it is recommended that you:- Electrical Stabilization: Use a voltage regulator to protect deuterium and tungsten lamps against power spikes.
- Optical Cleaning: Clean the cuvettes with spectroscopic grade solvents to avoid interference in the reading of diffuse light.
- Periodic Calibration: Although the equipment is highly stable, a semi-annual validation of the wavelength accuracy using certified filters is suggested.
Technical Specifications
| Model | YR06702 | YR06702-1 | YR06702-2 | YR06702-3 |
| Optical System | Keep it simple | Double the Do | Double the Do | |
| Light Source | Tungsten (W) and Deuterium (D2) Lamp | |||
| Wavelength Range | 190-1100 nm | |||
| Bandwidth | 1.8 nm | 1 nm | 0.5 / 1 / 2 / 4 nm | |
| Screen | 7-inch touchscreen | 10-inch touchscreen | ||
| Wavelength Accuracy | ±0.5 nm | ±0.1 nm at D2 656.1 nm, ±0.3 nm at full range | ||
| Wavelength Repeatability | ≤0.2 nm | ≤0.1 nm | ||
| Photometric Accuracy | ±0.3%T (0-100%T); ±0.002Abs (0-0.5Abs); ±0.004Abs (0.5-1.0Abs) | |||
| Photometric Repeatability | ≤0.1%T (0-100%T); ≤0.001Abs (0-0.5Abs); ≤0.002Abs (0.5-1.0Abs) | |||
| Stability | ≤0.001 A/h @ 250 nm and 500 nm (2 h preheating) | |||
| Photometric Range | -0.3-3 A, 0-200% T, 0-9999 C | |||
| Diffused light | ≤0.05% T at 220 nm and 360 nm | |||
| Control Mode | Standalone system or PC software (Optional) | |||
| Data Output | USB or Bluetooth port (Optional) | |||
| Energy Requirement | AC 110/220 V, 50/60 Hz | |||
Detailed analysis of spectrophotometers for an effective and safe choice
Dual Beam UV-Vis Spectrophotometers: A Comparative Analysis
In the realm of scientific instrumentation, spectrophotometers are indispensable tools, widely utilized for quantitative analysis in various fields such as chemistry, biochemistry, and biotechnology. This article provides a detailed comparison between two prominent products in this category: the Unique Beam UV / VIS Spectrophotometer- YR01858 by Kalstein and the UV-1900i Double Beam UV-Vis Spectr
Advanced Spectrophotometers: Precision Light Analysis for Molecular Research
Spectrophotometers Spectrophotometers are essential tools in many research labs, allowing scientists to analyze the interaction between light and matter. In my experience, this equipment is fundamental for various applications, especially in molecular research, where accuracy and reliability are key. Spectrophotometers enable the quantitative analysis of substances by measuring the intensity o

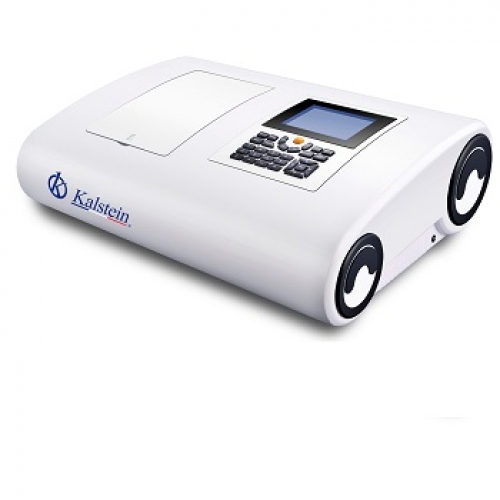

Spectrophotometers: care and maintenance
