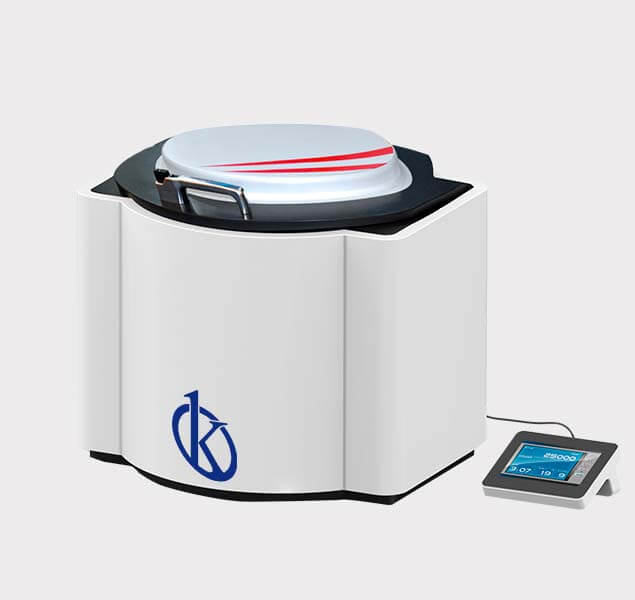

Site Requirements and Environmental Conditions for the YR04958 Microwave Digestion System
The YR04958 microwave digestion system boasts advanced features and capabilities that make it essential for various laboratory applications. However, to harness its full potential, it is crucial to understand the site requirements and environmental conditions necessary for its proper operation.
Overview of YR04958
The YR04958 is designed for sample digestion with efficiency and accuracy, employing a patented automatic pressure release system and a non-contact temperature and pressure monitoring system. However, these advanced features perform optimally only under specific environmental conditions and site requirements.
Technical Specifications of YR04958
| Specification | Description |
|---|---|
| Model | YR04958 |
| Number of vessels | 18 |
| Microwave Power | 0-2000W (adjustable) |
| Temperature Range | 50-400°C |
| Pressure Control Range | 0-10MPa |
| Dimensions (L×W×H) | 640×630×590mm |
| Weight | 70KG/75KG |
| Power Supply | AC 220V±10%, 10A, 50/60Hz |
Environmental Conditions for Optimal Performance
The performance of the YR04958 is highly dependent on the environmental conditions in which it operates. Below are key factors to ensure optimal functioning:
- Temperature: The ambient temperature should ideally be between 20°C and 25°C to maintain the unit's efficiency.
- Humidity: Relative humidity should be controlled, ideally not exceeding 70%, to avoid electrical malfunctions.
- Ventilation: Adequate ventilation is necessary to disperse any heat generated during operation. Ensure that there is sufficient airflow around the unit.
- Vibration: The unit should be placed on a stable and vibration-free surface to avoid inconsistencies in readings and performance.
- EMI: Minimize exposure to electromagnetic interference from nearby devices that could disrupt the microwave operation.
Site Preparation Checklist for YR04958
Before installation, ensure the following preparations are completed:
| Requirement | Description |
|---|---|
| Clearance Space | Provide at least 30cm of clearance around the unit for ventilation. |
| Electrical Supply | Ensure access to a stable AC power supply of 220V±10% and 10A. |
| Surface Level | Install on a level surface to prevent spills and ensure accurate readings. |
| Drainage | Consider the placement of drainage solutions to handle any potential spills. |
| Gas/Water Supply | Confirm availability of necessary utilities as per operation protocols. |
Common Installation Mistakes and Solutions
When setting up the YR04958, avoid these common mistakes:
- Inadequate Ventilation: Ensure the space around the machine is well-ventilated to prevent overheating.
- Power Supply Issues: Double-check voltage and amperage requirements to avoid damage to the system.
- Improper Leveling: Use a leveling tool to confirm that the unit is properly installed on a flat surface.
Frequently Asked Questions
What are the ideal environmental conditions for operating the YR04958?
The YR04958 operates best in temperatures between 20°C and 25°C, with a relative humidity not exceeding 70%. Adequate ventilation and a stable base are also crucial.
How much clearance is required around the YR04958?
A minimum of 30cm clearance around the YR04958 is recommended to allow for proper airflow and prevent overheating.
Can the YR04958 be used in high humidity environments?
While it can be used in slightly humid environments, it is not recommended to exceed 70% relative humidity as this could lead to electrical issues.
What is the power supply requirement for the YR04958?
The YR04958 requires an AC power supply of 220V±10% with a maximum current of 10A.
Is there a specific surface on which the YR04958 should be placed?
The YR04958 should be placed on a level and stable surface to ensure accurate performance and prevent any spills during operation.
What are the potential consequences of improper site conditions for the YR04958?
Improper site conditions may lead to equipment failure, inaccurate readings, and potential safety hazards due to overheating or electrical issues.
How can I request a quote for the YR04958?
You can request a quote for the YR04958 through our inquiry channels for detailed pricing and product information.
