Rotary Evaporator
The Rotary Evaporator is a vital instrument in laboratories, primarily used for the efficient evaporation of solvents under reduced pressure. This device allows for the gentle removal of solvents from samples, making it essential for various applications in chemistry and biochemistry.
Designed to enhance laboratory efficiency, rotary evaporators facilitate distillation and separation processes, ensuring that valuable compounds are preserved. Their ability to operate at low temperatures prevents thermal degradation of sensitive materials, making them indispensable in research and industrial applications.
Types of rotary evaporator your laboratory may need
Vacuum Pump
A vacuum pump is a crucial component for rotary evaporators, enabling them to function effectively by creating a vacuum environment. This reduces the boiling point of solvents, allowing for efficient evaporation at lower temperatures.
Incorporating a high-quality vacuum pump with your rotary evaporator can significantly enhance its performance, ensuring faster solvent removal and better preservation of sensitive compounds.
What you should know before selecting a rotary evaporator and making an investment
Key factors to consider
When selecting a rotary evaporator, consider factors such as the maximum evaporation speed, the size of the evaporation flask, and compatibility with various solvents. A robust motor and efficient heating system are also essential for optimal performance.
Additionally, ease of use and maintenance should not be overlooked, as these contribute to the overall efficiency and longevity of the equipment in your laboratory.
Market price range
The price of rotary evaporators varies widely based on brand, features, and specifications. Generally, you can find basic models starting from a few hundred dollars, while advanced systems with additional features can reach several thousand dollars.
Consider your laboratory's budget and the specific needs of your applications when evaluating your options to ensure you make a sound investment.
Value for money
Investing in a rotary evaporator should be viewed through the lens of value for money. Look for models that offer a good balance between cost and performance, ensuring they meet your laboratory's requirements without overspending.
High-quality materials and reliable manufacturers often provide better durability and efficiency, which can save you money on maintenance and replacements in the long run.
Expected lifespan based on use and maintenance
The lifespan of a rotary evaporator largely depends on the frequency of use and the level of maintenance it receives. Regular servicing and proper cleaning can significantly extend the life of the equipment.
Typically, a well-maintained rotary evaporator can last for many years, providing consistent performance, making it a worthwhile investment for any laboratory focused on research and development.
ROTARY EVAPORATOR KALSTEIN
Discover rotary evaporator for your laboratory
Explore our range of rotary evaporators designed to meet the diverse needs of laboratories. Each model combines quality, performance, and efficiency to support your research endeavors.

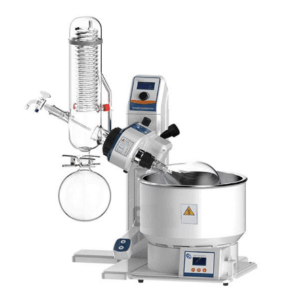

Rotary Evaporator YR02306
The Rotary Evaporator YR02306 is an indispensable tool for laboratories focusing on the evaporation, distillation, and separation of chemicals. This s
View productRotary Evaporator YR02307 // YR02310
The Rotary Evaporator YR02307 // YR02310 is designed with a large capacity and wide opening of the evaporating flask, providing an extensive evaporati
View productOur best-selling rotary evaporator

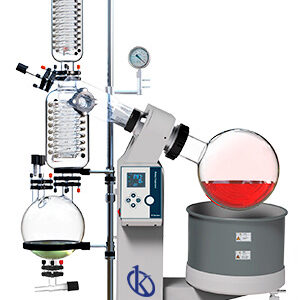

Rotary Evaporator YR02307 // YR02310
The Rotary Evaporator YR02307 // YR02310 is designed with a large capacity and wide opening of the evaporating flask, providing an extensive evaporation surface. As the flask rotates and is consistently heated by its water bath, the system ensures efficient solvent evaporation under vacuum conditions. Ideal for pilot-scale production, this equipment is pivotal in biological engineering, the pharmaceutical and chemical industries, as well as food processing. Typically, it integrates seamlessly with complementary devices such as water circulating vacuum pumps, diaphragm vacuum pumps, recirculating chillers, constant temperature circulators, and low-temperature circulating pumps.
Market Price
Considering similar products in the market, the Rotary Evaporator YR02307 // YR02310 is competitively priced. The average market range for such advanced rotary evaporators typically spans from $11,000 to $11,900 USD, reflecting the balance of innovation, reliability, and robust performance offered by this equipment.
Frequently Asked Questions
What is the main application of the Rotary Evaporator YR02307 // YR02310?
This rotary evaporator is primarily used for efficient and gentle removal of solvents from samples by evaporation, making it ideal for use in laboratories for chemistry, biology, and pharmaceuticals.
Is this evaporator equipped with safety features?
Yes, it includes a water bath jacket that protects operators from scalding hazards associated with hot liquids.
Advantages and Disadvantages
The Rotary Evaporator YR02307 // YR02310 boasts several advantages, including patented double sealing technology ensuring optimal vacuum conditions, and a corrosion-resistant Teflon discharge valve. However, users should consider the initial investment cost and ensure compatibility with their existing laboratory systems.
Usage in the Field
This equipment excels in research and production settings, enabling users to efficiently distill solvents and compound extractions in large volumes. It is tailored for laboratories conducting large-scale organic synthesis or biochemical research.
Recommendations
For optimal results, it is recommended to pair the evaporator with a compatible vacuum pump and chiller. Regular maintenance, including cleaning and inspection of seals and joints, will ensure prolonged operational life and performance consistency.
Features
- Patented technology of double sealing ensures high vacuum levels.
- Automatic switch valve for continuous collection and efficient distillation without vacuum loss.
- Corrosion-resistant Teflon discharge valve ensures purity and integrity of results.
- Comprehensive safety features with water bath jacket.
- Available in varied capacities, supporting diverse laboratory needs.
Technical Specifications
| Model | YR02307 | YR02308 | YR02309 | YR02310 | |||||
| Evaporating flask | 5L, flange opening: Φ50mm | 10L, flange opening: Φ125mm | 20L, flange opening: Φ125mm | 50L, flange opening: Φ125mm | |||||
| Receiving flask(L) | 3 | 5 | 10 | 20 | |||||
| Speed-regulation | DC stepless speed-regulation | ||||||||
| Power supply | 220V-240V, 50/60Hz | 3~, 380V, 50Hz | |||||||
| Overall power(kW) | 2.3 | 3.8 | 6.3 | 6.3 | |||||
| Rotation speed (rpm) | 20~140 | 20~130 | 20~130 | 20~110 | |||||
| Power of motor(w) | 250 | 250 | 250 | 250 | |||||
| Condenser | Vertical type double coil pipe | Vertical type, Main + auxiliary triple-circulating cold traps | |||||||
| Bath material | Stainless steel 304 | ||||||||
| Temperature range | RT~99℃ | ||||||||
| Temperature display | Digital display | ||||||||
| Sealing | 20mbar/h | ||||||||
| Evaporating Speed (L/h) | Water | 2.0 | 3.2 | 5.0 | 9.0 | ||||
| Ethanol | 5.4 | 8.6 | 14.3 | 24.5 | |||||
| Lifting function | Motorized Lift | Motorized lift + Manual lift | |||||||
| Elevating stroke(mm) | 0~150 | 0~160 | 0~190 | 0~180 | |||||
| Dimensions(mm) | 835W×400D×1090H | 990W×550D×1655H | 1195W×635D×2070H | 1345W×770D×2140H | |||||
| Net Weight(kg) | 60 | 85 | 115 | 200 | |||||
Detailed analysis of rotary evaporator for an effective and safe choice

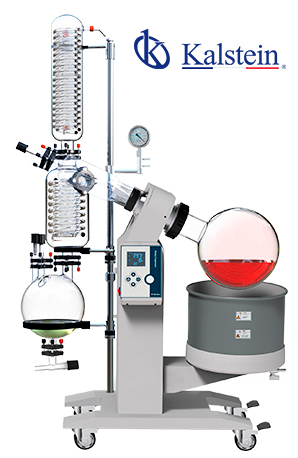

Discover the World of Rotary Evaporators: A Deep Dive into Kalstein's Offerings
