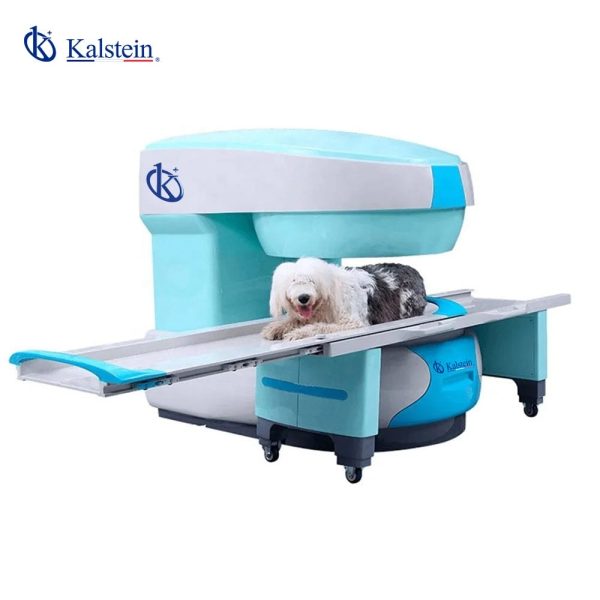

Veterinary MRI System YR06167
Veterinary MRI System YR06167 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Veterinary MRI System YR06167 is an advanced imaging solution designed for precise veterinary diagnostics. Its breakthrough magnet design incorporates anti-eddy current technology to deliver exceptional imaging clarity. This system features a permanent magnet with an automatic constant temperature system, ensuring stable operation and consistent image quality. The precision eddy current compensation algorithm effectively eliminates the effects of eddy currents, providing rapid, high-quality imaging perfect for diverse veterinary applications.
Market Price
For high-end veterinary imaging systems like the Veterinary MRI System YR06167, prices generally range from $682,000 to $682,800 USD. This provides a competitive edge in the market considering the advanced features and capabilities of this equipment.
Frequently Asked Questions
Q: What type of animals can be scanned using the Veterinary MRI System YR06167?
A: This MRI system can be used for a variety of animals, including dogs, cats, and exotic pets.
Q: How easy is it to maintain the system?
A: The system is designed for low maintenance with a reliable cooling system and automatic temperature control.
Advantages and Disadvantages
Advantages of the Veterinary MRI System YR06167 include precise imaging due to its advanced anti-eddy current technology, robustness from its permanent magnet, and versatility across numerous veterinary applications. One potential disadvantage could be its size and installation requirements, which might necessitate specific space allocations in veterinary practices.
Product Use in the Field
The Veterinary MRI System YR06167 is ideal for veterinary clinics and hospitals seeking reliable diagnostic imaging. It enhances veterinary care by allowing for non-invasive examinations and detailed evaluations of various animal conditions, thereby improving diagnostic accuracy and treatment planning.
Recommendations
To ensure optimal performance and longevity of the Veterinary MRI System YR06167, regular calibration and maintenance are recommended. Utilize the advanced imaging capabilities by training staff to fully leverage the system for comprehensive diagnostic evaluations. For more information or to initiate a purchase, consider generating a quote via the Kalstein Plus platform.
Features
- Breakthrough anti-eddy current technology for high-quality imaging
- Permanent magnet with an automatic constant temperature system
- Advanced gradient system with fast slew rates
- Fully digital RF system for optimal signal clarity
Technical Specifications
| Model | YR06167 | |
Magnet System | Magnet Type | Permanent magnet with automatic constant temperature system |
| Field strength | 0.35T | |
| Magnet shape | C-shape | |
| Homogeneity(30cm, DSV, Vp-p) | ≤35ppm | |
| Shim method | Active/Passive/Dynamic | |
| Magnet vertical gap | 35cm | |
| Accessibility(Horizontal opening angle) | >250° | |
| 5 Gauss fringe field | 2.5m*2.5m*2.5m | |
Gradient System | Gradient field strength(Single Axis) | ≥15mT/m |
| Gradient slew rate (Single Axis) | ≥45mT/m/ms | |
| Rise time | 0.3ms | |
| Gradient cooling system(Gradient coils and power electronics) | Air | |
RF System | Spectrometer | Fully digital |
| RF system type | Digital Transmit and Receive | |
| Number of RF channel | 2 | |
| Transmitter amplifier peak power | 5kW | |
| RF bandwidth of receiver | Each >400KHz | |
| Dynamic range | ≥80dB | |
| Noise factor | 0.3dB | |
| Coil type | Phase array | |
Technical specifications
| Manufacturer | Kalstein |
|---|
Video Veterinary MRI System YR06167
Frequently asked questions
How to know the prices of Veterinary MRI System YR06167?
To know the price of Veterinary MRI System YR06167, please send us an email with your request through the contact form AQUI.
What are the delivery times for Veterinary MRI System YR06167?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Veterinary MRI System YR06167?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Veterinary MRI System YR06167?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Veterinary MRI System YR06167?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
