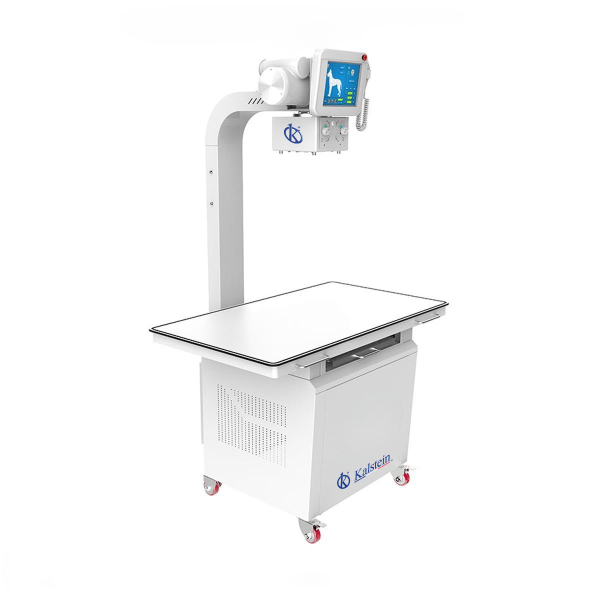

Description
200mA HF generator and Console
Collimator
X-ray tube (Toshiba 7239)
Pet table
JPI Grid
Flat panel detector
Computer and LCD
Technical Specifications
| Model | YR06162 |
| Maximum output power | 16kW |
| Input voltage range | AC 220V±22V |
| Applicable support | Radiography |
| Inverter frequency | ≥30kHz |
| Tube voltage range of radiography | 40kv~125kv |
| Range of tube current | 16~200mA |
| Range of exposure time | 0.0025s~6.4s |
| mAs range | 0.5mAs~320mAs |
| Communication interface | RS-232 |
| Other | Capacity lock automatically, fault diagnosis automatically, self-protection |
| Max. Tube voltage | 125kV |
| Focus | Small focus:1.0mm Large focus:2.0mm |
| Anode input power | Small focus:20KW Large focus:40KW |
| Anode speed | 2800 R/M |
| Target angle | 17.5° |
| Anode heat content | 100kJ(140kHU) |
