Description
76cm gantry size and 65cm extended FOV enabled Luna series CT with simulation and biopsy capabilities.
Patent technology Vision Tec keep HD-imaging (20lp/cm@0%MTF) outperforms normal CT simulators (15 lp/cm@0%MTF)
32×0.625mm detector design enables true 16/32 slice acquisition provides more clarity than interpolation reconstruction
5.3MHU tube, 0.5s rotation speed, 250kg patient load enables a greater range of patients and applications
Upgradable to 64-slice CT scanner, scalable based on customer requirements and budget
Technical Specifications

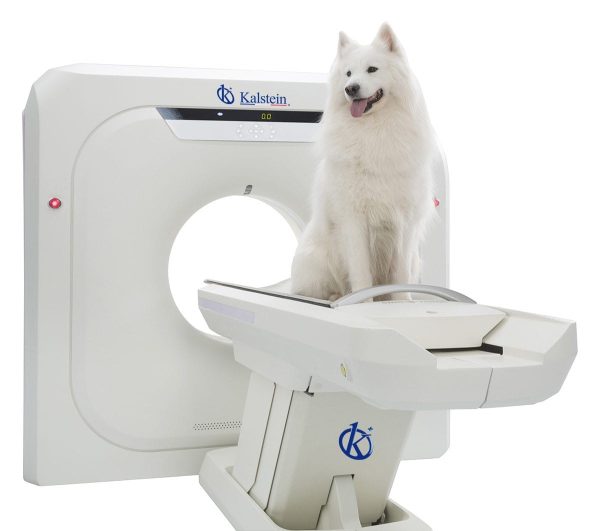

| Model | YR06166 | |
|
Gantry
|
Aperture | 70cm |
| One-button positioning | Preset 3 protocols | |
| Scan speed/360° | 0.7*, 0.8*, 0.9, 1.0, 1.5, 2.0s | |
| Scan FOV | 43cm | |
| Tilt range | Digital tilt±45° (step0.1) | |
| Auto voice | Support | |
|
Patient Table
|
Max.horizontal travel range | 1600mm |
| Horizontal scannable range | 50mm~1500mm | |
| Horizontaltravel speed | 1~200mm/s | |
| Vertical table travel range | 522mm~878mm | |
| Max.table load | 206kg | |
|
X-ray Tube
|
Anode heat capacity | 3. 5MHU |
| Equivalent anode heat capacity | 9.5MHU (with iDream) | |
| Cooling rate | 735kHU/min | |
| Focal spot size | Large: 1.2mm×1.4mm Small: 0.7mm×0.&mm |
|
|
Generator
|
Power rating | 42kW |
| Equivalent power rating | 113kW (with iDream) | |
| kV settings | 70, 80, 100, 120, 140kV | |
| mA range (Step size) | 10~350mA (1mAstep) | |
