Kalstein

Vertical Laminar Flow Cabinet YR05735

SKU:YR05735 · By Kalstein

Category:Vertical Laminar Flow Clean Bench

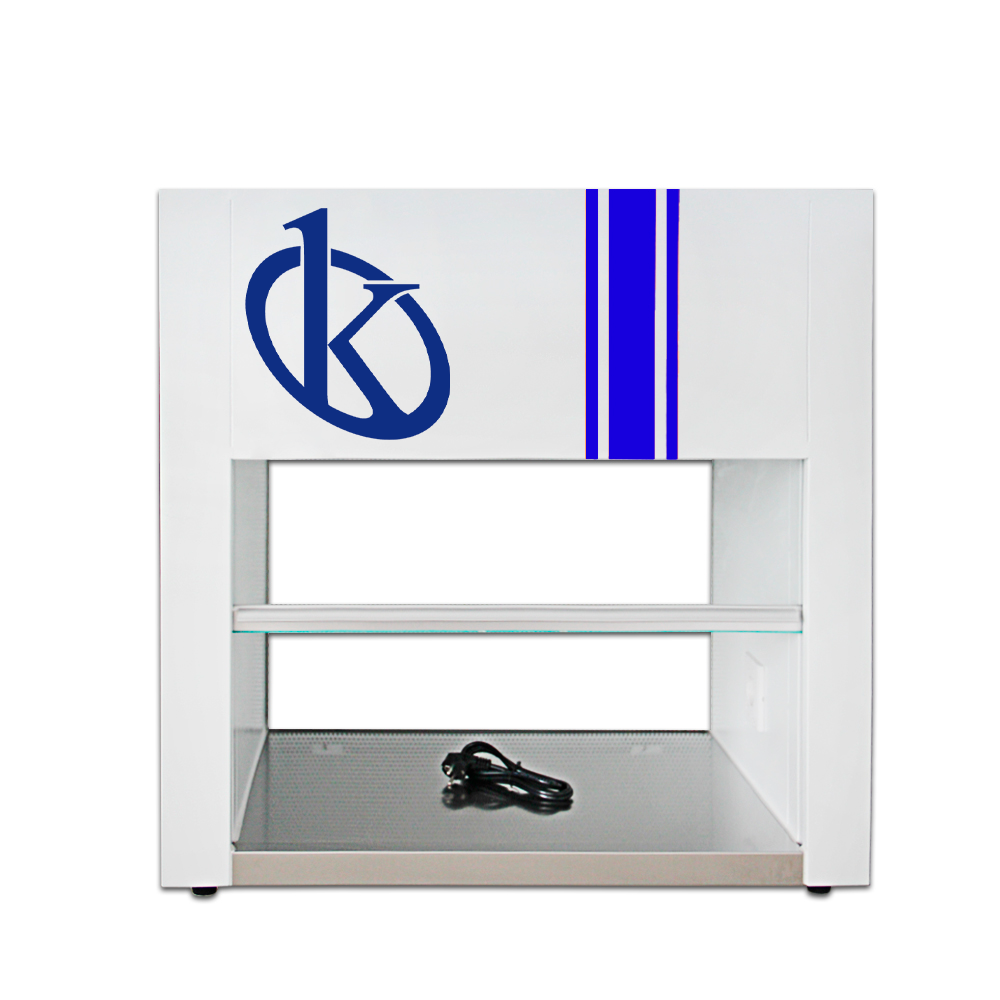

Vertical Laminar Flow Cabinet YR05735

Vertical Laminar Flow Cabinet YR05735 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

The Vertical Laminar Flow Cabinet YR05735 is an exceptional choice for environments requiring a sterile and dust-free atmosphere, such as medical facilities, biotechnology labs, and research centers. This advanced clean bench features a vertical air flow supply, ensuring that the work area is continuously swathed in clean, filtered air. Constructed with robust cold-rolled plate welding and finished with electrostatic spray, the unit exudes durability and elegance. Designed to fit seamlessly on any standard workbench, its compact size ensures it is both space-efficient and versatile.

Market Price

The Vertical Laminar Flow Cabinet YR05735 is competitively priced in the market. Typically, similar products range from approximately $700 to $1500, considering the high quality and superior performance of our product. This pricing strategy ensures accessibility while maintaining exceptional value. For precise pricing tailored to your needs, we invite you to request a quote through Kalstein Plus, where you can easily generate a custom estimation.

Frequently Asked Questions

What is the cleanliness level of this cabinet? The cabinet maintains a Class 100 cleanliness level per US Federal Standard 209E, ensuring an exceptionally controlled environment. Is the fan speed adjustable? Yes, the fan system is equipped with a dual-speed remote switch, allowing easy adjustments between fast and slow airflow settings to maintain optimal conditions.

Advantages and Disadvantages

The YR05735 offers numerous advantages, including easy operability, compactness, and reliable performance in cleanliness and noise control. Its quasi-closed glass damper further simplifies usage. However, potential drawbacks include the need for periodic maintenance of the filters and the installation limitations in spaces without adequate support for its weight.

Field Usage

In practical scenarios, the Vertical Laminar Flow Cabinet YR05735 shines in laboratories focused on cell culture, microbiology, and chemical analysis. Its ability to provide a sterile workspace is crucial for these applications, guaranteeing contamination-free results and promoting safety. The cabinet's manageable size also means it can be transported between labs with relative ease.

Recommendations

To maximize the functionality and lifespan of the YR05735, regular maintenance of the filters and fan system is recommended. Operators should also ensure the unit is placed on a stable surface to avoid vibrations. For optimal performance, consider pairing it with a dedicated UPS system to safeguard against power fluctuations.

Features

  • Constructed from cold-rolled plate with electrostatic spray finish.
  • Offers both vertical and horizontal air supply modes.
  • Compact design suitable for placement on standard workbenches.
  • Adjustable dual-speed fan system controlled via remote switch.

Technical Specifications

Model YR05735
Cleanliness levelClass 100@≥0.5μM (US Federal 209E)
Number of colonies≤0.5pcs/dish·hour (Φ90mm culture plate)
Average Wind Speed0.25~0.45m/s(Fast and slow)
Noise≤62dB(A)
Vibration half peak≤5μM(x、y、z direction)
Illuminance≥300Lx
Power SupplyAC single-phase 220V/50Hz
Working areaW1×D1×H1690×490×490
Overall dimensionW×D×H850×530×850
High efficiency filter specification and quantity675×410×38×1
Specification and quantity of fluorescent lamp/ultraviolet lamp12W×1/20W×1

Technical specifications

Weight87 kg
ManufacturerKalstein

Video Vertical Laminar Flow Cabinet YR05735

Frequently asked questions

How to know the prices of Vertical Laminar Flow Cabinet YR05735?

To know the price of Vertical Laminar Flow Cabinet YR05735, please send us an email with your request through the contact form AQUI.

What are the delivery times for Vertical Laminar Flow Cabinet YR05735?

Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.

How to make a purchase of Vertical Laminar Flow Cabinet YR05735?

You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.

How does the warranty work for Vertical Laminar Flow Cabinet YR05735?

All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.

Can I request a quote online for Vertical Laminar Flow Cabinet YR05735?

Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
