Description

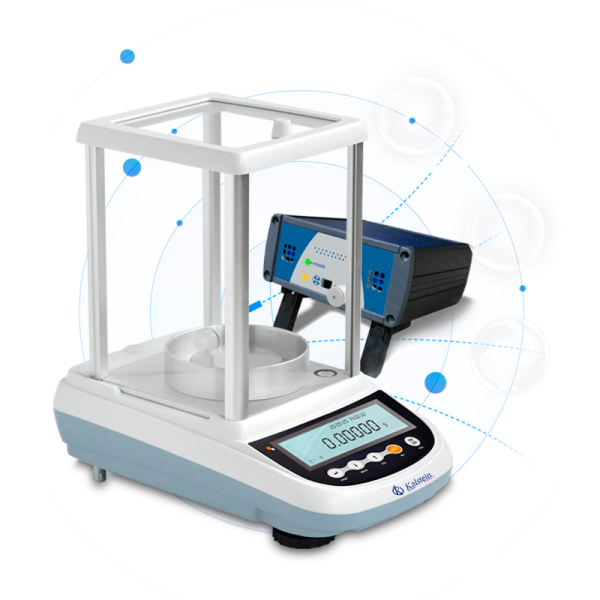

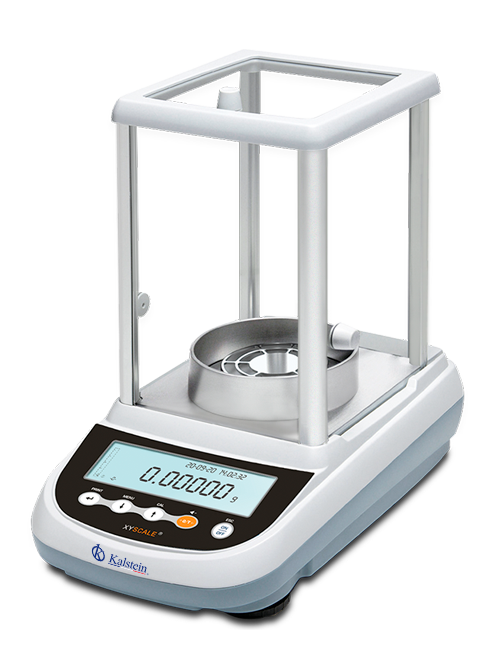

The Semi-micro Analytical Balance YR05562 // YR05567 is a highly precise instrument designed for laboratory environments requiring accurate measurement. Equipped with an automatic internal calibration system and a highly sensitive speed adjustment feature, this balance ensures top-tier reliability and quick stabilization. The multi-language interface supports various languages, enhancing accessibility for international users. With a robust recipe database capable of storing up to 99 datasets, it’s perfect for complex experimental setups. The optional ION-A15 Static Eliminator and comprehensive selection of printers make this a versatile tool for any lab.
Market Price
In the market for high-precision analytical balances, the price range generally fluctuates from $4100 to $5000, depending on optional features and accessories. This provides a competitive edge when comparing the balance to other high-quality models available today.
Frequently Asked Questions
What is the capacity range for this balance? The Semi-micro Analytical Balance YR05562 // YR05567 offers a capacity range from 62g to 202g, with a minimum weighing threshold of 60mg or 100mg, depending on the model.

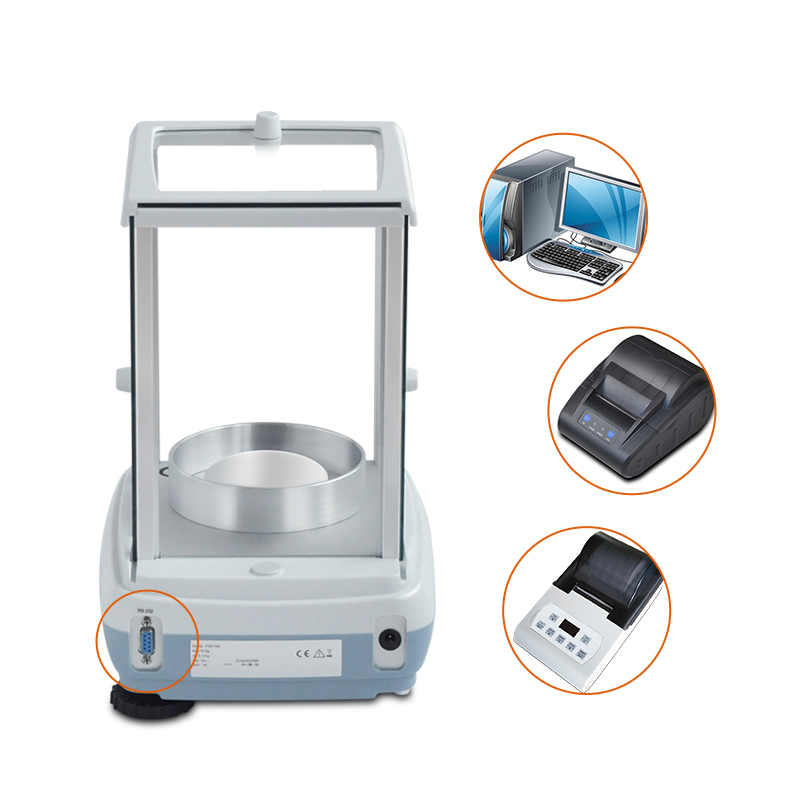

Does the balance support data transfer? Yes, it includes RS232C and RS485 interfaces for printer and peripheral connectivity.
Advantages and Disadvantages
The notable advantages of the Semi-micro Analytical Balance are its precise measurements due to high resolution (0.01mg), fast stabilization time (≤6 seconds), and comprehensive data handling. However, users must ensure the environment is within the operating temperature range (5-25℃) for optimal performance, which could be a limitation in fluctuating environments.
Use of the Product in the Field
This analytical balance is indispensable in pharmaceutical labs, research centers, and educational institutions. The ability to store numerous dataset recipes and perform diverse functions such as counting, percentage testing, and animal weighing makes it suitable for a wide range of applications. The internal calibration feature simplifies the setup process significantly, ensuring measurements remain accurate throughout extensive use.
Recommendations
To maintain optimal performance, it is recommended to regularly clean the balance pan and tactile keypad cover. Utilize the optional accessories like the static eliminator for environments prone to electrostatic interference. The consistent use of calibration weights will prolong the instrument’s accuracy.
Features
- Automatic internal calibration
- Recipe database storage for 99 datasets
- Multifunctional: tare, counting, percentage testing, animal weighing
- Adjustable baud rate
- Language Interface: English, German, French, Italian, Spanish, Portuguese
- Strong GLP/ISO data storage with date and time stamping
- Plastic protection cover for durability
- Overload and fault alarms
- Real-time unit conversion
Technical Specifications
| Model | YR05562 | YR05563 | YR05564 | YR05565 | YR05566 | YR05567 | ||||
| Capacity(g) | 62g/120g | 82g/220g | 102g/220g | 122g | 162g | 202g | ||||
| Resolution(g) | 0.01mg/0.1mg | 0.01mg | ||||||||
| Min weighing(g) | 60mg | 100mg | 100mg | |||||||
| Stable Time | ≤6s | |||||||||
| Display | LCD（white back light with black font） | |||||||||
| Pan size | Φ80mm | |||||||||
| Operation temp | 5-25℃ 20-80% humidity | |||||||||
| Repeat ability | 0.03mg/0.1mg | 0.05mg/0.1mg | 0.05mg | 0.05mg | ||||||
| Liner | ±0.08/±0.2mg | ±0.1/ ±0.2mg | ±0.1mg | ±0.1mg | ||||||
| Draft shield size | 152mm×160mm×225mm | |||||||||
| Cal.weight | Internal Calibration | |||||||||
| Option | RS232C & RS485、Printer | |||||||||
| Dimension | 345×215×345mm | |||||||||
| G.N . weight | 8.25kg/5.8kg | 8.3kg/5.85kg | ||||||||
| IONISER | Option | Standard | ||||||||
| Language | Italian/English/Portugues/Deutsch/France/Espanol | |||||||||
| Packing Size | 510x400x620mm(No pallet) | |||||||||
| Power Supply | 110-230V 50/60Hz Out DC 12V 1A | |||||||||
