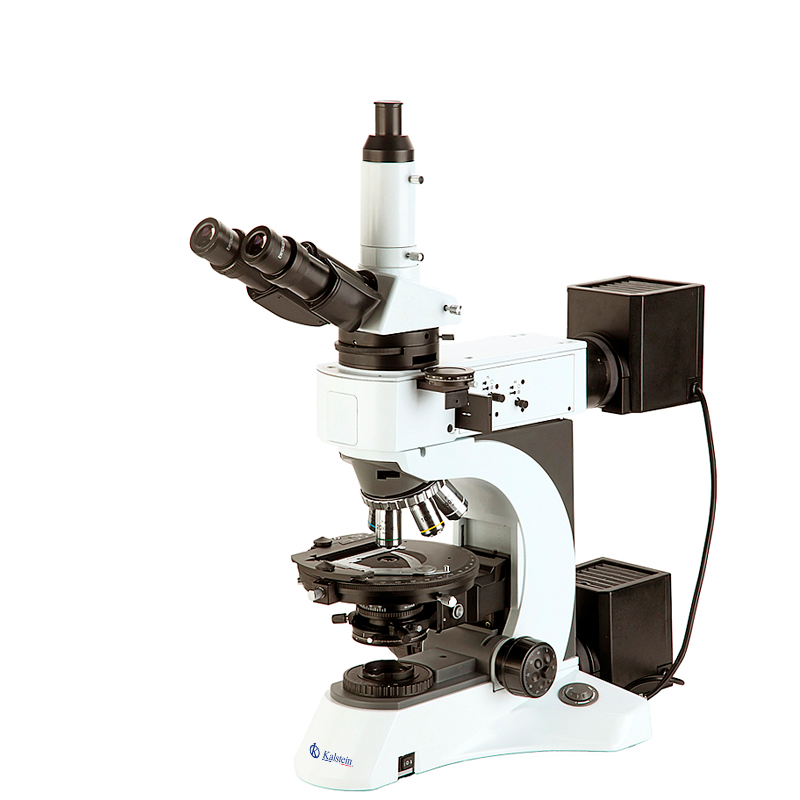

Polarizing Microscope YR0262 - YR0263
Polarizing Microscope YR0262 - YR0263 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
- Quintuple Nosepiece Center Adjustable
- LWD Strain-free Infinity Plan Objectives 5x10x40x100x
- Round Stage Dia.170mm Center Adjustable
- Analyizer Unit With Bertrand Lens, λ Slip, 1/4λ Slip, Quartz Wedge
- Transmit & Reflect Halogen 24V100W Brightness Adjustable
Technical Specifications
| Model | YR0262 | YR0263 | ||||
| Optical System | Infinity Optical System | |||||

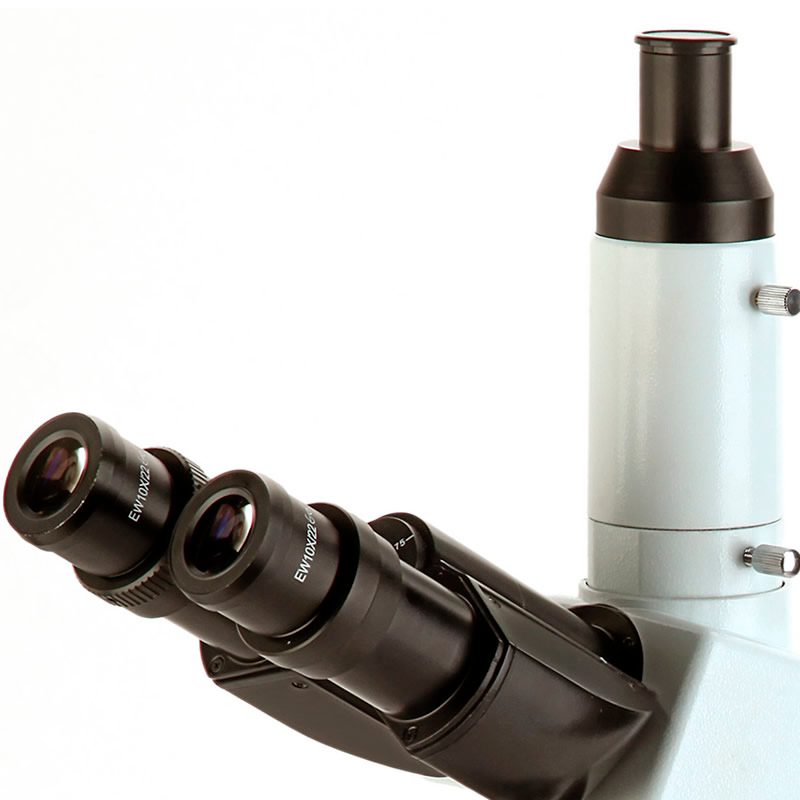

| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | |||||
| Eyepiece | Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |||||
| Plan Eyepiece With Scale of Crosshair | ||||||
| Plan Eyepiece With Cross | ||||||
| Plan Eyepiece With Gridding | ||||||
| Nosepiece | Backward Quintuple Nosepiece | |||||

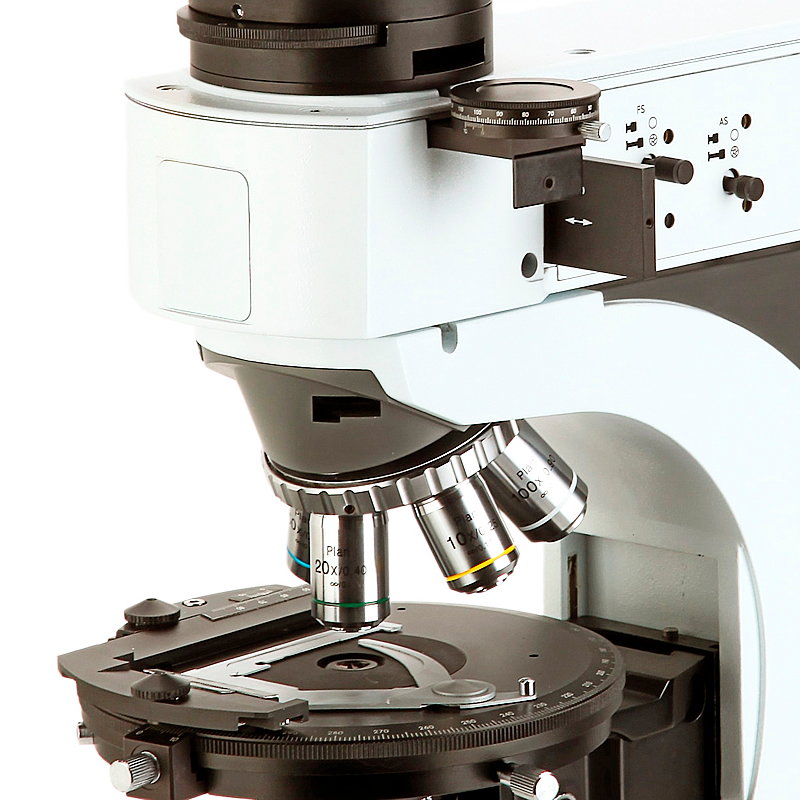

| Objective | Strainfree LWD Infinity Plan Achromatic Objective | 5x/0.12/∞/- W.D.15.5mm | ||||
| 10x/0.25/∞/- W.D.10mm | ||||||
| 20x/0.4/∞/0 W.D.4.3mm | ||||||
| 50x/0.75/∞/0 W.D.0.32mm | ||||||
| 100x/0.8/∞/0 W.D.2mm | ||||||
| Strainfree Infinity Plan Achromatic Objective | 40x/0.65/∞/0.17 W.D.0.54mm | - | o | |||
| 100x/1.25/∞/0.17 W.D.0.13mm | - | o | ||||
| Nosepiece | Backward Quintuple Nosepiece, Center Adjustable | |||||
| Analyzer | 360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernial Scale) | |||||
| --Switch Between Orthoscopic And Conoscopic Observation | ||||||
| --Bertrand Lens Postion Adjustable | ||||||
| --Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge | ||||||
| Working Stage | Polarizing Rotatable Stage, Dia.170mm, Center Adjustable | |||||
| 360° Scale, Minimum Division 1° | ||||||
| Minimum Reading 6' By Means of Vernial Scale | ||||||
| 45° Click Stop Knob | ||||||
| Condenser | Strainfree Swing Condenser N.A.0.95/0.25 | |||||

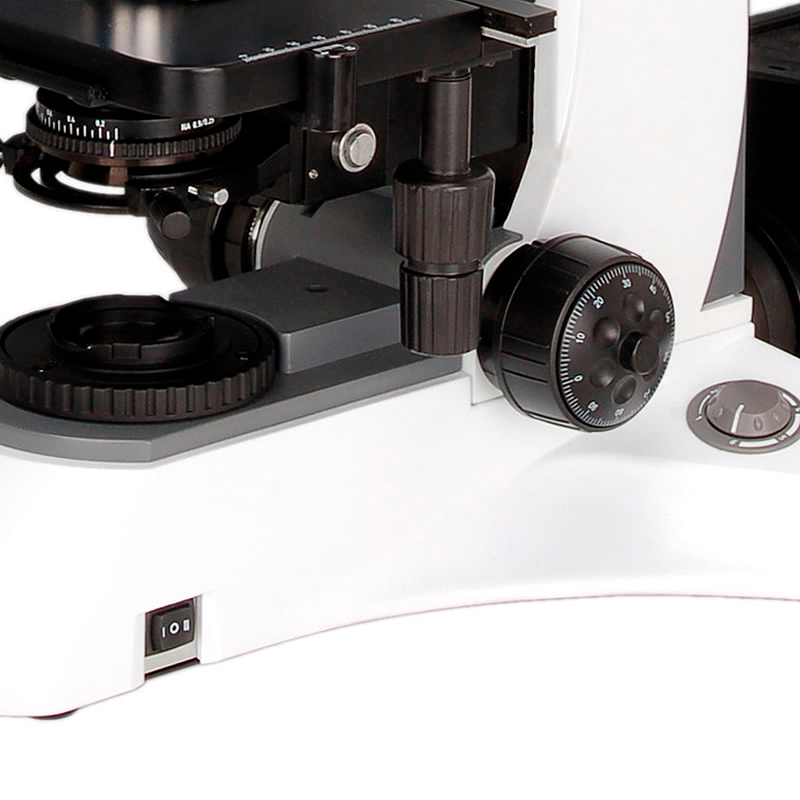

| Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation | |||||
| Polarizer | For Reflect: Fixed Polarizer | |||||
| For Transmit: 360° Rotatable Polarizer, 0° Position Adjustable | - | o | ||||
| Illumination | Reflect Light Halogen Lamp 24V100W, Brightness Adjustable | |||||
| Transmit Light Halogen Lamp 24V100W,Brightness Adjustable | - | o | ||||
| Blue Filter, Dia.45mm | ||||||
| Reflect, Reflect & Transmit Polarizing Microscope Optional Accessories | ||||||
| Stage | Attachable Stage, Moving Range 30*40mm | YR0263-op1 | ||||
| Filter | For | Netural Filter ND25, Dia.45mm | YR0263-op2 | |||
| Transmit Light: | Netural Filter ND6, Dia.45mm | YR0263-op3 | ||||
| For | Blue Filter, Dia.25mm | YR0263-op4 | ||||
| Reflect Light: | Netural Filter ND25, Dia.25mm | YR0263-op5 | ||||
| Netural Filter ND6, Dia.25mm | YR0263-op6 | |||||
| Adapter | Photo Adapter | YR0263-op7 | ||||
| C-Mount 1.0x | YR0263-op8 | |||||
| C-Mount 0.5x | YR0263-op9 | |||||
Technical specifications
| Weight | 16.5 kg |
|---|---|
| Manufacturer | Kalstein |
