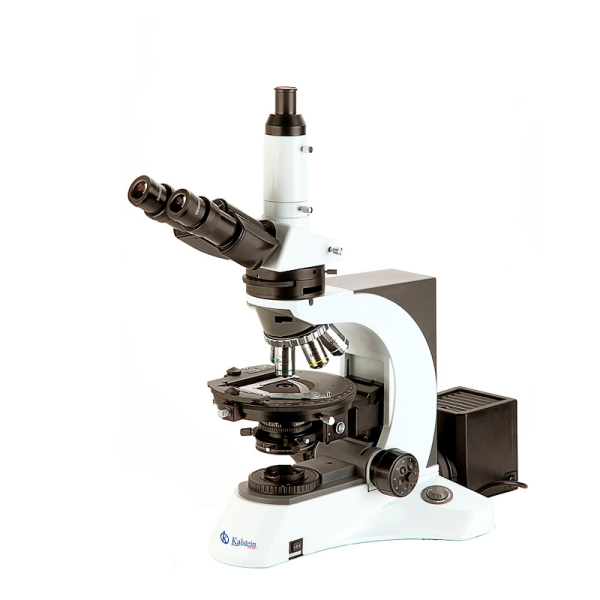

Polarizing Microscope YR0261

ManufacturerKalstein

Description

The Polarizing Microscope YR0261 is an advanced optical instrument designed for precise and detailed observation in polarized light. This microscope boasts a quintuple nosepiece center that is adjustable, coupled with strain-free infinity plan objectives ranging from 4x to 100x, ensuring high-quality, distortion-free imagery. Its large, round stage with a diameter of 170mm is center adjustable, providing flexibility and ease of use. The YR0261 is equipped with an analyzer unit featuring a Bertrand lens, λ slip, 1/4λ slip, and quartz wedge components for enhanced analytical capabilities. Additionally, its transmit halogen illumination system, rated at 24V100W with adjustable brightness, ensures clear and bright visualization of samples. Perfect for laboratories focused on geological, biological, or material sciences, this microscope offers the robust features needed for thorough analysis.

Price in the Market

The average market price for polarizing microscopes such as the YR0261 varies, typically ranging from $4,000 to $4,800 USD. This range reflects the advanced optical components, durable build quality, and specialized lighting systems that are hallmarks of high-grade polarizing microscopes.

Frequently Asked Questions

What makes the YR0261 suitable for professional use? The YR0261 is engineered with high-quality optics, a robust build, and advanced features like adjustable illumination and multiple observation modes, making it ideal for professional laboratory environments.

Can this microscope be used for both education and research? Yes, its versatile design and precision make it suitable for educational purposes as well as detailed scientific research.

What are the main applications of a polarizing microscope? Polarizing microscopes are primarily used in fields like geology, biology, and materials science to study crystal structures, mineral compositions, and stress patterns in materials.

Advantages and Disadvantages

Advantages: The YR0261 offers exceptional optical clarity, a wide range of magnification options, and a versatile stage and lighting system. Its high build quality ensures durability and reliability.

Disadvantages: The complexity and cost may be higher than simpler microscopes, which may not be ideal for every educational setting or budget.

Use of Product in the Field

The Polarizing Microscope YR0261 is used extensively in laboratories studying rock formations, mineral properties, and other geological samples. It assists researchers in identifying mineral content and crystal structures. Additionally, it is utilized in biology to examine structures that exhibit double refraction, aiding in the study of cellular components and fibers.

Recommendations

To maximize the utility and longevity of the YR0261, it is recommended to regularly calibrate and clean the optical components. Utilize the adjustment features to enhance image clarity for different sample types and lighting conditions. For best results, consider employing advanced imaging techniques to take full advantage of the microscope’s capabilities.

Features

  • Quintuple Nosepiece Center Adjustable
  • Strain-free Infinity Plan Objectives 4x10x40x100x
  • Round Stage Dia.170mm Center Adjustable
  • Analyizer Unit With Bertrand Lens, λ Slip, 1/4λ Slip, Quartz Wedge
  • Transmit Halogen 24V100W Brightness Adjustable
  • Infinity Optical System
  • Seidentopf Trinocular Head, 30° Inclined
  • 360° Dial Rotation Analyzer

Technical Specifications

Model YR0261
Objective Strainfree Infinity Plan Achromatic Objective 20x/0.4/∞/- W.D. 5.1mm YR0261-op1
Stage Attachable Stage, Moving Range 30*40mm YR0261-op1
Filter Netural Filter ND25 YR0261-op1
Netural Filter ND26 YR0261-op1
Adapter Photo Adapter YR0261-op1
C-Mount 1.0x YR0261-op1
Items YR0261
Optical System Infinity Optical System

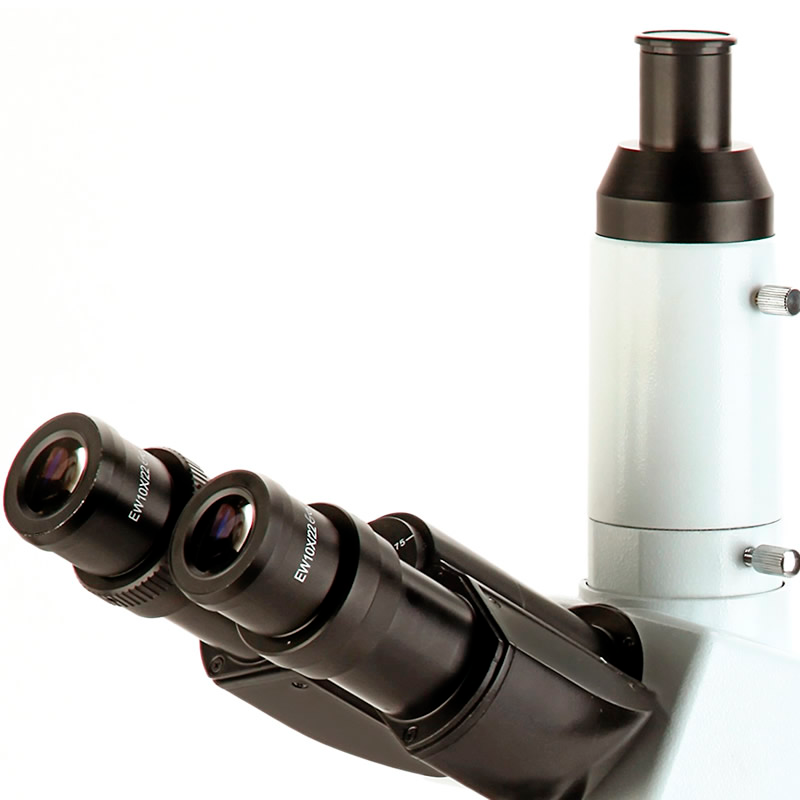

Head Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable
Eyepiece Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm
Plan Eyepiece With Scale of Crosshair
Plan Eyepiece With Cross
Plan Eyepiece With Gridding

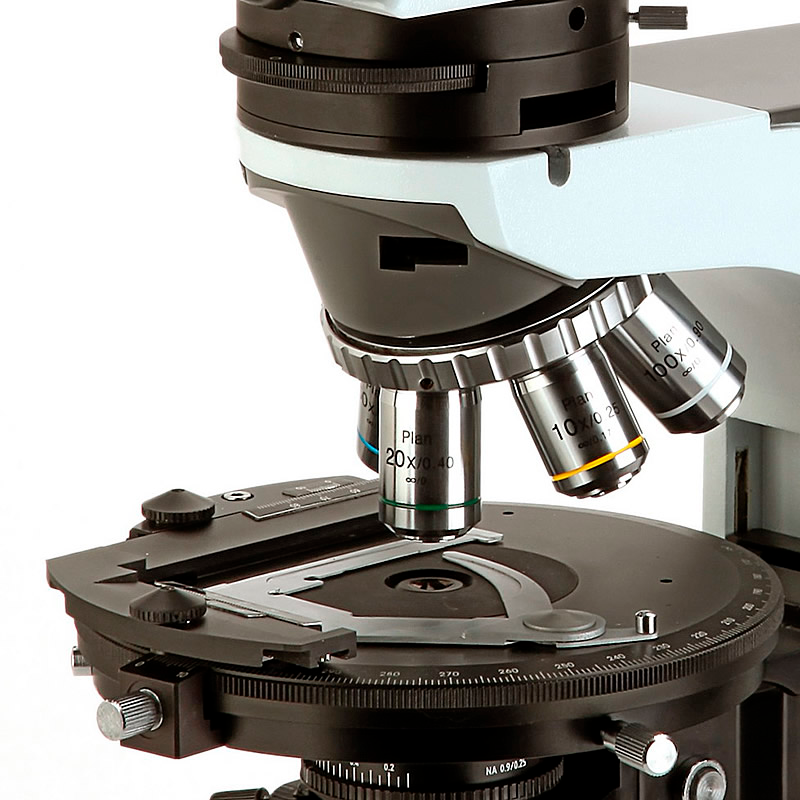

Objective Strainfree Infinity Plan Achromatic Objective
4x/0.10/∞/- W.D.17.3mm
10x/0.25/∞/0.17 W.D.10mm
40x/0.65/∞/0.17 W.D.0.54mm
100x/1.25/∞/0.17 W.D.0.13mm
Nosepiece Backward Quintuple Nosepiece, Center Adjustable
Analyzer 360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernial Scale)
Switch Between Orthoscopic And Conoscopic Observation
Bertrand Lens Postion Adjustable
Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge
Working Stage Polarizing Rotatable Stage, Dia.170mm, Center Adjustable
360° Scale, Minimum Division 1°
Minimum Reading 6′ By Means of Vernial Scale
45° Click Stop Knob
Condenser Strainfree Swing Condenser N.A.0.95/0.25

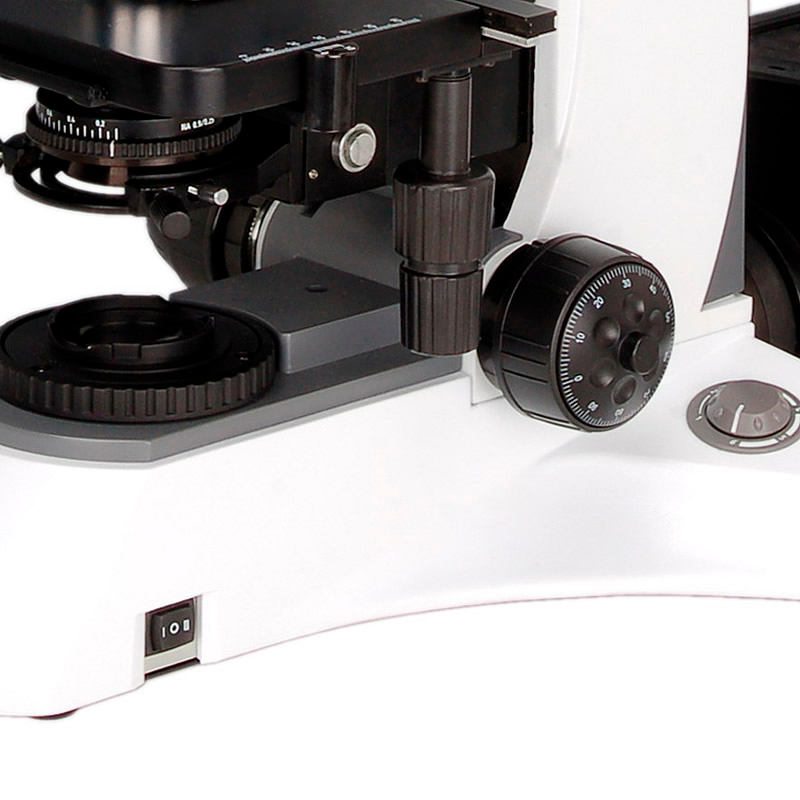

Focusing Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation
Polarizer 360° Rotatable, 0° Position Adjustable
Filter Blue Filter, Dia.45mm
Illumination Transmit Illumination Halogen Lamp 24V100W, Brightness Adjustable

Additional information

Weight 16,5 kg
