Description

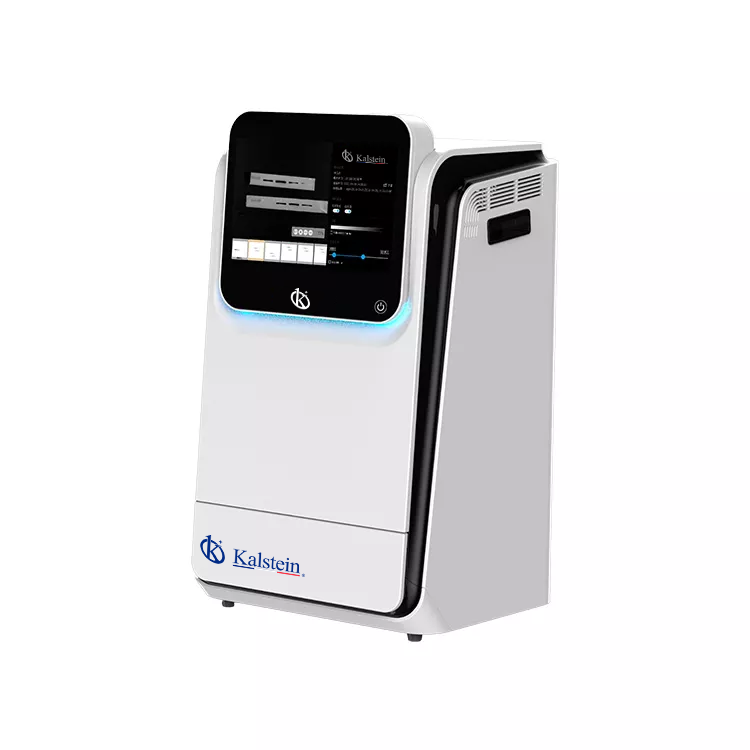

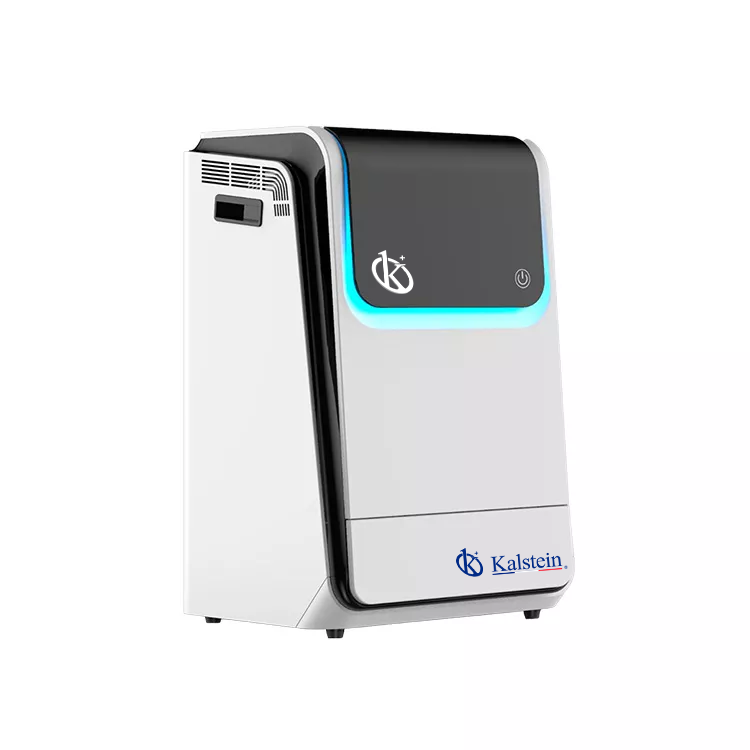

The Multifunctional Imager YR06210-YR06211 is a state-of-the-art imaging solution designed for high-performance detection across visible light (RGB), far red/near infrared (FR/NIR) fluorescence, and chemiluminescence applications. It seamlessly integrates cutting-edge technology with ease of use, featuring electronic lifting platforms to optimize the capture area for diverse sample sizes. With an optional removable PC that enhances operational flexibility and minimizes post-sale risks associated with embedded Windows Pads, this imager is tailored for meticulous gel documentation tasks.
Market Price
The price range for advanced imaging systems like the Multifunctional Imager YR06210-YR06211 typically spans between 25,000 USD to 26,300 USD. This makes it a competitive choice for laboratories seeking precision imaging without compromising the quality.
Frequently Asked Questions
Can the imager be used for both fluorescence and chemiluminescence imaging? Yes, the Multifunctional Imager YR06210-YR06211 supports both fluorescence and chemiluminescence imaging, as well as general gel documentation applications.
Does it require a PC for operation? While the imager operates independently, an optional removable PC enhances its usability and allows for more flexible data management.
Advantages and Disadvantages
The primary advantages include high sensitivity with a cooled digital camera, versatility across a wide range of applications, and user-friendly software allowing unlimited access. Potential disadvantages might be the initial investment cost and the need for regular software updates to ensure maintenance of optimal performance.
Product Use in the Field
In practical settings, the Multifunctional Imager YR06210-YR06211 is employed for detailed Western blot analyses, fluorescence imaging, and DNA/RNA detection in research laboratories. Its electronic lifting platform supports various sizes of western blot membranes, enhancing the accuracy of molecular biology experiments.
Recommendations
To maximize the benefits of the Multifunctional Imager YR06210-YR06211, it’s recommended to regularly calibrate the system and update the intuitive software. Additionally, using the optional removable PC can further augment the flexibility and data management capabilities.
Features
- Super sensitive Cooled digital Camera
- Wide range of applications
- Electronic lifting platform
- Optional removable PC
- Intuitive Software for unlimited users
Technical Specifications
| Model | YR06210 | YR06211 | |
|
Application
|
Chemilluminescence Imaging, ECL Western Blotting | YES | YES |
| Fluorescence Imaging, Fluorescent Western Blotting | YES | YES | |
| Gel Doc Application | YES | YES | |
| Protein gel；SDS Pages | YES | YES | |
|
Standard Parameters
|
Sensor | Back illuminated SCMOS Sensor | Front illuminated CCD Sensor |
| Resolution | 9.0Megapixels | 6 Megapixels | |
| Pixel Size | 3.76 × 3.76 μm | 4.54 x 4.54 μm | |
| Temperature | -30 °C regulated | ||
| Dynamic Range | 4.8OD | ||
| Pixel density | 16bit(65536 Grey scales) | ||
| Lens | F0.95 as standard (optional F0.8) Auto focus | ||
| Chemilluminescence Sample tray | Electronic Lifting Platform for diverse sizes of western blotting membranes | ||
| DNA/RNA detection | Electronic Lifting Blue LED Transmission for DNA/RNA detection | ||
| Protein gel；SDS Pages | Electronic Lifting White LED Transmission for Protein Gels | ||
| Software | SHST Capture and Analysis Software for unlimited number of users | ||
|
Optional Accessories
|
Epi-UV, RGB and NIR fluorescent detection | ||
| Removable industrial computer, 13.1 Inch Touch Screen, Intel processor | |||
