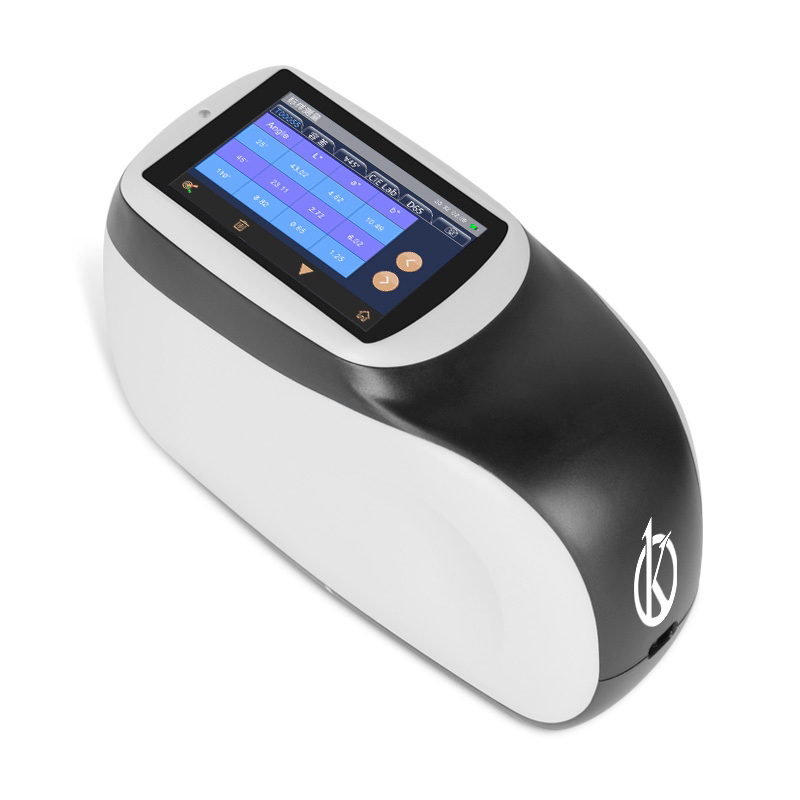

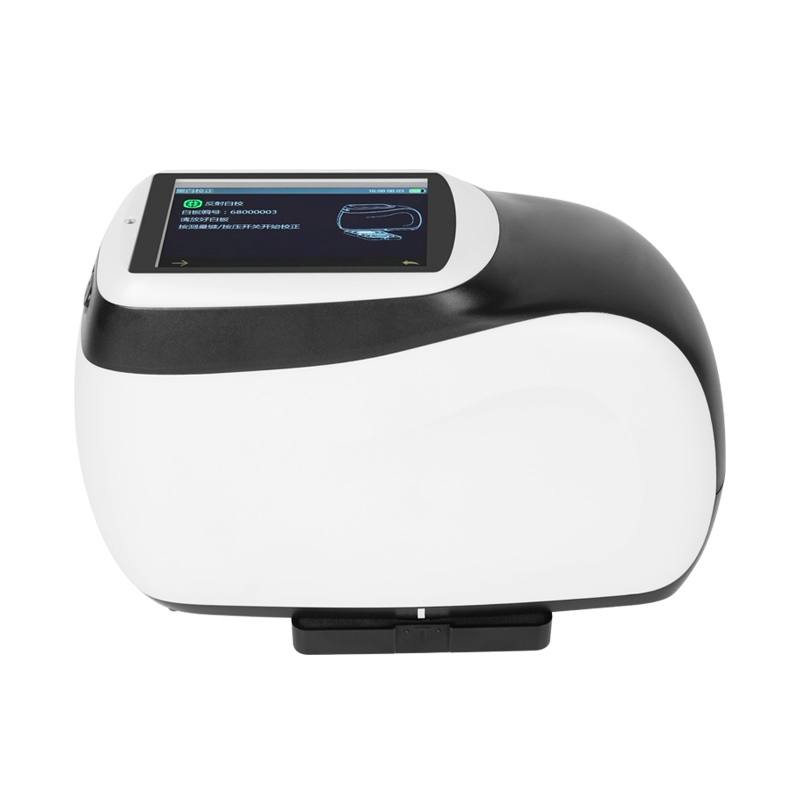

Multi-Angle Spectrophotometer with 8 Angles YR05491 // YR05492

The Multi-Angle Spectrophotometer with 8 Angles YR05491 // YR05492 is a cutting-edge instrument specifically designed for precise color measurement across multiple angles. This advanced spectrophotometer is equipped with industrial-grade microcontrollers and features up to 12 unique measurement angles, providing exceptional accuracy and consistency in color analysis, even on curved surfaces. It is the ideal tool for evaluating color differences in metallic, pearlescent, and other complex special effect coatings, making it an essential device for industries where color precision is critical.

Market Price

While the price of the Multi-Angle Spectrophotometer typically falls within the premium range, the investment ensures long-term reliability and results. In the market, similar products range from around $29,700 to $30,500 USD, reflecting the high-quality components and advanced technology incorporated in this model. For precise pricing, we encourage you to generate a personalized quotation.

Frequently Asked Questions

How does the spectrophotometer manage various angles? The device uses multiple illumination sources and receivers to simultaneously capture data at different measurement angles, ensuring comprehensive color analysis. Is the spectrophotometer compatible with international standards? Yes, it adheres to several international standards, including ASTM and ISO, making it suitable for global applications. What is the lifespan of the spectrophotometer's light source? The full spectrum LED light source with blue enhancement is designed to last approximately five years or up to three million measurements.

Advantages and Disadvantages

Advantages: The spectrophotometer offers high precision and repeatability, excellent user interface with a touch screen, and a wide range of light sources and measurement conditions. Disadvantages: Due to its advanced features, the device has a higher initial cost compared to simpler color measurement tools, which might be a consideration for smaller businesses.

Product Usage in the Field

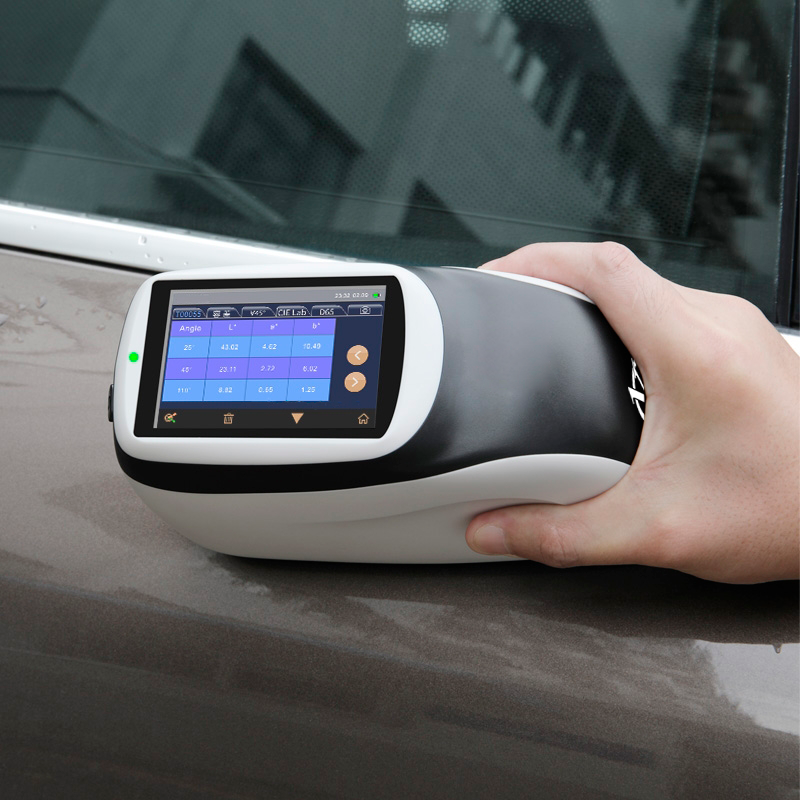

This spectrophotometer is widely used in quality control environments within automotive, industrial coatings, and manufacturing sectors, where precise color matching and consistency are paramount. Its ability to measure on a variety of surfaces and under different lighting conditions makes it indispensable for ensuring product quality and customer satisfaction.

Recommendations

To maximize the use of this spectrophotometer, it is recommended to perform regular calibration and maintenance as specified in the user guide. Utilizing Kalstein Plus for software updates and technical support will help maintain optimal performance. Request a demonstration or generate an automatic quotation through the Kalstein Plus platform to explore how this instrument fits your specific needs.

Features

• Multi-angle measurement with up to 12 angles
• 256 Image Element Double Array CMOS Image Sensor
• Full spectrum LED light source with blue enhancement
• Intuitive touch screen for data display
• Comprehensive compatibility with international standards
• Built-in color camera for precise area measurement
• Data transfer via USB and Bluetooth 5.0
• Measurement spaces include CIE LAB, XYZ, Yxy, LCh, and DIN Lab99
• Supports a wide range of light sources including D65, A, C, and others

Technical Specifications

Model	YR05491	YR05492
Measurement Geometry	8 measurement angles (6 illumination sources, 2 receivers)	12 measurement angles (7 illumination sources, 2 receivers)
Measure Angle	45° Receiver:	45° Receiver:
	45as-15°,45as15°,45as25°,45as45°,45as75°,45as110°	45as-15°,45as15°,45as25°,45as45°,45as75°,45as110°
	15°Receiver:	15°Receiver:
	15as-45°,15as-15°	15as-45°,15as-15°,15as15°,15as-30°,15as45°,15as80°
	Conform to the standards: ASTM D 2244,E 308,E 1164,E 2194,	Conform to the standards: ASTM D 2244,E 308,E 1164,E 2194,
	E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4	E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4
SAE J 1545	SAE J 1545
Application	Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products	Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products
Light Source	Full spectrum LED light source with blue enhancement	Full spectrum LED light source with blue enhancement
Lamp Life	5 years, 3 million times measurements	5 years, 3 million times measurements
Spectrophotometric Mode	Concave Grating	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400nm-700nm	400nm-700nm
Wavelength Interval	10nm	10nm
Measurement Range	0~600%	0~600%
Semiband Width	10nm	10nm
Measuring Aperture	Φ12mm	Φ12mm
Color Space	CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99	CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
Color Difference Formula	ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175	ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175
Other Colorimetric Index	Flop Index, Int-Em	Flop Index, Int-Em
Observer Angle	2°/10°	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF), F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF), F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Display	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value
Measuring Time	Approx. 1 second for one angle	Approx. 1 second for one angle
	Approx. 8 seconds for all angles	Approx. 12 seconds for all angles
Repeatability	Spectral reflectance: Standard deviation within 0.08%	Spectral reflectance: Standard deviation within 0.08%
	Chromaticity value: ΔE*ab 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)	Chromaticity value: ΔE*ab 0.02 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Reproducibility	ΔE*<0.10,avg on the gray tile of BCRA tile set	ΔE*<0.10,avg on the gray tile of BCRA tile set
	ΔE*<0.25,avg on the color BCRA tile set	ΔE*<0.25,avg on the color BCRA tile set
Inter-instrument Error	0.18ΔE*00(avg on reference Series II BCRA tile set)	0.18ΔE*00(avg on reference Series II BCRA tile set)
Effect Parameters	Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV)	Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV)
Effect Measurement	6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80°	6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80°
	15d Diffuse coarseness(DC)	15d Diffuse coarseness(DC)
Effect Repeatability	Sparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)	Sparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
	Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)	Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Effect Reproducibility	Sparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations)	Sparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations)
	(avg on reference Series II BCRA tile set)	(avg on reference Series II BCRA tile set)
	Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set)	Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set)
Trigger mode	Pressure sensing trigger, button trigger, software trigger	Pressure sensing trigger, button trigger, software trigger
Measuring Mode	Single measurement, average measurement (1-99), continuous measurement (1-99)	Single measurement, average measurement (1-99), continuous measurement (1-99)
Locating Mode	Color camera preview	Color camera preview
Dimension	L*W*H=195X83X128mm	L*W*H=195X83X128mm
Weight	About 1Kg	About 1Kg
Power	lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge	lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge
Display	3.5-inch TFT color LCD, Capacitive Touch Screen	3.5-inch TFT color LCD, Capacitive Touch Screen
Interface	USB, Bluetooth 5.0	USB, Bluetooth 5.0
Data Storage	1000 pcs Standards,4000 pcs Samples	1000 pcs Standards,4000 pcs Samples
Language	Simplified Chinese, Traditional Chinese, English	Simplified Chinese, Traditional Chinese, English
Operating Environment	10℃ to 50℃, humidity does not exceed 85%, no condensation	10℃ to 50℃, humidity does not exceed 85%, no condensation
Storage Environment	-20℃ to 50℃, humidity does not exceed 85%, no condensation	-20℃ to 50℃, humidity does not exceed 85%, no condensation
Calibration	Built-in white board parameters, external white board, black light trap, color board	Built-in white board parameters, external white board, black light trap, color board
Calibration Interval	4 hours,8 hours,24 hours,Startup calibration	4 hours,8 hours,24 hours,Startup calibration

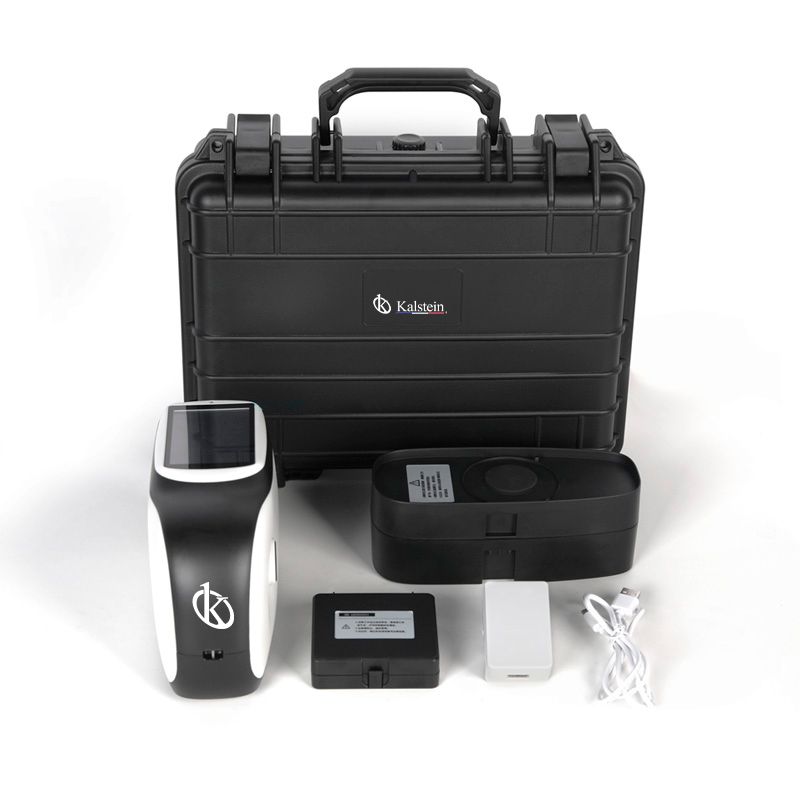

Standard accessories	Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband	Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband
Optional Accessory	Micro-printer	Micro-printer
Notes	Technical parameters are for reference only, subject to actual sales products.	Technical parameters are for reference only, subject to actual sales products.
