Description

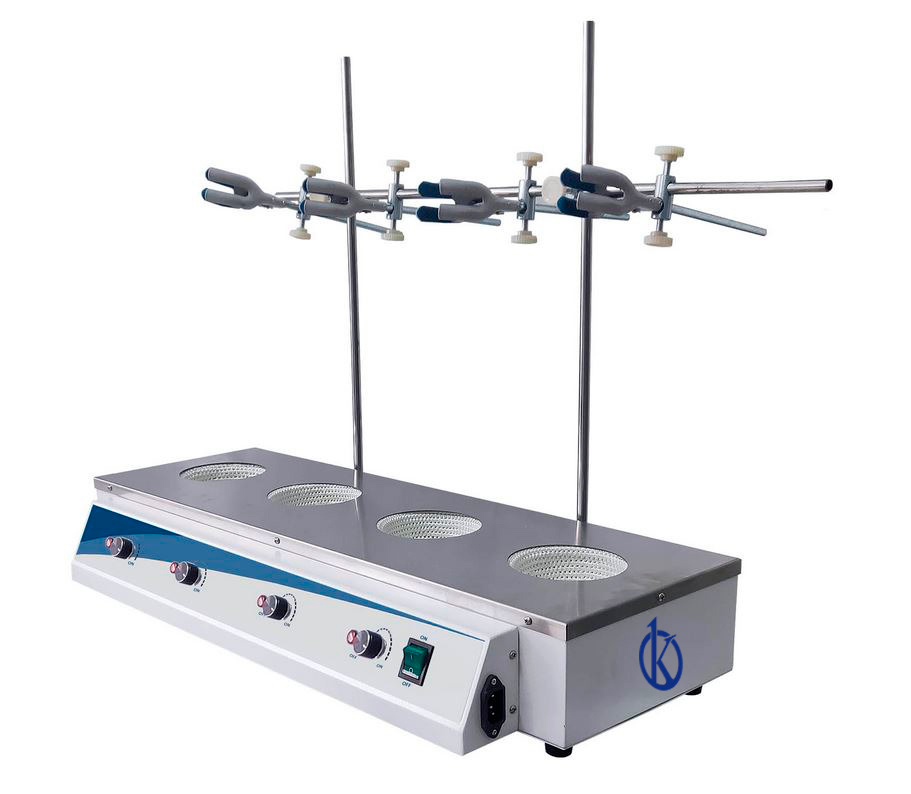

The Multi Heating Mantle YR05049 // YR05054 is specifically engineered to facilitate repetitive extraction processes such as Kjeldahl and Soxhlet, as well as laboratory reflux and distillation applications. With its space-saving design, it ensures efficient workspace utilization, while each heating unit offers independent and separate temperature control, essential for precision tasks. The soft glass fiber inner heating element ensures durability, preventing flask damage. Coupled with precise PID temperature control, this device meets the high accuracy needs of sophisticated experiments.
Market Price Overview
The average market price for the Multi Heating Mantle YR05049 // YR05054 ranges between $600 and $1,100, providing an accessible entry point for laboratories seeking reliable heating equipment without compromising quality. Prices fluctuate based on specific model features and vendor offerings.
Frequently Asked Questions
Q: What applications are suitable for this heating mantle? A: It is ideal for repetitive extraction, reflux, and distillation processes in laboratory settings.
Q: Can I control the temperature for each unit separately? A: Yes, each heating unit features independent temperature control to accommodate different experimental conditions.
Advantages and Disadvantages
The primary advantages of the Multi Heating Mantle include its compact design, precise temperature control, and durability of the heating elements. However, it is primarily designed for laboratory environments and may not be suitable for industrial-scale applications.
Field Usage
In practical applications, laboratories employ the Multi Heating Mantle for conducting precise and consistent extraction processes. Its accuracy and reliability make it an ideal choice for professional lab environments requiring stringent control over experimental variables.
Recommendations
To maximize the lifespan and efficiency of the Multi Heating Mantle, ensure regular maintenance and calibration checks. Additionally, always handle the heating elements with care to preserve their protective glass fiber coating.
Features
- Space-saving design
- Independent and separate temperature control
- Durable soft glass fiber heating element
- Precise PID temperature control
Technical Specifications
| Type | Analog | |||||
| Model | YR05049 | YR05050 | YR050501 | YR05052 | YR05053 | YR05054 |
| Capacity (ml) | 3 x 250 ml | 3 x 500 ml | 3 x 1 000ml | 6 x 250 ml | 6 x 500 ml | 6 x 1 000ml |
| Voltage (V) | 200 – 240V / 50- 60Hz or 100 – 120V / 50 – 60Hz | |||||
| Max use Temperature (°C) | 380 | |||||
| Power (W) | 150×3 | 250×3 | 350×3 | 150×6 | 250×6 | 350×6 |
| Working Time | Continuous | |||||
| Exterior Size | 500 x 290 x 120 | 650x350x120 | 900x290x120 | 1 200x350x120 | ||
| Packing Size (mm) | 550 x 440 x 170 | 700x500x170 | 950x440x170 | 1 250x500x170 | ||
| Net Weight (Kg) | 8 | 14 | 8 | 14 | ||
| Gross Weight (Kg) | 10 | 16 | 10 | 16 | ||
