Description

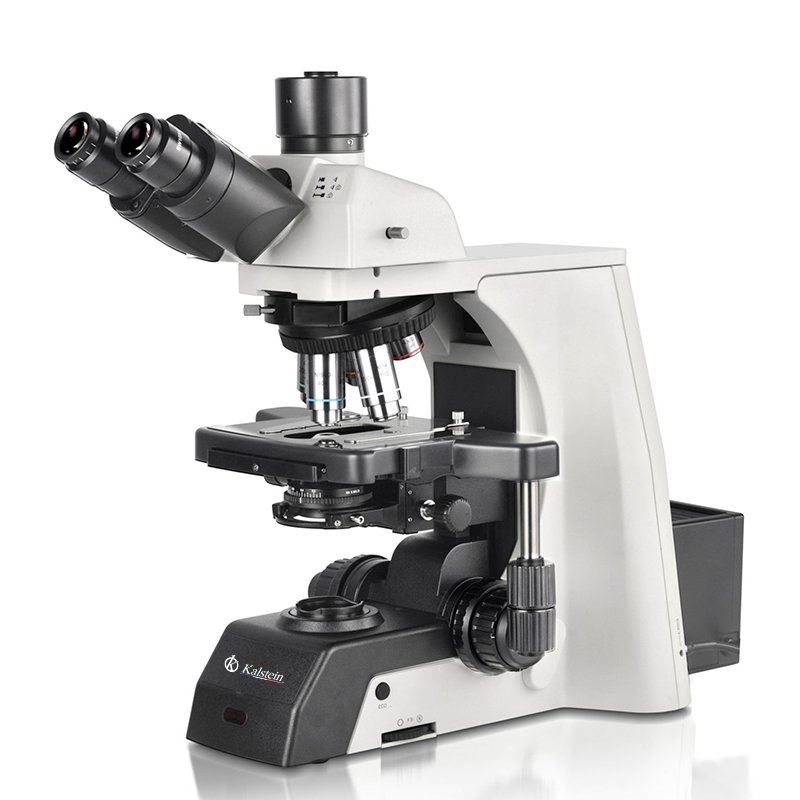

The Manual Halogen Laboratory Microscope YR0266A // YR0266C represents a cutting-edge advancement in scientific microscopy, designed to facilitate high-level research with efficiency and precision. This full auto motorized microscope is equipped with an electric platform, auto-focus functionalities, and an electric objective conversion, all controlled via a touch screen interface. Accompanied by powerful imaging software, it allows for seamless microscope observation, image acquisition, and processing. Notably, the system can recall previous settings, enhancing imaging accuracy and stability, and ensuring a fast and efficient laboratory workflow.
Market Price
The Manual Halogen Laboratory Microscope YR0266A // YR0266C is positioned within a competitive market, where advanced laboratory microscopes typically range from approximately 29,500 USD to 30,700 USD. This price range reflects the exceptional features and stable performance this microscope offers, making it a sophisticated choice for scientific research and educational institutions.
FAQs
Q: Is the microscope suitable for both educational and research purposes?
A: Yes, the YR0266A // YR0266C is designed to serve both educational settings and high-level research laboratories.
Q: Can I upgrade the microscope with additional features?
A: The microscope supports various optional accessories to enhance its capabilities, providing flexibility for evolving research needs.
Advantages and Disadvantages
Advantages:
– Full auto motorized operation boosts efficiency.
– Precise imaging software enhances data accuracy.
– Auto recall settings streamline repeated operations.
Disadvantages:
– The advanced features may entail a learning curve for new users.
Field Application
This microscope is ideally suited for dynamic laboratory environments where precision and efficiency are paramount. Its motorized components and imaging software facilitate rapid and repeatable operations, making it an asset for clinical and biological research.
Recommendations
To maximize the lifespan and performance of your microscope, regularly calibrate the instruments and ensure the software is up to date. Using the microscope within its recommended environmental conditions will ensure optimal performance.
Features
– Auto Motorized Platform
– Touch Screen Controller
– High Performance Imaging Software
– Recall of Last-Used Settings
– NIS60 Infinity Optical System
Technical Specifications
| Full Auto Motorized Research Level Scientific Laboratory Microscope | Accesory Number | YR0266A | YR0266B | YR0266C | |
| Optical System | NIS60 Infinity Optical System | ● | ● | ● | |
| Observation Method | Bright Field | ● | ● | ● | |
| Dark Field | ○ | ○ | ○ | ||
| Polarizing | ○ | ○ | ○ | ||
| Phase Contrast | ○ | ○ | ○ | ||
| Flourescent | ○ | ○ | ○ | ||
| DIC | ○ | ○ | ○ | ||
| Main Body | Manual Body + Halogen Illumination. | YR0266C-op1 | ● | – | – |
| Manual Body + LED Illumination. | YR0266C-op2 | ● | – | – | |
| Semi-Auto Body + Halogen Illumination. | YR0266C-op3 | – | ● | – | |
| Auto Nosepiece + Auto Condenser + Auto Brightness Adjust | |||||
| Semi-Auto Body + LED Illumination. | YR0266C-op4 | – | ● | – | |
| Auto Nosepiece + Auto Condenser + Auto Brightness Adjust | |||||
| Full Auto Body + LED Illumination. | YR0266C-op5 | – | – | ● | |
| Auto Nosepiece + Auto Brightness + Auto X/Y/Z Stage + Touch LCD Screen | |||||
| Head | Seidentopf Binocular Head, Inclined 30° | YR0266C-op6 | ○ | ○ | ○ |
| Interpupillary Distance 47-78 mm | |||||
| Seidentopf Trinocular Head, Inclined 30° | YR0266C-op7 | ● | ○ | ● | |
| Interpupillary Distance 47-78 mm | |||||
| 3 Level Light Split Switch E100:P0/E20:P80/E0:P100 | YR0266C-op8 | ||||

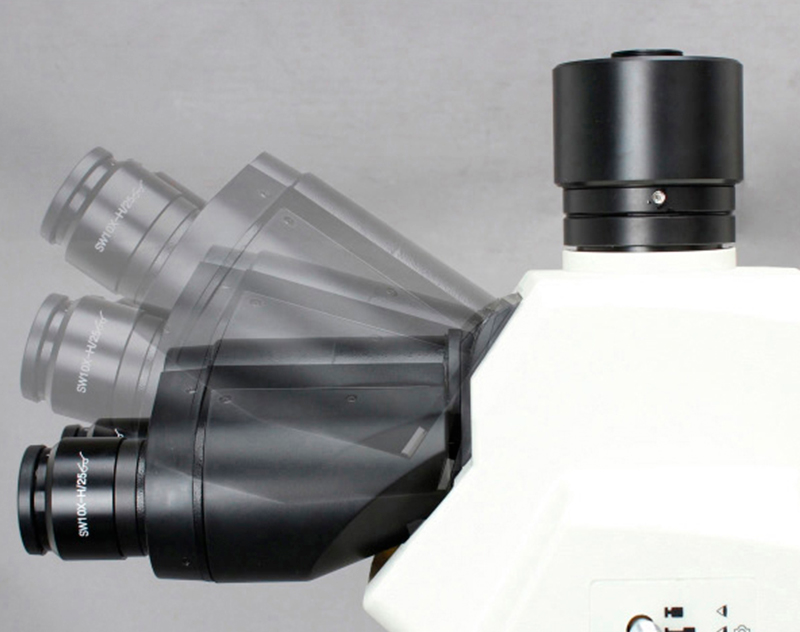

| Ergo Tilting Trinocular Head, Inclination 0°~35° | ○ | ● | ○ | ||
| Interpupillary Distance 47-78 mm | YR0266C-op9 | ||||
| 3 Level Light Split Switch E100:P0/E20:P80/E0:P100 | |||||
| Eyepiece | SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op10 | ●● | ●● | ●● |
| SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op11 | ○ | ○ | ○ | |
| EW12.5x/16mm, High Eyepoint | YR0266C-op12 | ○ | ○ | ○ | |
| WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op13 | ○ | ○ | ○ | |
| WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op14 | ○ | ○ | ○ | |

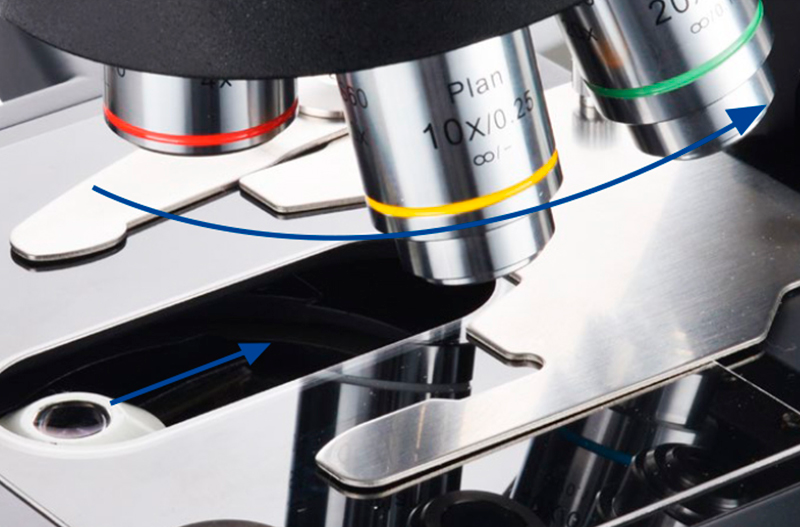

| Nosepiece | Manual Nosepiece, Quintuple, Backward, Center Adjustable | YR0266C-op15 | ○ | ○ | ○ |
| Manual Nosepiece, Sextuple, Backward | YR0266C-op16 | ● | – | – | |
| Coded Nosepiece, Sextuple, Backward, For Auto Brightness Adjust | YR0266C-op17 | ○ | – | – | |
| Auto Coded Nosepiece, Sextuple, Backward | YR0266C-op18 | ○ | ● | ● | |

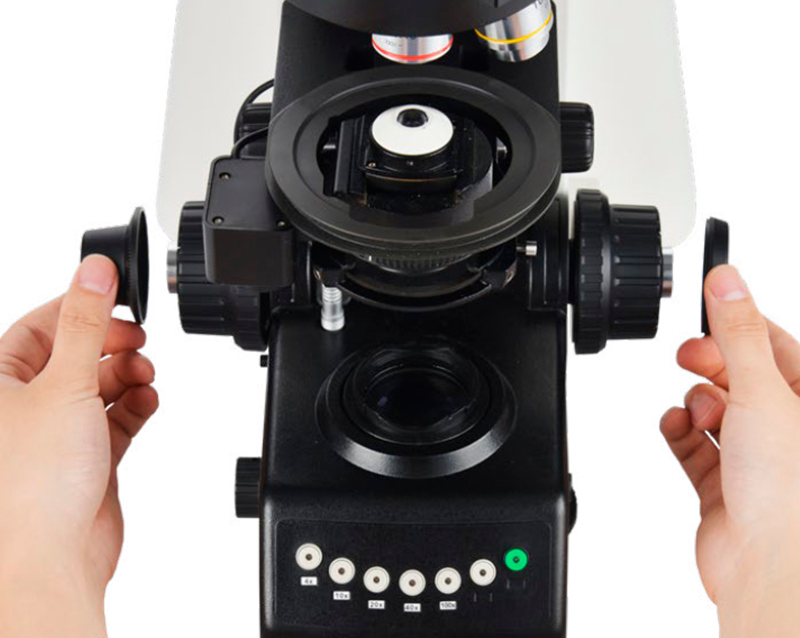

| Motorized Switch Objectives, Controlled By: | |||||
| 1. Shortcut Button On Right Side Of Base, Can Switch 2 Preset Objectives Quickly | |||||

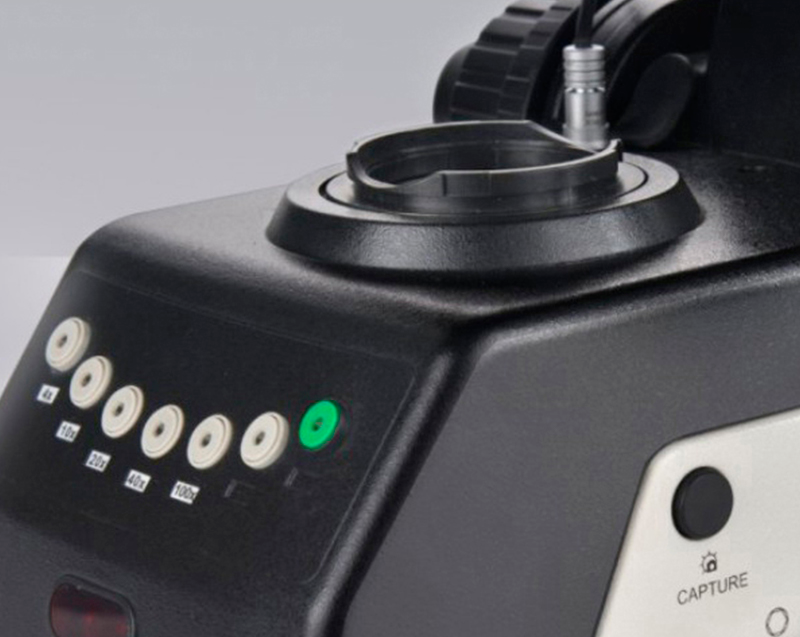

| 2. Remote Control Pad In Front Of Base, Press Each Button To Switch Objectives And Adjust The Light Intensity Automatically. 2 Buttons Can Be Self-Defined For Most Commonly Used Objectives, Press Green Button Can Swap Between Them | |||||
| With Slot For Polarizing Compensator Slider Or DIC Slider | ● | ● | ● | ||
| Protect Cover For Nosepiece Holes | YR0266C-op19 | ● | ● | ● | |

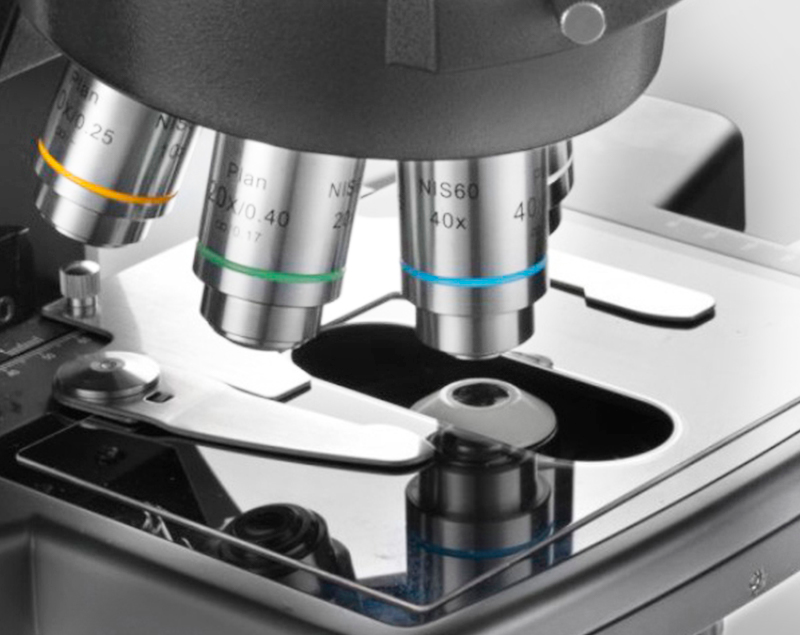

| NIS60 | 2x/0.06, W.D.7.5mm, Cover Glass 0.17mm | YR0266C-op20 | ○ | ○ | ○ |
| N-PLN | 4x/0.10, W.D.30mm, Cover Glass 0.17mm | YR0266C-op21 | ● | ● | ● |
| Infinity Plan Objective | 10x/0.25, W.D.10.2mm, Cover Glass 0.17mm | YR0266C-op22 | ● | ● | ● |
| 20x/0.40, W.D.12mm, Cover Glass 0.17mm | YR0266C-op23 | ● | ● | ● | |
| 40x/0.65, W.D.0.7mm, Cover Glass 0.17mm | YR0266C-op24 | ● | ● | ● | |
| 50x/0.95(Oil), W.D.0.19mm, Cover Glass 0.17mm | YR0266C-op25 | ○ | ○ | ○ | |
| 60x/0.8, W.D.0.3mm, Cover Glass 0.17mm | YR0266C-op26 | ○ | ○ | ○ | |
| 100x/1.25(Oil), W.D.0.2mm, Cover Glass 0.17mm | YR0266C-op27 | ● | ● | ● | |
| NIS60APO Infinity Plan | 20x/0.75, W.D.1.1mm, Cover Glass 0.17mm | YR0266C-op28 | ○ | ○ | ○ |
| 100x/1.45(Oil), W.D.0.13mm, Cover Glass 0.17mm | YR0266C-op29 | ○ | ○ | ○ | |
| Working Stage | Double Layer Mechanical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, Left Handle | YR0266C-op30 | ○ | – | ○ |
| Double Layer Mechanical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, Right Handle | YR0266C-op31 | ● | – | ○ | |
| Double Layer Mechanical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert, Left Handle | YR0266C-op32 | – | ○ | ○ | |
| Double Layer Mechanical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert, Right Handle | YR0266C-op33 | – | ● | ○ | |
| Low Position Control Knob, Height Adjustable Up/Down 18mm, Convex Point Guide Mechanism For Easily Put Slide By One Hand, With Tension Adjustable Ring, With Safety Stop Screw | – | ● | ● | – | |
| Full-Auto X/Y/Z Motorized Control Working Stage, Including Control Joy Stick, | YR0266C-op34 | ○ | ○ | ● | |
| –Travel Range X:125mm, Y:75mm | |||||
| –Minimum Step 0.1um | |||||
| –Re-Position Accuracy +/-1.5um | |||||
| –Max Speed 25mm/s | |||||
| –Size: 275x239x44.5mm | |||||
| –Soft Stop, Mechanical Stop, Opto-Electro Switch Stop | |||||
| –Z Axis Re-Position Accuracy: Average +/-1.5um, Near Focus +/-0.1um | |||||
| –Z Axis Max Speed 10r/s | |||||
| –3D Control Stick, 4 Speeds | |||||
| –Connection By USB2.0 & RS232 | |||||
| –Communication Speed 9600 bits | |||||
| Z Axis Upgrade With Optical Grating Ruler | YR0266C-op35 | ○ | ○ | ○ | |
| Condenser | Swing-Out Condenser NA0.9/0.25 | YR0266C-op36 | ● | – | – |
| Auto Swing-Out Condenser NA0.9/0.25 | YR0266C-op37 | ● | – | ||

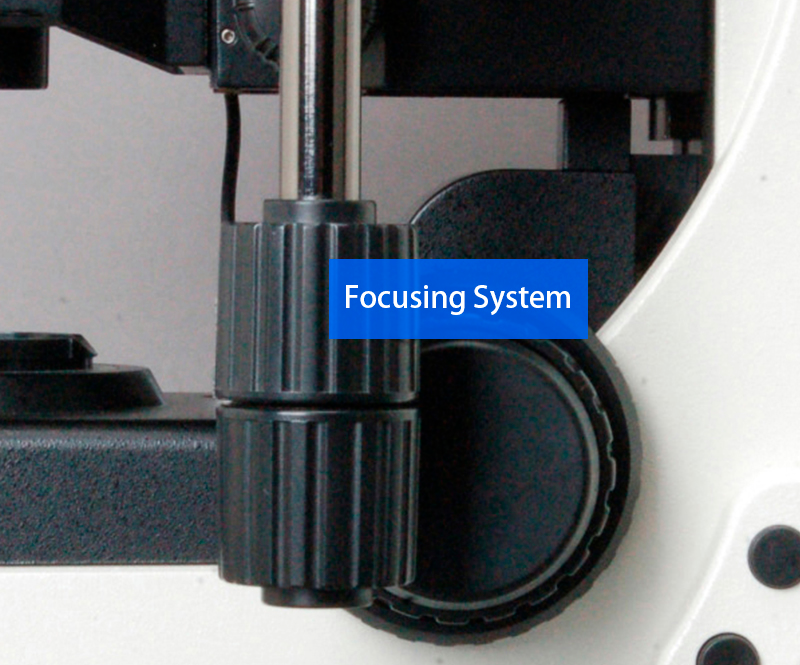

| Focusing | Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange Hand Wheel Between Left/Right | – | ● | ● | ● |
| Light Source | Transmit Kohler Illumination, Brightness Adjustable, | YR0266C-op38 | ● | ● | |
| 12V100W Halogen, External Lamp House | |||||
| Transmit Kohler Illumination, Brightness Adjustable, | YR0266C-op39 | ● | |||
| 3W S-LED, Built-in Main Body | |||||
| ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy | YR0266C-op40 | ● | ● | ● | |
| Auto Brightness Adjust, Brightness For Each Objective Can Be Memorized And Restored When Objective Is Selected | YR0266C-op41 | ○ | ● | ● | |
| (To Upgrade A12.1091 to Auto Brightness Adjust, Must Upgrade Its Nosepiece To A54.1091-6C Coded Nosepiece At Same Time) | |||||
| Filter For Transmit Light | Filter Holder On Base, Can Hold 3 Filters | YR0266C-op42 | ● | ● | ● |
| Filter LBD | YR0266C-op43 | ● | ● | ● | |
| Filter Green | YR0266C-op44 | ● | ● | ● | |
| Filter Yellow | YR0266C-op45 | ● | ● | ● | |
| Filter ND6 | YR0266C-op46 | ● | ● | ● | |
| Filter ND25 | YR0266C-op47 | ● | ● | ● | |
| Adapter | Eyepiece Adapter Dia.23.2mm | YR0266C-op48 | ○ | ○ | ○ |
| C-Mount 1.0x | YR0266C-op49 | ○ | ○ | ○ | |
| C-Mount 0.5x | YR0266C-op50 | ○ | ○ | ○ | |
| Software | NOMIS Basic Image Processing Software | YR0266C-op51 | ○ | ○ | ○ |
| Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | YR0266C-op52 | ○ | ○ | ○ |
| Dark Field Condenser, N.A. 1.25~1.36, Immersion | YR0266C-op53 | ○ | ○ | ○ | |
| Dark Field Objective, Infinity Plan 100X | YR0266C-op54 | ○ | ○ | ○ | |
| For Immersion Dark Field Observation | |||||
| Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm | YR0266C-op55 | ○ | ○ | ○ | |
| For Immersion Dark Field Observation | |||||
| Polarizing | Polarizer For Transmit Light Source, Swing-Out, On Collector | YR0266C-op56 | ○ | ○ | ○ |
| Analyzer For Transmit Light, Slide With Quartz Wedge Compensator | YR0266C-op57 | ○ | ○ | ○ | |
| Professional Polarizing Microscope | YR0266C-op58 | ○ | ○ | ||
| Phase Contrast | Turret Phase Contrast Condenser, Center Adjustable | YR0266C-op59 | ○ | ○ | ○ |
| Centering Telescope 10x | YR0266C-op60 | ○ | ○ | ○ | |
| Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25 | YR0266C-op61 | ○ | ○ | ○ | |
| Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40 | YR0266C-op62 | ○ | ○ | ○ | |
| Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65 | YR0266C-op63 | ○ | ○ | ○ | |
| Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil) | YR0266C-op64 | ○ | ○ | ○ | |
| DIC | Polarizer For Transmit Light Source | YR0266C-op65 | ○ | ○ | ○ |
| Turret DIC Condenser | YR0266C-op66 | ○ | ○ | ○ | |
| DIC Slide 10x, Used With Semi-APO Fluorescent Objective | YR0266C-op67 | ○ | ○ | ○ | |
| DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective | YR0266C-op68 | ○ | ○ | ○ | |
| DIC Slide 100x, Used With Semi-APO Fluorescent Objective | YR0266C-op69 | ○ | ○ | ○ | |
| DIC Slide With Analyzer 10x-20x | YR0266C-op70 | ○ | ○ | ○ | |
| DIC Slide With Analyzer 40x-100x | YR0266C-op71 | ○ | ○ | ○ | |
| NIS60 N-PLFN | 4x/0.13, W.D.16.5, Cover Glass 0.17mm | YR0266C-op72 | ○ | ○ | ○ |
| Semi-APO | 10x/0.3, W.D.8.1, Cover Glass 0.17mm | YR0266C-op73 | ○ | ○ | ○ |
| Fluorescent | 20x/0.5, W.D.2.1, Cover Glass 0.17mm | YR0266C-op74 | ○ | ○ | ○ |
| Objective | 40x/0.75, W.D.0.7, Cover Glass 0.17mm | YR0266C-op75 | ○ | ○ | ○ |
| For DIC | 100x/1.3, W.D.0.15, Cover Glass 0.17mm, Oil | YR0266C-op76 | ○ | ○ | ○ |
| Fluorescent | Fluorescent Microscope | YR0266C-op77 | – | ○ | ○ |
| Other Accessories | Working Stage Holder Bracket | YR0266C-op78 | ● | ● | ● |
| Adapter To Adjust Eye Position | YR0266C-op79 | ○ | ○ | ○ | |

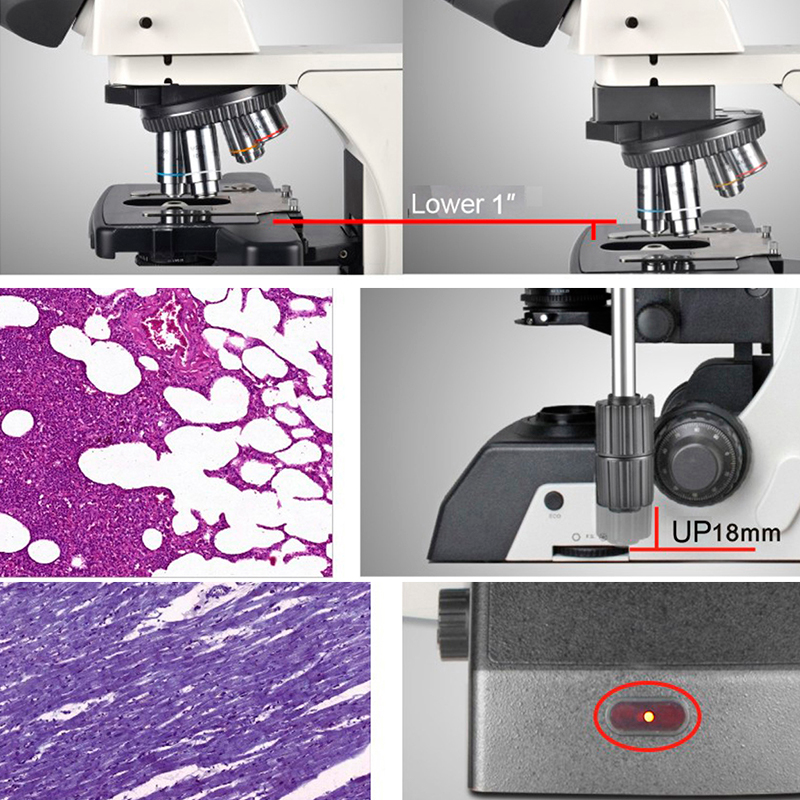

| Adapter To Lower The Stage Position 1″ | YR0266C-op80 | ○ | ○ | ○ | |
| Immersion Oil | YR0266C-op81 | ● | ● | ● | |
| Allen Wrench | YR0266C-op82 | ● | ● | ● | |
| Power Cord | YR0266C-op83 | ● | ● | ● | |
| Short Eye Cover, For Eyepiece | YR0266C-op84 | ○ | ○ | ○ | |
| Long Eye Cover, For Eyepiece | YR0266C-op85 | ○ | ○ | ○ | |
| Eyepiece Micrometer, Cross | YR0266C-op86 | ○ | ○ | ○ | |
| Adapter Ring To Install Eyepiece Micrometer | YR0266C-op87 | ○ | ○ | ○ | |
| USB Cable | YR0266C-op88 | ○ | ○ | ○ | |
| Note: “●” In Table Is Standard Outfits,”○” Is Optional Accessories “-” Is Unavailable | |||||
