Description

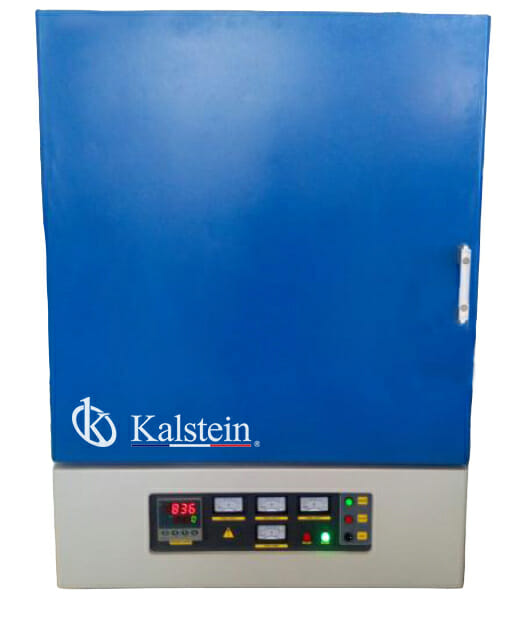

Laboratory Muffle Furnace YR05284-1 offers cutting-edge performance for your high-temperature needs. Featuring high-purity fibrous alumina insulation, this furnace maximizes energy savings by consuming 60-80% less power than traditional models. The robust double-layer structure, combined with an efficient cooling fan, ensures that external surfaces remain safe to touch, even at maximum temperatures. Whether you require precise control or consistent reliability, the YR05284-1 is designed to meet the exacting standards of modern laboratories.
Market Price
When considering the acquisition of a laboratory muffle furnace, prospective buyers will find market prices ranging from $13,700 to $14,500. This price range reflects the high-quality components and advanced technology embedded in the YR05284-1 model, ensuring it offers significant value for money in professional settings.
Frequently Asked Questions
What is the maximum temperature the furnace can reach?
The YR05284-1 can reach a maximum temperature of 1700 °C, ensuring it meets the requirements of a wide range of scientific and industrial applications.
Is the furnace safe to use?
Yes, the furnace features a heavy-duty double layer with a cooling fan to keep exterior surfaces safe to touch.
Advantages and Disadvantages
Advantages:
The YR05284-1 model offers precision temperature control, high thermal efficiency, and robust safety features. Its energy-saving design ensures long-term cost-effectiveness.
Disadvantages:
The initial cost might be an investment, but it compensates with significant energy savings over time.
Product Use in the Field
This furnace is ideal for applications such as material testing, ceramics, and metallurgy. Its precision temperature control, via PID automatic control, allows detailed program customization, making it a preferred choice in research and development environments.
Recommendations
For optimal performance, carefully follow the heating rate guidelines: up to 30 °C/min general heating, reducing to 10°C/min under 1400°C, 5°C/min for 1400°C-1600°C, and 2°C/min above 1600°C. Regularly inspect the furnace for any signs of wear and maintain the heating elements to extend the product lifespan.
Features
- Model: YR05284-1
- Rated Voltage: AC 380V 3 phase or 1 phase 50/60Hz
- Power: 18kw
- Chamber Size: 400x400x400mm, 64L
- Max. Temperature: 1700 °C
- Continuous Working Temperature: 1600 °C
- Temperature Accuracy: +/- 1°C
- Heating Element: MoSi2 heater
- Thermocouple: B type
- Temperature Controller: PID automatic control with auto-tune function
- Standard Parts: Includes reserve heater, crucible tongs, asbestos gloves, and a user manual
Technical Specifications
| Model | YR05284-1 |
| Rated voltage | AC 380V 3 phase or 1 phase 50/60Hz |
| Power | 18kw |
| Chamber size | 400x400x400mm, 64L |
| Max. Temperature | 1700 °C |
| Continuous working temperature | 1600 °C |
| Max. Heating Rate | 30 °C /min; Suggest to use 10°C/min under 1400°C, 1400°C-1600°C 5°C/min, >1600°C 2°C/min; |
| Temperature controller | PID automatic control and auto-tune function. 30 programmable segments for precise control. Built in protection for over-heating and broken thermocouple |
| Temperature Accuracy | +/- 1°C |
| Heating Element | MoSi2 heater |
| Thermocouple | B type |
| Standard parts | Reserve heater 2pcs, crucible tongs 1pc, asbestos gloves 1pair, one user manual |
