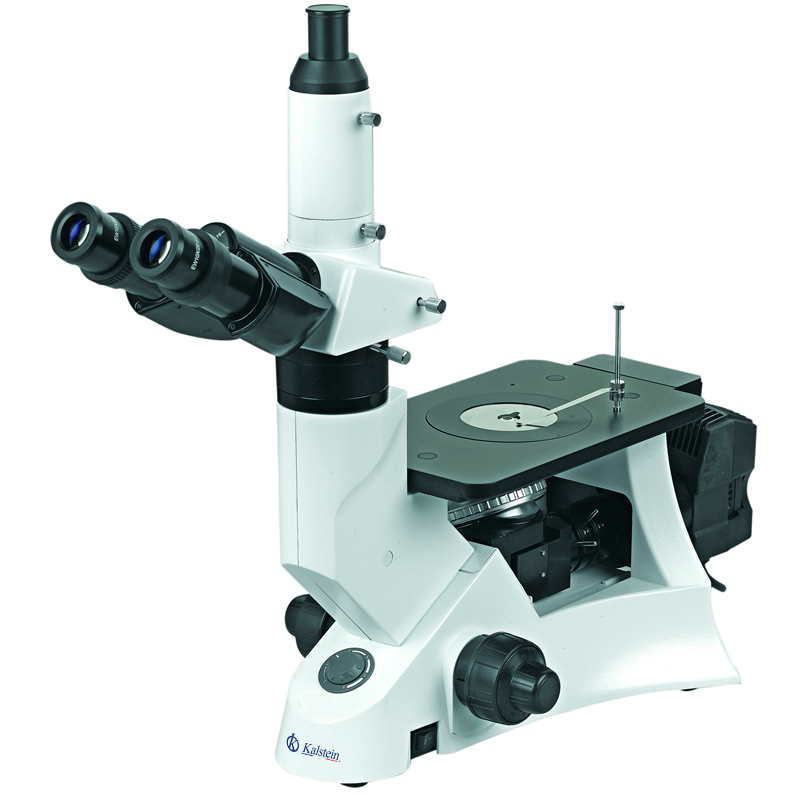

Inverted Metallurgical Microscope YR0258
Inverted Metallurgical Microscope YR0258 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Inverted Metallurgical Microscope YR0258 is an advanced tool designed to provide excellent image quality through its sophisticated infinity optical system. Ideal for laboratories and research institutions, this microscope allows for the precise identification of metal structures and various materials. Featuring a solid support structure, ergonomic stage design, and precise operation, it’s equipped with top-notch components like the Seidentopf Trinocular Head and high-quality extra wide field eyepieces. This makes it perfect for metallurgical analysis, material science, and industrial applications.
Market Price
The price range for high-quality inverted metallurgical microscopes like the YR0258 typically spans between 2500 USD and 3300 USD. This range can vary based on additional features, accessories, and warranty options. For the most accurate quote tailored to your needs, use our Kalstein Plus platform to generate a quote instantly.
Frequently Asked Questions
Q: Does the YR0258 microscope come with a warranty?
A: Yes, it includes a standard manufacturer’s warranty. For additional coverage options, please inquire upon purchasing.
Q: Can this microscope be connected to a digital camera?
A: Absolutely, the YR0258 is compatible with a range of adapters, including a photo adapter and various C-Mount options.
Advantages and Disadvantages
Advantages: The key benefits of the YR0258 include its superior image quality, durable construction, and versatility in metallurgical and material studies. It also features a polarizing attachment for enhanced analysis.
Disadvantages: Some users might find the initial setup complex if they are unfamiliar with advanced microscopes.
Product Usage in the Field
Inverted Metallurgical Microscopes like the YR0258 are crucial in metallurgical labs and manufacturing plants. They are used for quality control processes, metallurgy, and analyzing the microstructure of metals and materials. Its robust optics and adaptable configuration makes it suitable for both teaching and industrial environments.
Recommendations
To maximize the utility and lifespan of the YR0258, regular maintenance, including proper cleaning of optical components and ensuring that the illumination system is functioning properly, is essential. For enhanced performance, consider equipping the microscope with optional accessories like the mechanical stage or higher magnification objectives.
Features
- Infinity optical system for high-quality imaging
- Enhanced trinocular head with Seidentopf design
- Adjustable halogen lamp for variable brightness
- Versatile polarizing and filtering capabilities
- Wide range of optional accessories available
Technical Specifications
| Model | YR0258 | ||
| Optical System | Infinity Optical System | ||

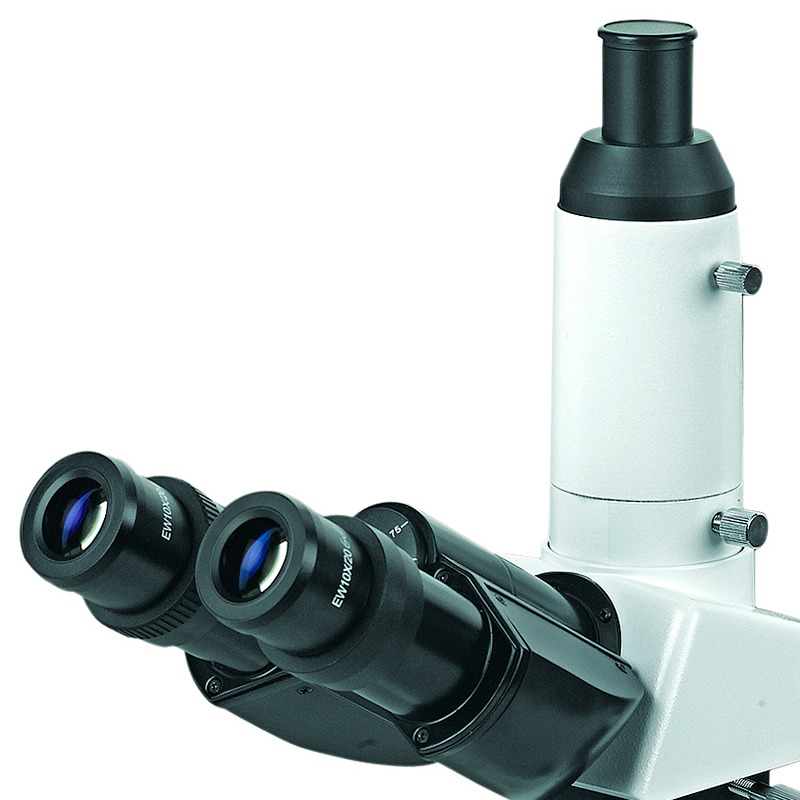

| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | ||
| Eyepiece | Extra Wide Field Eyepiece EW10x/20mm, High Eyepoint | ||
| Nosepiece | Quintuple Nosepiece | ||
| Objective | Infinity Plan MetallurgicalCoverless Achromatic Objective | 4x/0.1/∞/-, W.D.17.3mm | |
| 10x/0.25/∞/-,W.D.10.2mm | |||
| 20x/0.4/∞/-,W.D.5.1mm | |||
| 40x/0.65/∞/-, W.D.0.52mm | |||

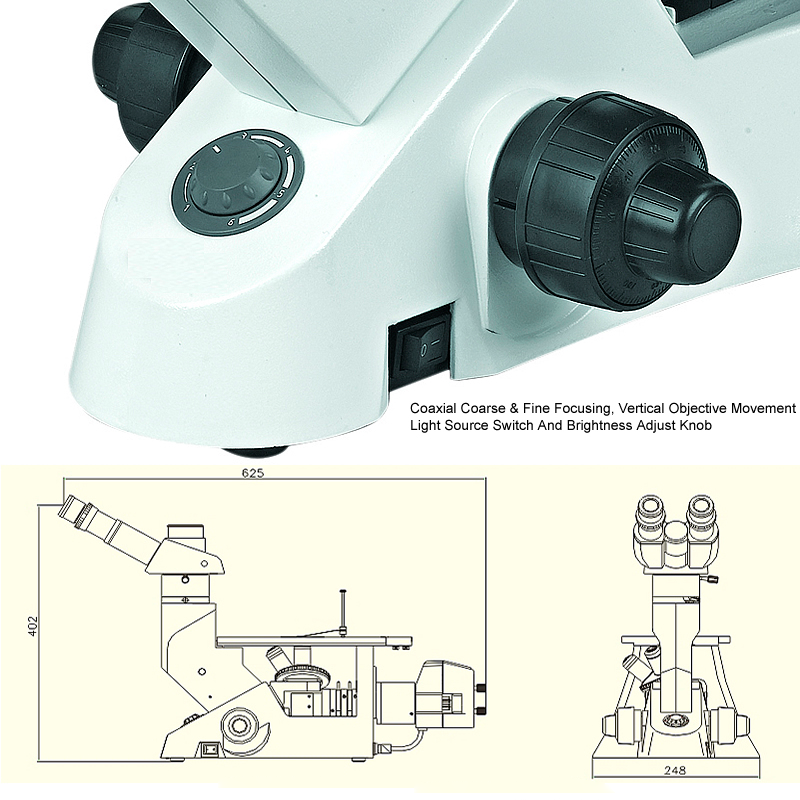

| Focusing | Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per Rotation | ||

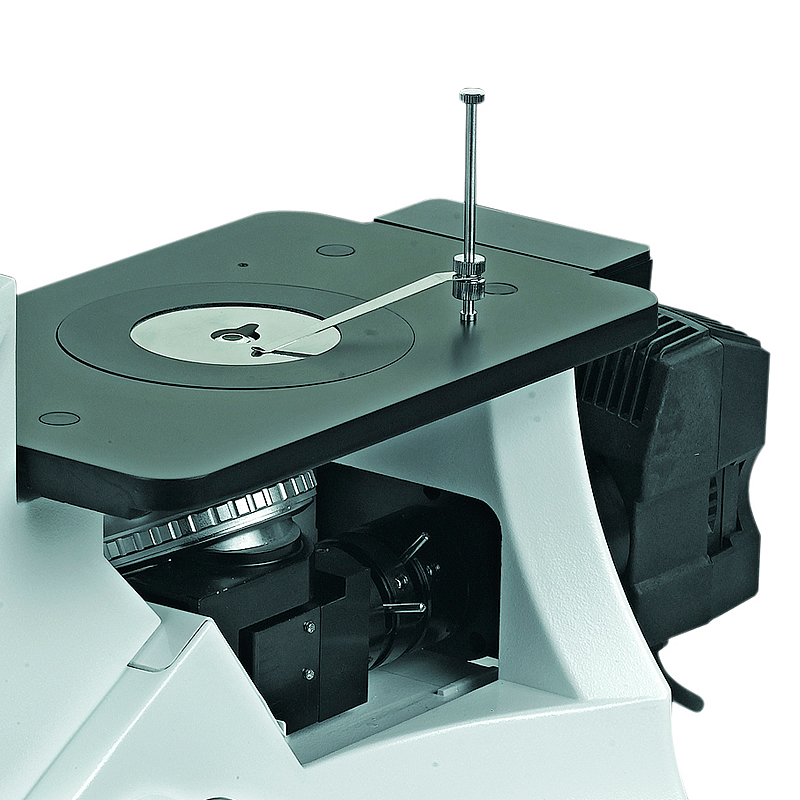

| Working Stage | Plain Stage 160*250mm With Slide Clips | ||
| Polarizing | Polarizing Attachment | ||
| Filter | Green, Blue, Yellow, Ground Glass, Dia.45mm | ||
| Illumination | External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable | ||
| Optional Accessories | |||
| Objective | Infinity Plan MetallurgicalCoverless Achromatic Objective | 5x/0.12/∞/-, W.D.15.4mm | YR0258-op1 |
| 50x/0.75/∞/-, W.D.0.32mm | YR0258-op2 | ||
| 80x/0.9/∞/-, W.D.0.20mm | YR0258-op3 | ||
| 100x/0.9/∞/0, W.D.0.7mm | YR0258-op4 | ||
| Working Stage | Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm | YR0258-op5 | |
| Auxiliary Stage 70*180mm | YR0258-op6 | ||
| Adapter | Photo Adapter | YR0258-op7 | |
| C-Mount 1.0x | YR0258-op8 | ||
| C-Mount 0.5x | YR0258-op9 | ||
Technical specifications
| Weight | 15 kg |
|---|---|
| Manufacturer | Kalstein |
