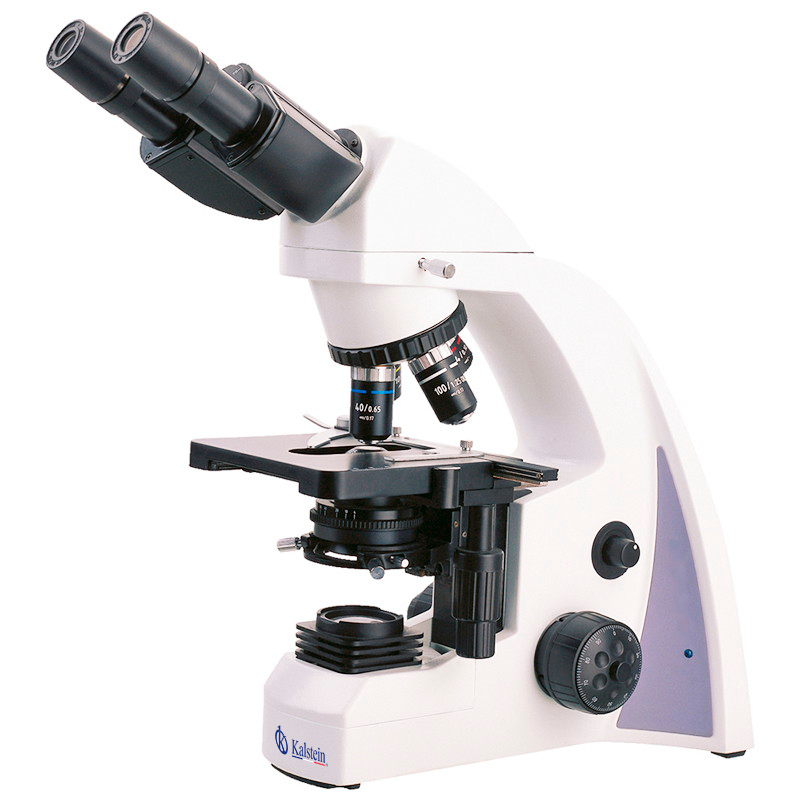

Laboratory Microscope YR0237
Laboratory Microscope YR0237 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Laboratory Microscope YR0237 is an advanced optical instrument designed for precision and clarity in biological and laboratory research. This microscope features a professional binocular head inclined at 30°, wide field eyepieces, and infinity semi-plan achromatic objectives that allow for superior image resolution. With its adjustable stage, fine focusing capabilities, and S-LED illumination with brightness control, this microscope ensures detailed observation and ease of use. Its durable design and high-quality optics make it an ideal choice for scientists and educators looking to observe specimens at a cellular level. Discover the perfect balance between functionality and innovation with the Laboratory Microscope YR0237.
Market Price
The cost of professional laboratory microscopes like the YR0237 varies significantly based on features and technical specifications. Typically, the price range for microscopes in this category is between 1,000 USD and 1,600 USD. This range provides a balance between affordability and high performance, ensuring users get the best value for their investment. For specific pricing details, you can generate a quote through our platform Kalstein Plus.
Frequent Questions
What kind of objectives does the YR0237 model include?
The microscope includes infinity semi-plan achromatic objectives of 4x, 10x, 40x, and 100x.
Is the LED illumination adjustable?
Yes, the S-LED illumination features adjustable brightness, allowing for optimal viewing conditions.
What is the interpupillary distance range?
The binocular head offers an interpupillary distance adjustment range from 52 to 75 mm.
Advantages and Disadvantages
One of the main advantages of the Laboratory Microscope YR0237 is its robust and ergonomic design, providing comfort during extended observation sessions. Its high-resolution optics and precise focusing mechanisms greatly enhance image clarity. However, some users may find its advanced features require a learning curve, particularly for those new to laboratory microscopy.
Field Use
In practical use, the YR0237 is suitable for a variety of applications, from educational environments to complex biological research. It allows users to examine a wide array of specimens, from cell cultures to microslides, with precision. Scientists can adjust the microscope's components to suit specific sample needs, ensuring versatility in use.
Recommendations
To maximize the lifespan and performance of your YR0237 microscope, ensure regular calibration and cleaning of the optic lenses. Store the microscope in a dust-free environment when not in use, and handle with care during transportation. For optimal results, gradually adjust the brightness to match the specific specimen and ambient conditions.
Features
- Binocular head inclined at 30°
- Wide field WF 10x/18mm eyepieces
- Infinity semi-plan achromatic objectives
- S-LED illumination

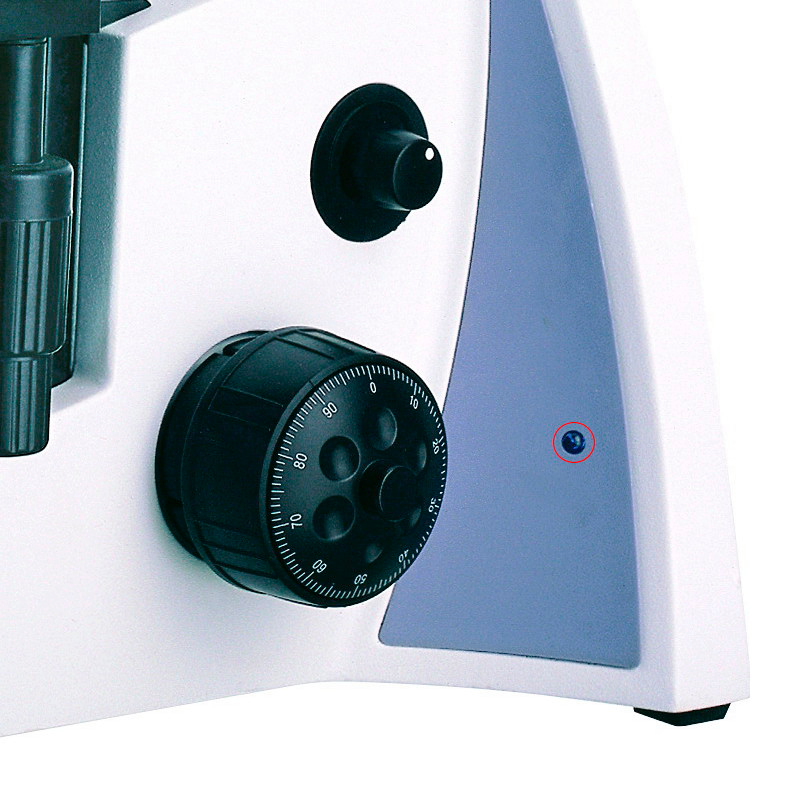

- Coaxial coarse and fine focusing knobs
- Adjustable condenser with N.A1.25
Technical Specifications
| Model | YR0237 | YR0237-1 | |

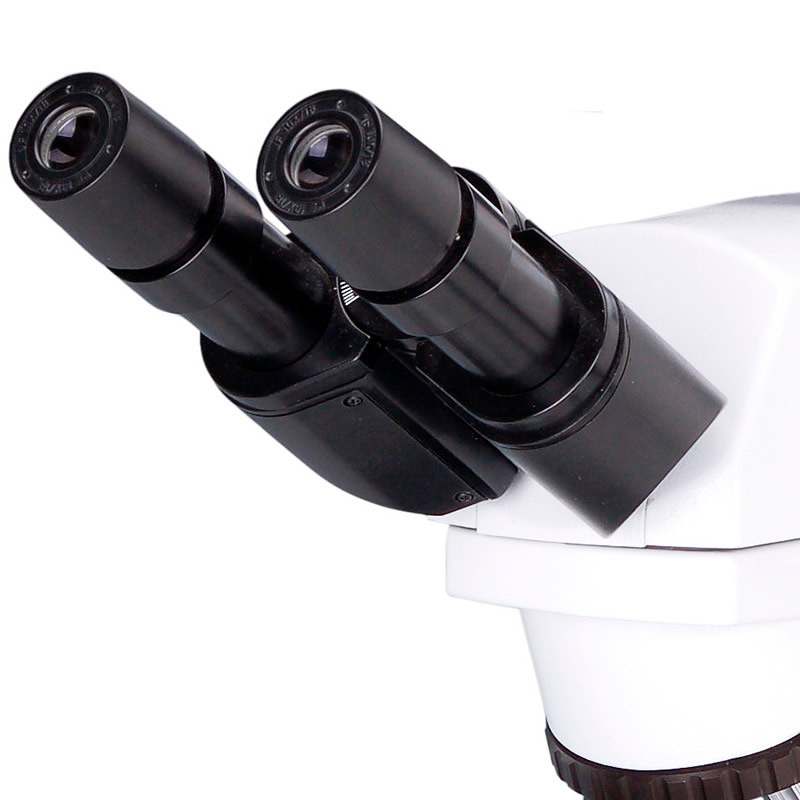

| Head | Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down | o | |
| Seidentopf Trinocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down | o | ||
| Eyepiece | Wide Field Eyepiece WF10x/18mm | ||
| Objective | Infinite Semi-Plan Achromatic Objective 4x,10x,40x,100x | ||
| Nosepiece | Backward Quadruple Nosepiece | ||

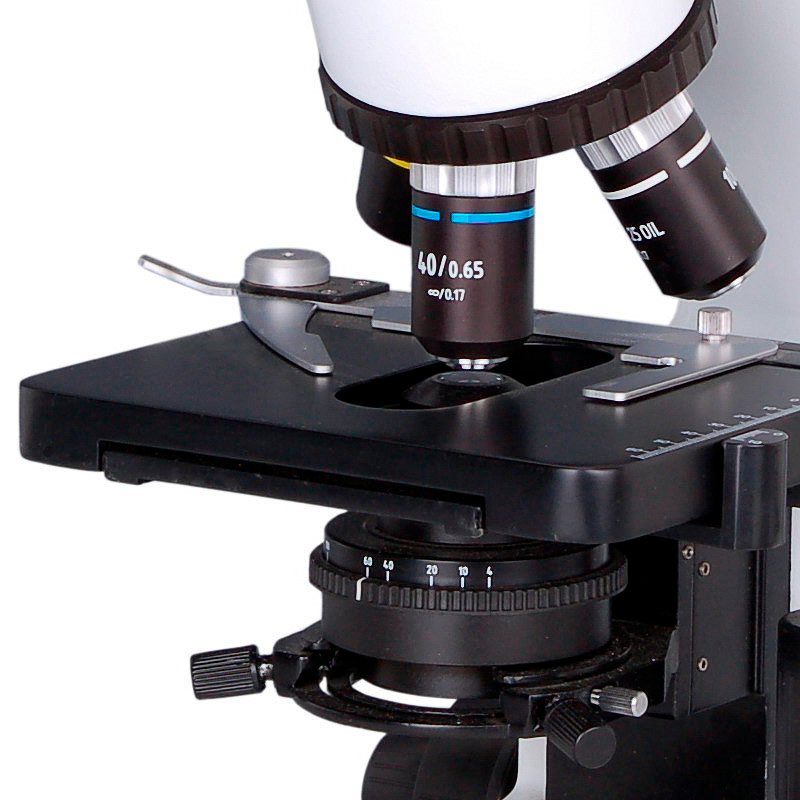

| Stage | Double Layer Mechanical Stage, Size 140×140mm, Moving Range 75×50mm | ||
| Condenser | Sliding-in Center Adjustable Condenser N.A.1.25 | ||
| Focusing | Coaxial Coarse & Fine Adjustment, Moving Range 20mm | ||
| Illumination | S-LED Illumination, Adjustable Brightness | ||
| Laboratory Biological Microscope Optional Accessories | |||
| Eyepiece | WF10x/20mm, Diopter Adjustable | YR0237-1-op1 | |
| Objective | Infinity Plan Achromatic Objective 4x | YR0237-1-op2 | |
| Infinity Plan Achromatic Objective 10x | YR0237-1-op3 | ||
| Infinity Plan Achromatic Objective 40x | YR0237-1-op4 | ||
| Infinity Plan Achromatic Objective 100x | YR0237-1-op5 | ||
| Illumination | 6V20W Halogen Lamp, Brightness Adjustable | YR0237-1-op6 | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.7~0.9 | YR0237-1-op7 | |
| Dark Field Condenser,Immersion, N.A.1.25~1.36 | YR0237-1-op8 | ||
| Dark Field Objective, Infinity Plan 100X, | YR0237-1-op9 | ||
| ForImmersion Dark Field Observation | |||
| Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm | YR0237-1-op10 | ||
| ForImmersion Dark Field Observation | |||
| Phase Contrast | Infinity Plan Turret Phase Contrast Set | YR0237-1-op11 | |
| --Infinity Plan Turret Phase Contrast Condenser | |||
| --Ininity Plan Phase Contrast Objective 4x,10x,40x,100x | |||
| --Centering Telescope 10x | |||
| Infinity Achromatic Turret Phase Contrast Set | YR0237-1-op12 | ||
| --Infinity Achromatic Turret Phase Contrast Condenser | |||
| --IninityAchromatic Phase Contrast Objective 4x,10x,40x,100x | |||
| --Centering Telescope 10x | |||
| LED EPI-Fluorescent Kit | EPI Light 3W LED 465~475nm, B Excite Filter BP460~490 | YR0237-1-op13 | |
| EPI Light 3W LED 525~530nm, G Excite Filter BP510~550 | YR0237-1-op14 | ||
Technical specifications
| Manufacturer | Kalstein |
|---|
Image gallery
Video Laboratory Microscope YR0237
Frequently asked questions
How to know the prices of Laboratory Microscope YR0237?
To know the price of Laboratory Microscope YR0237, please send us an email with your request through the contact form AQUI.
What are the delivery times for Laboratory Microscope YR0237?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Laboratory Microscope YR0237?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Laboratory Microscope YR0237?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Laboratory Microscope YR0237?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
