Description

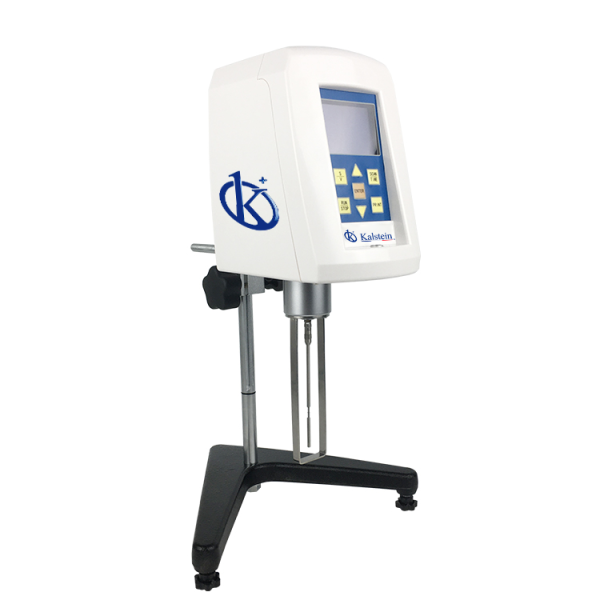

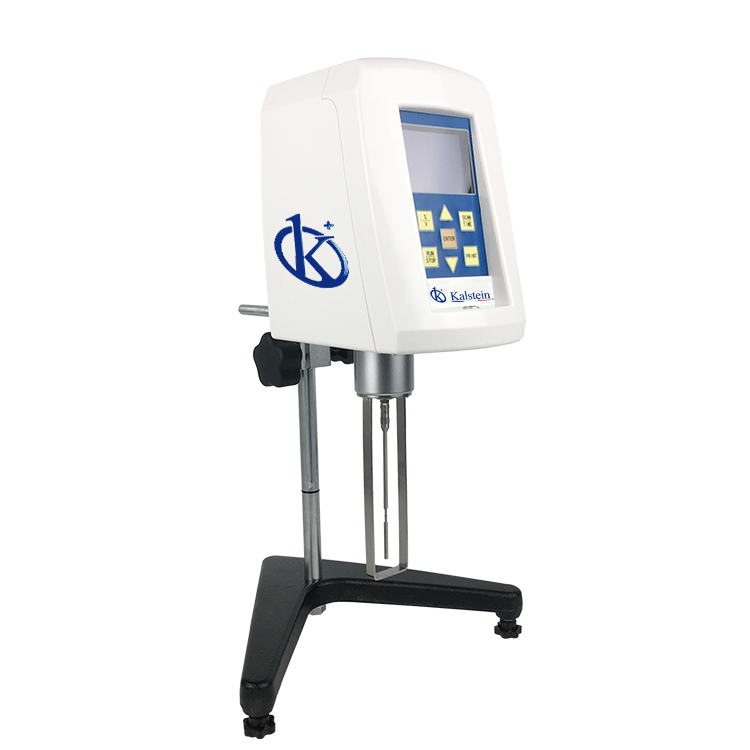

The Cosmetics Rotating Dial Viscometer YR05851 – YR05852 is a state-of-the-art instrument designed to provide precise and reliable viscosity measurements. Equipped with a digital rotary operation and an LCD backlight display, it offers unparalleled convenience and functionality. This viscometer is perfect for professionals in industries such as cosmetics, food, paint, and pharmaceuticals, delivering high sensitivity and reproducibility. With features like program setting, automatic control, and error alarms, the YR05851 and YR05852 models ensure data accuracy, supporting a range of viscosities for Newtonian and non-Newtonian fluids alike.
Market Price
The market range for a high-quality viscometer like the Cosmetics Rotating Dial Viscometer typically falls between $1000 and $1900 USD, depending on the features and capabilities included. Although prices may vary, investing in an instrument of this caliber ensures long-term performance and reliability, essential for precise viscosity measurements.
Frequently Asked Questions
What types of liquids can be measured? This viscometer can measure the apparent viscosity of both Newtonian and non-Newtonian liquids.
Is the measurement data easy to read? Yes, the LCD screen provides direct and clear viscosity data, eliminating the need for additional calculations.
Advantages and Disadvantages
Advantages: The viscometer boasts high sensitivity, precise speed control with stepper motor technology, and smooth operation. It offers wide voltage compatibility and jitter-free performance.
Disadvantages: Due to its advanced features, initial setup may require a learning curve for those unfamiliar with digital viscometers.
Product Use in the Field
The Cosmetics Rotating Dial Viscometer is widely utilized in various areas, such as laboratories and production facilities. It excels in measuring the viscosity of cosmetics, greases, slurries, and other fluids, providing critical data to inform product formulation and quality control processes.
Recommendations
For optimal use, ensure that the sample size is within the required 250-400ml. Regular calibration with standard silicone oil can maintain high precision. For complex analyses, consider the optional data processing software to record real-time viscosity changes.
Key Features
- Direct LCD screen display for immediate data viewing
- International microcomputer drive technology with import stepper motor
- Wide range power supply compatibility
- Convenience of front-level display device
- Accurate to 0.01mPa.S
- Small sample adapters requiring only 18ml per measurement
- Automatic scanning for optimal rotor and speed selection
- Print interface for data printing with optional micro printing machine
- Optional data processing software for advanced measurements
Technical Specifications
| Model | YR05851 | YR05852 |
| Display mode | liquid-crystal display | |
| Speed (r/min) | 6 / 12 / 30 / 60 | 0.3/0.6/ 1.5/3/6/12/30/60 |
| Rotor | 1#, 2#, 3#, 4# The 0# rotor is optional, for measuring ultra low viscosity below 15 |
|
| Measuring range | 1～100,000 | 1～2,000,000 |
| Sample size required for each measurement | 250 – 400ml | |
| Viscosity display accuracy | 0.01mPa.S | |
| Measurement error (Newtonian liquid) | ±3% | |
| Repetitive error (Newtonian liquid) | ±1.5% | |
| Timing measurement function | standard configuration | |
| Temperature measurement | standard configuration | |
| Measurement range display | Can automatically display the maximum viscosity of composite rotor and speed of the selected measurement value | |
| Constant temperature component | Option (special viscometer constant temperature bath, constant temperature cup, temperature probe, etc.) | |
| Data output interface | standard configuration | |
| Data processing software | option | |
| Working power supply | 110V / 60Hz，220V / 50Hz | |
| Outline dimension | 300 × 300 × 450(mm) | |
