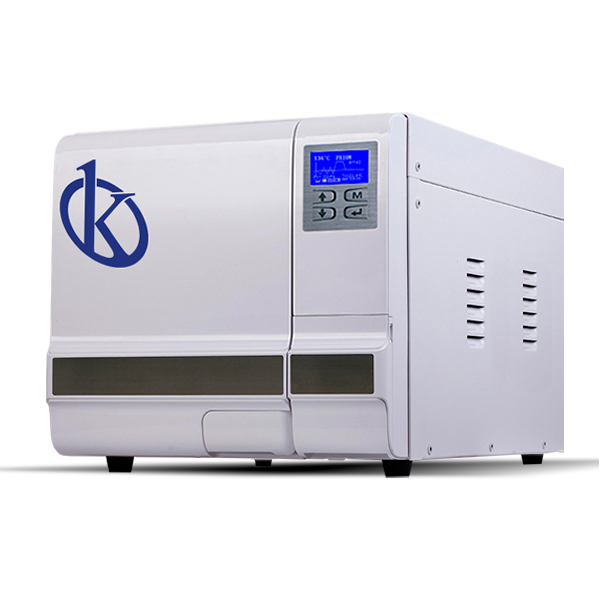

Tabletop Autoclave Class B YR03387 // YR03390

Fully automatic tabletop autoclave, triple fractionated pre-vacuum, works with a precision method controlling pressure and temperature. 8 Liter, 12 Liter, 18 Liter and 23 Liter tabletop autoclaves with class B pre-vacuum, complies with the European standard EN13060. These autoclaves require minimal space, being an ideal solution for small businesses such as tattoo, podiatric consultations, beauty salons, veterinarians and laboratories.

Excellent Performance

• Fully automatic tabletop autoclaves with pre-programmed sterilization cycles.
• Chamber and door in stainless steel, with electro-polished finish.
• High precision control system for perfect sterilization results.
• Independent steam generator, provides enough steam for faster cycles.
• Friendly interface for the user, it can be easily operated by the user.
• LCD screen, continuously displays information about the cycle process.
• Open type water tank, this feature makes it easier to fill water and clean the tank.

Monitoring and Security

• The cycle will not start unless the door is properly closed.
• Automated system with double safety locking device, prevents the door from opening while the chamber is pressurized (optional).
• Safety valves prevent generator and chamber overpressure.
• A safety thermostat prevents overheating in the chamber and the generator.
• An automatic safety lock prevents accidental opening of the door during the sterilization process.
• An electricity protector automatically cuts the power if somewhere you have a short circuit or the power supplier is not very stable.
• Failure alarm, indicates a cycle failure and details the error code.
• Door alarm, indicates that the door is not secured.
• Low water alarm, indicates when the water tank is empty or too full.

Model Number	YR03387	YR03388	YR03389	YR03390
Chamber Dimension	Ø170x320 mm	Ø200x360 mm	Ø247x350 mm	Ø247x450 mm
Chamber Volume	8 L	12 L	18 L	23 L
Number of Trays	2/ Max. 3	2/ Max. 3	3/ Max. 5	3/ Max. 5
Material of Trays	Aluminum	Stainless Steel	Aluminum	Aluminum
Size of Trays.	130x265mm	156x295mm	192x285mm	192x380mm
Voltage Freq.	220/110V	220/110V	220/110V	220/110V
	50/60Hz	50/60Hz	50/60Hz	50/60Hz
POWER.r	2000W	2000W	2000W	2200W
Overall Dimension (WxHxD)	420x370x525 mm	420x370x595 mm	490x455x600 mm	490x455x690 mm
Weight	37 kgs	40 kgs	47 kgs	53 kgs

Program	Temp. [·C]	Pressure [Mpa]	Sterilization time [min.]
SOLID	134	210	4
	121	110	20
LIQUID	134	210	10
	121	110	30
WRAPPED	134	210	10
	121	110	30
TEXTILE	134	210	10
	121	110	30
PRION	134	210	18
DRYING	-	-	-	1-20
B&D TEST	134	210	3.5
HELIX TEST	134	210	3.5
VACUUM TEST	-	-	-	15-20
