Description

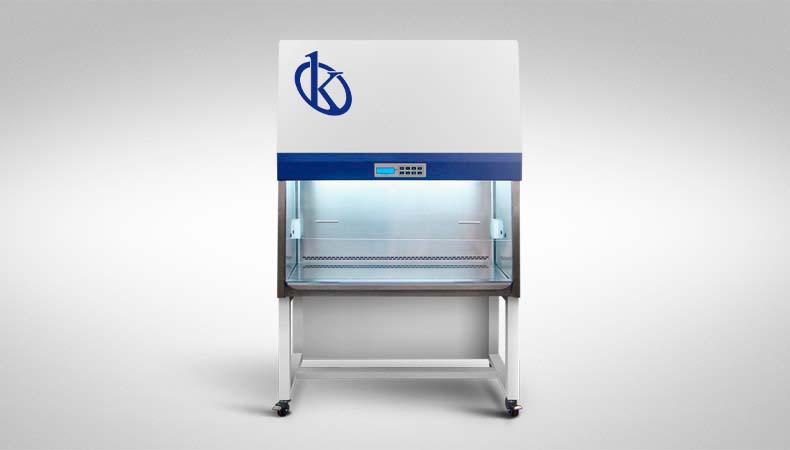

The Biological Safety Cabinet YR05270-1 // YR05271-1 is an innovative piece of laboratory equipment designed for the safe handling of materials contaminated with pathogens. This microbiological safety cabinet boasts the advanced CLEANFLOW™ air technology, integrating a German EBM fan for high airflow with low energy consumption. It’s crafted with a large-diameter inlet design to minimize turbulence, ensuring quiet system operation. With its dual-type HEAP filters and ULPA downflow filters, this cabinet achieves superior air purification efficiency of over 99.995% for particles as small as 0.12 microns, making it a reliable choice for various biomedical applications.
Market Price
The Biological Safety Cabinet YR05270-1 // YR05271-1 typically ranges from $6500 to $7300 in the market. Prices vary based on supplier, location, and specific purchase agreements, but this range provides a general idea of the investment required for such advanced laboratory equipment.
Frequently Asked Questions
- What is the primary use of a biological safety cabinet? These cabinets are used to provide a controlled and contamination-free environment for safely handling potentially infectious materials.
- What is the difference between HEPA and ULPA filters? HEPA filters remove 99.995% of airborne particles ≥ 0.3 microns whereas ULPA filters provide an even higher level of filtration, capturing 99.999% of particles ≥ 0.12 microns.
- How often should filters be replaced? It is recommended to check and replace filters annually or when your cabinet’s performance indicators suggest a need.
Pros and Cons
The Biological Safety Cabinet offers significant advantages, such as high filtration efficiency, sturdy ergonomics, and an advanced controller system for enhanced operational comfort. However, one possible downside could be its price range, which might be on the higher end for smaller laboratories with limited budgets.
Product Use in the Field
In practical applications, this cabinet is used in various settings including research labs, hospitals, and pharmaceutical industries. Its ergonomic design reduces operator fatigue, while its effective plenum leak-proof technology ensures a closed environment that significantly minimizes contamination risk during sensitive operations.
Recommendations
To maximize the utility and lifespan of your Biological Safety Cabinet, regularly schedule maintenance checks, ensure the environment is within recommended conditions, and use compatible cleaning agents. These practices not only ensure optimal performance but also contribute to maintaining a secure laboratory environment.

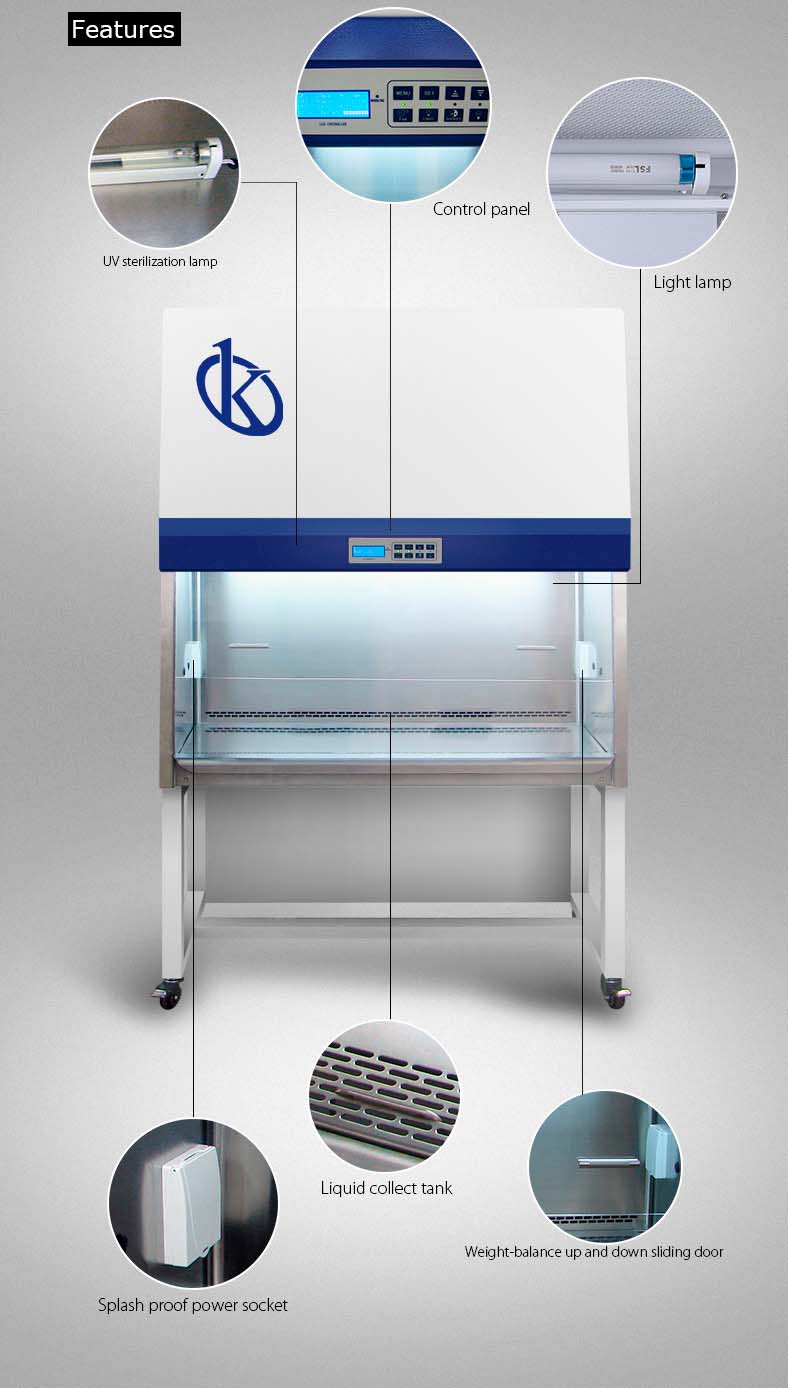

Features

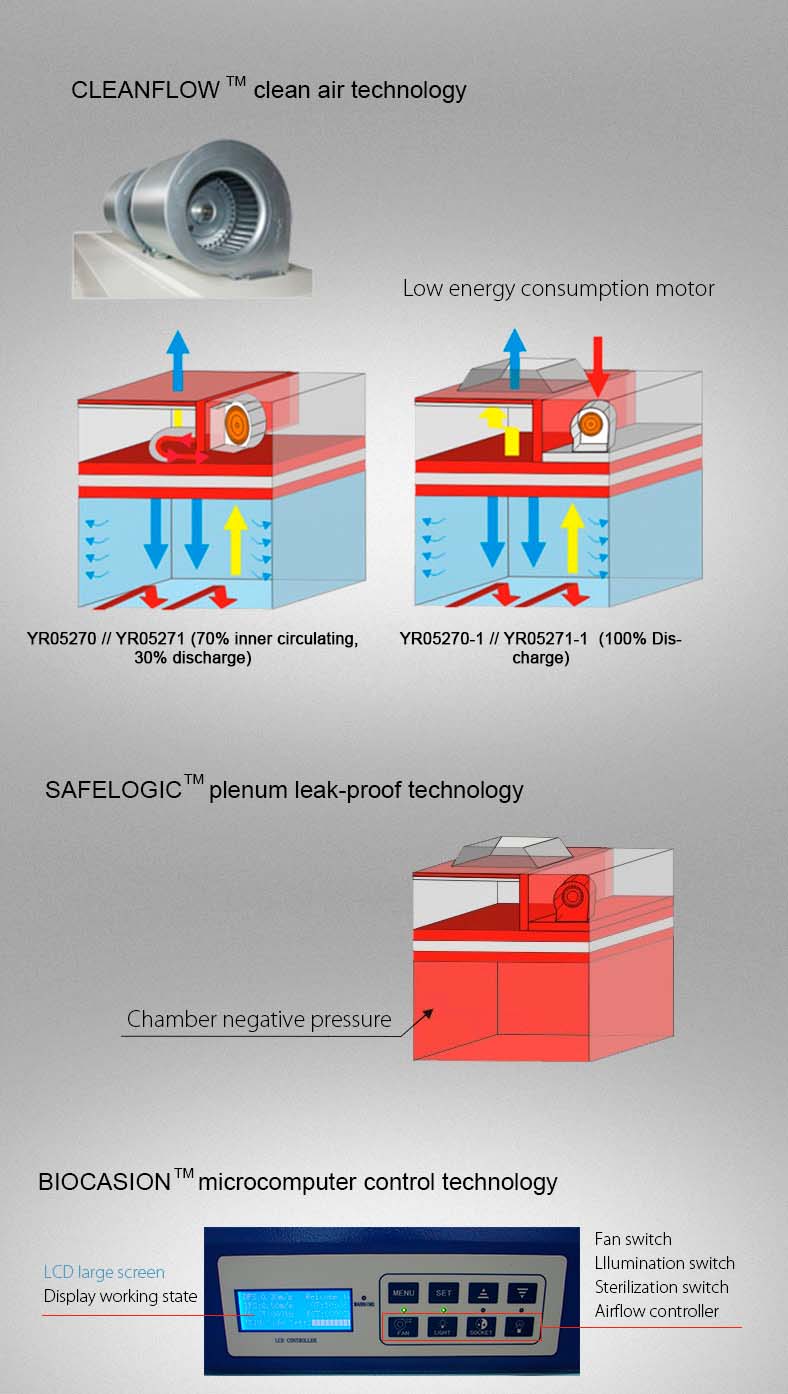

- CLEANFLOW™ Clean Air Technology: Efficient airflow for contaminant-free performance.
- SAFELOGIC™ Plenum Leak-Proof Technology: Ensures complete capture of contaminant gases.
- BIOCASION™ Microcomputer Controller System: Provides intuitive control and status monitoring.

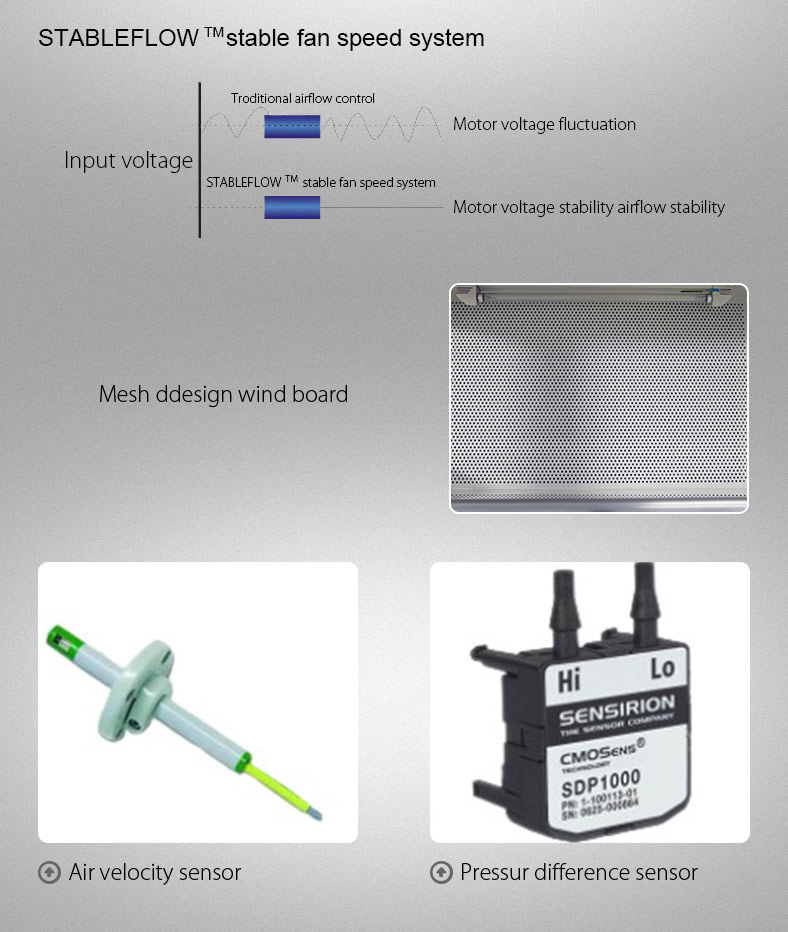

- STABLEFLOW™ Fan Speed System: Automatically adjusts for consistent airflow.

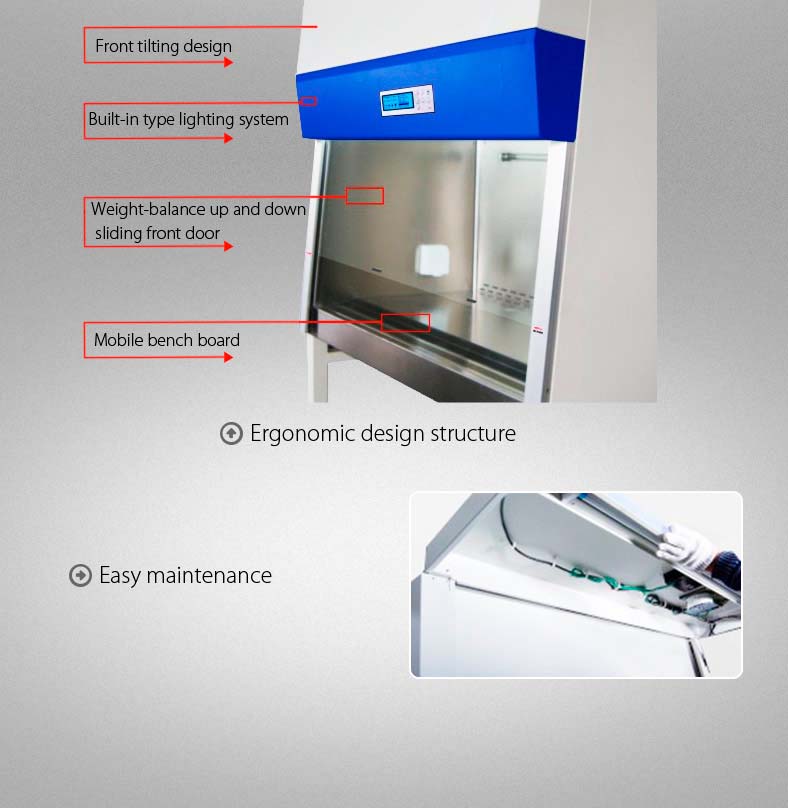

- Ergonomic and Durable Design: Built with user comfort and long-lasting materials.
- Imported Sensors: Offers high-precision monitoring of airflow and pressure.
Technical Specifications
| Model | YR05270-1 | YR05271-1 |
| Clean Rating | International standard ISO14644.1 CLASS 5(US209E,CLASS 100) | |
| Inflow Velocity | 0.53m/s | |
| Down Flow Velocity | 0.35m/s | |
| Down Flow Velocity Precision | ±0.015m/s | |
| Noise Level(dB) | ≤65 | |
| Vibration | ≤3μm(X、Y、Z direction) | |
| HEPA | Efficiency 99.995% | |
| Light Intensity(LX) | ≥650 | |
| Pressure Difference Range (Pa) | 0~500 | |
| Operate Environment | environment temp.10-30℃,relative humidity under 70%, no obvious vibration and dust | |
| External Dimensions (H*W*D) (mm) | 2120×1035×740 | 2120×1340×740 |
| Dimension of Working Zone (H*W*D) (mm) | 670×965×560 | 670×1260×560 |
| Power Supply | ||
| Power(W) | 300 | 350 |
| Net Weight (KG) | 175 | 210 |
| Gross Weight (KG) | 195 | 235 |
| Package Size (H*W*D) (mm) | 1710×1205×910 | 1710×1510×910 |
