Description

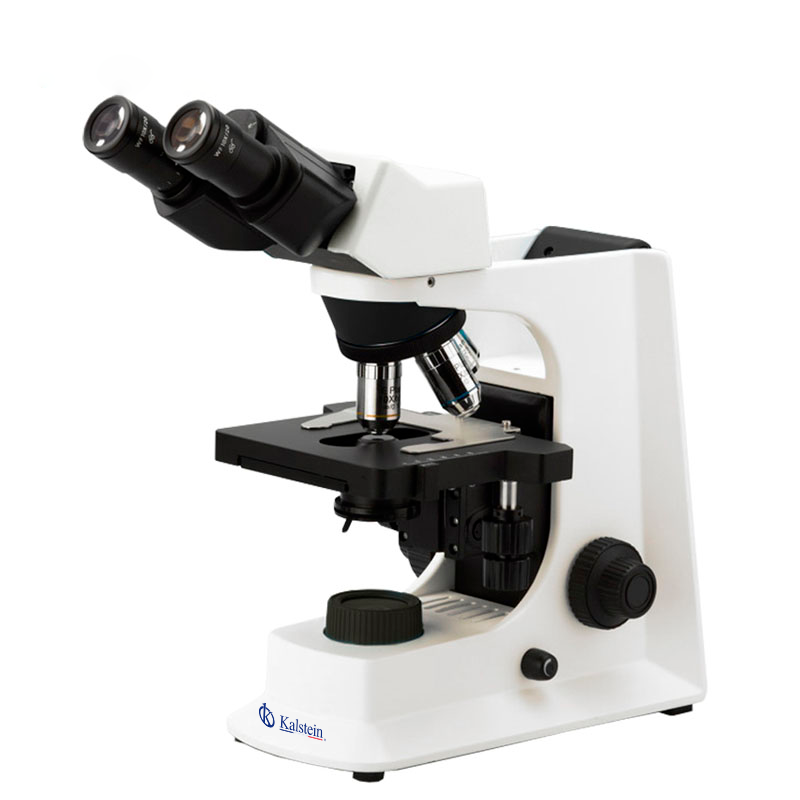

The Binocular Infinity Plan Laboratory Biological Microscope YR05787 – YR05788 is a versatile and high-performance microscope designed for professional laboratory environments. Featuring a Seidentopf Binocular and Trinocular head with a 30° incline and a 360° rotation, this microscope ensures comfortable and unrestricted viewing. Ideal for users with varying heights due to its adjustable interpupillary distance from 48 to 75mm, it significantly enhances research efficiency. Equipped with Infinity Plan Objectives ranging from 4X to 100X, a robust 3W-LED illumination system, and a mechanical stage of 145mm × 140mm with a travel range of 76mm × 52mm, this microscope is engineered to deliver precise and clear images, making it indispensable in any research or educational setting.
Price in the Market
The market price for high-quality microscopes like the Binocular Infinity Plan Laboratory Biological Microscope typically ranges from 900 USD to 1700 USD. This pricing spectrum reflects the advanced features and technological sophistication that make such microscopes essential tools for professional laboratories and research facilities. Although prices can vary, investing in a reliable model like the YR05787 – YR05788 ensures longevity and excellent performance.
Frequently Asked Questions
Q: Is this microscope suitable for beginners?
A: Yes, while it’s designed for professional use, it’s user-friendly and perfect for educational institutions and budding researchers.
Q: Can the microscope be used for outdoor fieldwork?
A: Absolutely, the 3W-LED illumination system is powered by a low voltage charger, and it supports power bank supply, making it possible to use it outdoors.
Advantages and Disadvantages
One of the notable advantages of this microscope is its high-quality optical system offering superior image clarity. The durability and sturdiness of its design, paired with its ease of use, make it a valuable investment. On the downside, its advanced features might be overwhelming for beginners unfamiliar with complex laboratory equipment.
Usage of the Product in the Field
In practical scenarios, the Binocular Infinity Plan Laboratory Biological Microscope is indispensable in genetics, microbiology, and pathology fields. Its precision optics and ergonomic design facilitate extended research sessions without causing user fatigue, promoting a productive and detailed examination of specimens.
Recommendations
To maximize the lifespan and efficiency of this microscope, regular maintenance and careful handling are recommended. Ensure lens and eyepiece cleaning is performed regularly with appropriate materials. For research requiring visual recording, consider using the optional C-Mount adapters to connect cameras seamlessly.
Features
– Seidentopf Binocular and Trinocular heads with adjustable interpupillary distance.
– Comprehensive range of Infinity Plan Objectives for detailed analysis.

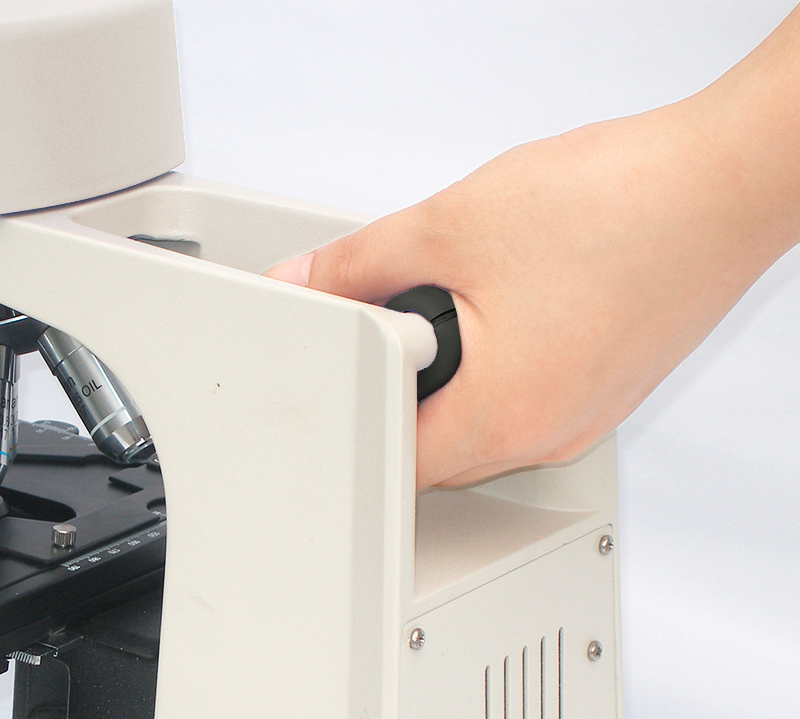

– Robust and portable structure with LED illumination designed for diverse environments.
Technical Specifications
| Model | Cata. No. | YR05787 | YR05788 | |

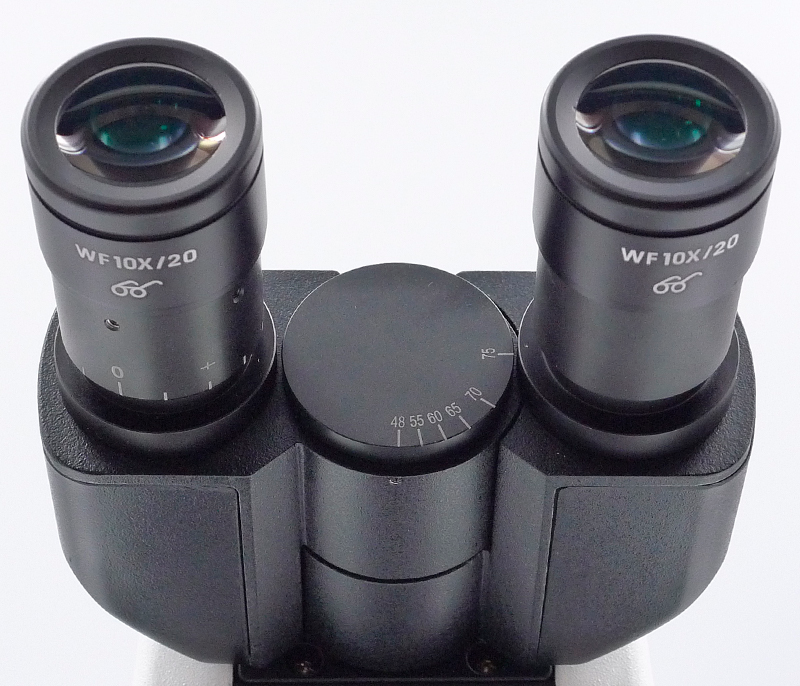

| Head | Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm | YR05788-op1 | ● | ○ |
| Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80 | YR05788-op2 | ○ | ● | |
| WF10X/20mm (High Eyepoint) | YR05788-op3 | ●● | ●● | |
| Nosepiece | Quadruple, Backward | YR05788-op4 | ● | ● |
| Quintuple, Backward | YR05788-op5 | ○ | ○ | |

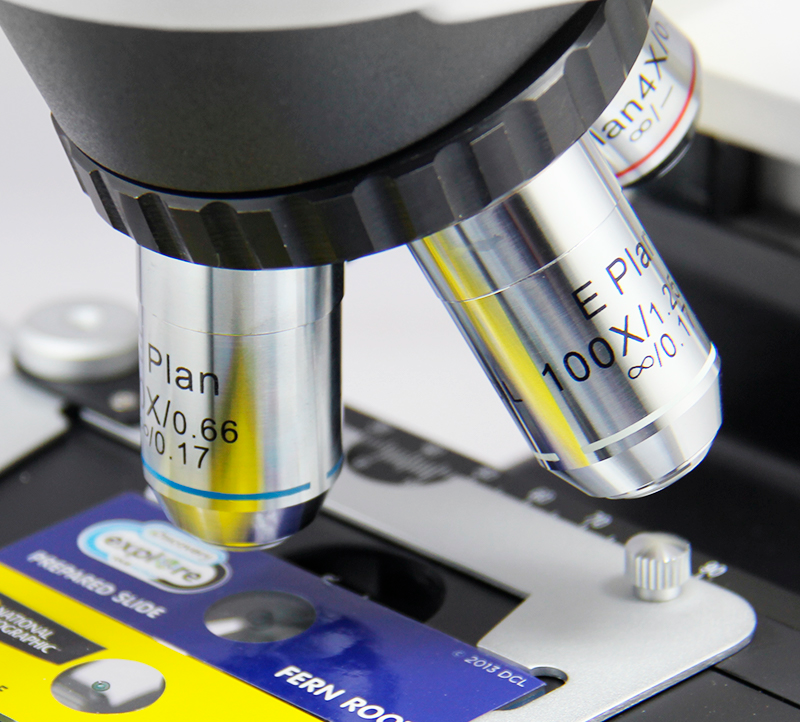

| Infinity Plan Objectives | PLAN 2.5x/0.07,W.D.=8.47mm | YR05788-op6 | ○ | ○ |
| PLAN 4X/0.10.W.D.=12.1mm | YR05788-op7 | ● | ● | |
| PLAN 10X/0.25.W.D.=4.64mm | YR05788-op8 | ● | ● | |
| PLAN 20X/0.40(S).W.D.=2.41mm | YR05788-op9 | ○ | ○ | |
| PLAN 40X/0.66(S).W.D.=0.65mm | YR05788-op10 | ● | ● | |
| PLAN 60X/0.80(S).W.D.=0.33mm | YR05788-op11 | ○ | ○ | |
| PLAN 100X/1.25(S,Oil).W.D.=0.12mm | YR05788-op12 | ● | ● | |
| PLAN 100X/1.15(S,Water).W.D.=0.19mm | YR05788-op13 | ○ | ○ | |

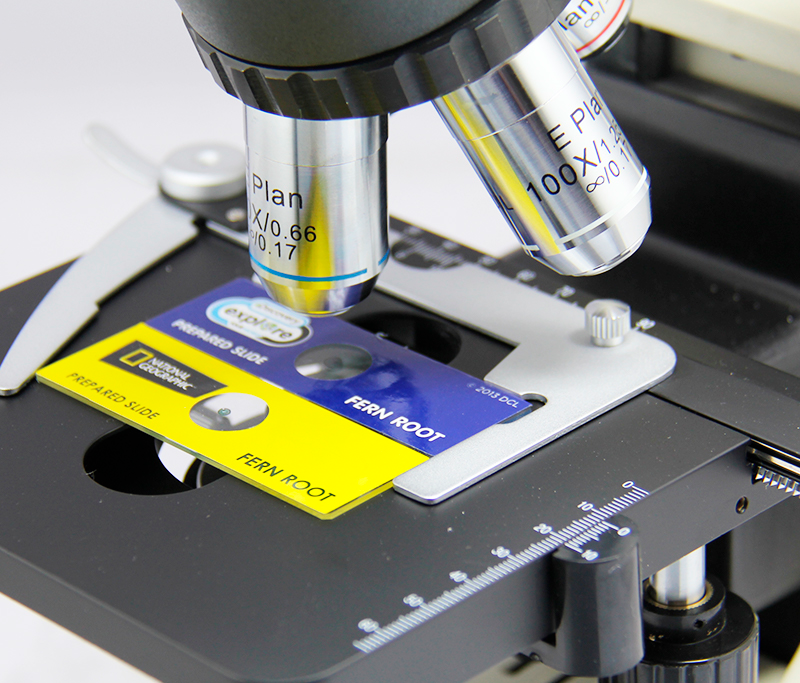

| Working Stage | Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder | YR05788-op14 | ● | ● |
| Rackless (Integrated) Stage, Size 140×135mm, | YR05788-op15 | ○ | ○ | |
| Travel Range 75×35mm, Double Slide Holder | – | |||

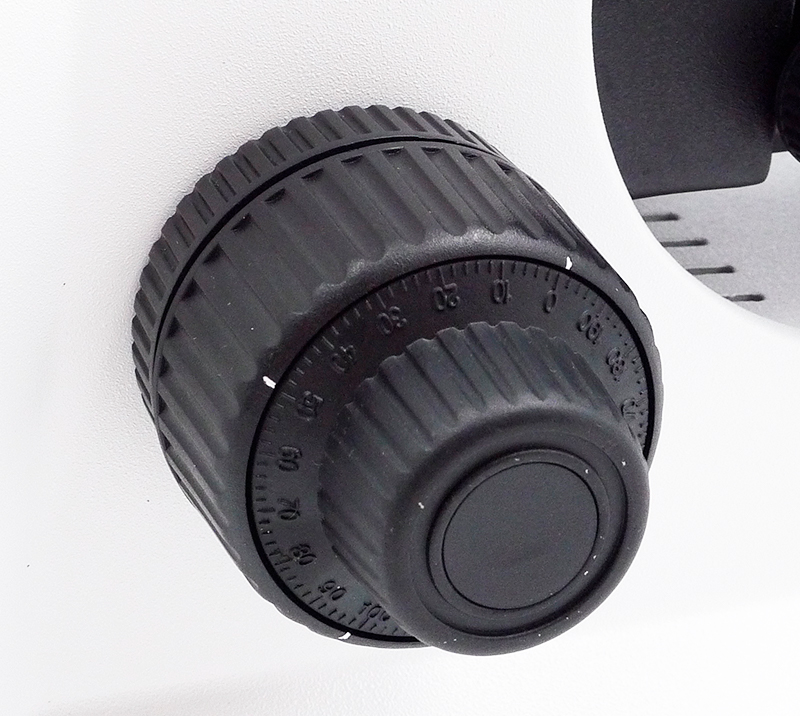

| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division | YR05788-op16 | ● | ● |

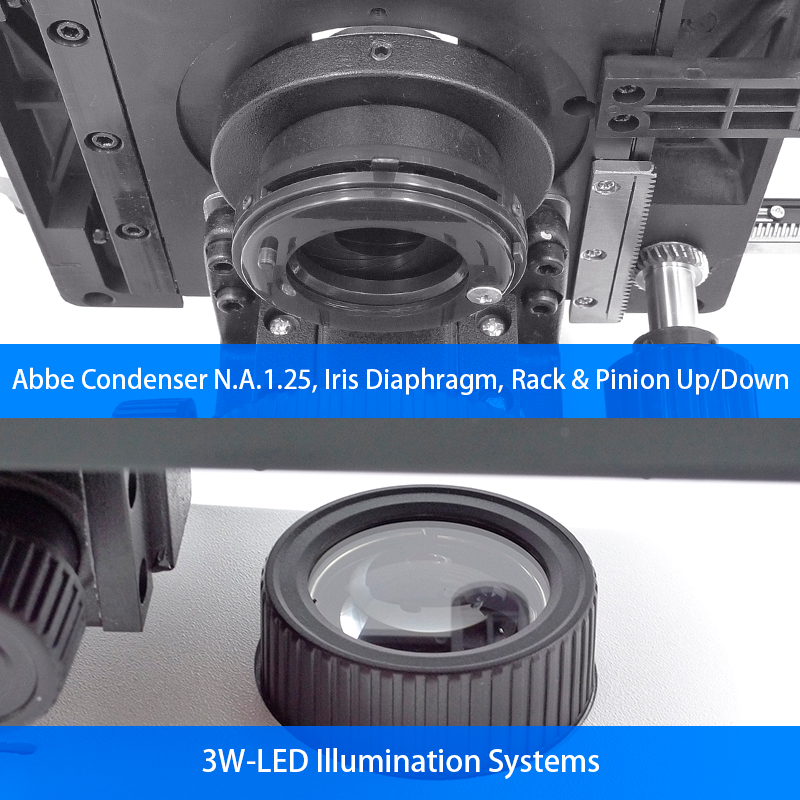

| Condenser | Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder | YR05788-op17 | ● | ● |
| Illumination | 3W-LED Illumination Systems | YR05788-op18 | ● | ● |

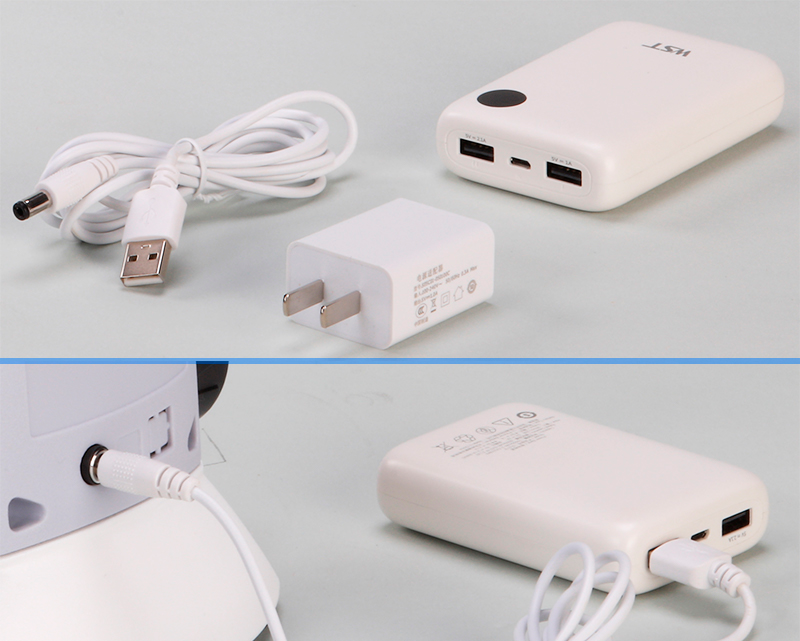

| Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | – | |||
| 12V/20W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op20 | ○ | ○ | |
| 6V/30W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op21 | ○ | ○ | |
| Field Diaphragm | Upgrade To Kohler Illumnation | YR05788-op22 | ○ | ○ |
| Filter | Dia.45mm, Blue | YR05788-op23 | ○ | ○ |
| Dia.45mm, Green | YR05788-op24 | ○ | ○ | |
| Dia.45mm, Yellow | YR05788-op25 | ○ | ○ | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective | YR05788-op26 | ○ | ○ |
| Polarizing | Analyzer + Polarizer Set | YR05788-op27 | ○ | ○ |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op28 | ○ | ○ |
| Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op29 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op30 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op31 | ○ | ○ | |
| Turret Phase Contrast Attachment | YR05788-op32 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter | – | |||
| Adapter | C-Mount 0.5x, Focus Adjustable | YR05788-op33 | ○ | ○ |
| C-Mount 0.75x, Focus Adjustable | YR05788-op34 | ○ | ○ | |
| Mirror | Reflecting Mirror & Holder | YR05788-op35 | ○ | ○ |
| Attachment | Wire Winding Device | YR05788-op36 | ○ | ○ |
| Package | Carton Size 390×280×450mm, 1 Unit/Ctn | |||
| Weight | Gross Weight: 7.5 kgs, Net Weight: 6.5 kgs | |||
| Note:”●”In Table Is Standard outfits,”○”Is Optional Accessories | ||||
