Pocket pH Meter YR01800-1: Installation and Startup Guide (Variant 2026-06-02)
The Pocket pH Meter YR01800-1 is designed for optimal performance and user convenience. This guide will take you through the essential steps for installation and startup, ensuring that you get the most out of your device.
Understanding the Design and Features of YR01800-1

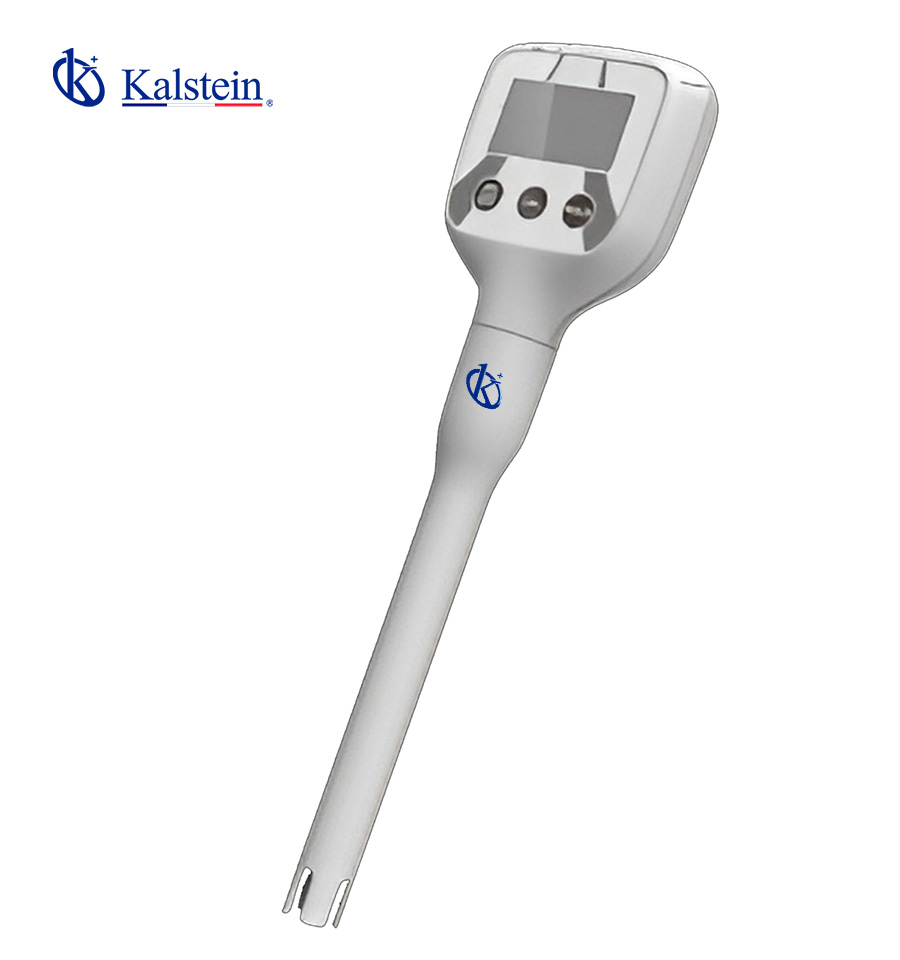

The YR01800-1 is a compact handheld pH meter that is perfect for on-the-go measurements. Its intelligent features, such as automatic calibration, auto shut-off, and low battery alarm, make it user-friendly and reliable. The robust design complies with IP57 standards for water and dust resistance, making it suitable for various environments.
Technical Specifications of YR01800-1
| Specification | Details |
|---|---|
| Model | YR01800-1 |
| Measuring Range | -1.00 to 15.00 pH |
| Resolution | 0.01 pH |
| Accuracy | ±0.2 pH / ±0.05 pH |
| Temperature Compensation | 0 to 60°C |
| Calibration | 1-3 Points (pH 4.00/7.00/9.18) |
| Power Source | 2 Lithium batteries (CR2032) |
| Humidity | 85% |
| IP Grade | IP57 |
| Size/G.W. | 148 x 29 x 14 mm |
Unboxing and Initial Setup
When you first receive the Pocket pH Meter YR01800-1, it is crucial to ensure that you have all necessary components for proper setup. The unboxing checklist should include:
- Pocket pH Meter YR01800-1
- Standard buffer solution
- Replaceable batteries
- User manual
Powering Up the Device
To power up the YR01800-1, insert the two CR2032 lithium batteries, ensuring the correct polarity. Once powered, the device will undergo a self-test to ensure all systems function properly. If the device does not power on:
- Check battery orientation
- Replace batteries with fresh ones
- Inspect the battery compartment for corrosion
Calibration Procedures
For accurate pH readings, calibration is essential. Follow these steps to calibrate the YR01800-1:
- Start with a clean electrode.
- Dip the electrode into the pH 4.00 buffer solution and wait for the reading to stabilize.
- Press the calibrate button to set the value.
- Repeat the process with pH 7.00 and pH 9.18 solutions.
Troubleshooting Common Issues
If you experience issues with the YR01800-1, consult the following troubleshooting guide:
| Symptom | Probable Causes | Solutions |
|---|---|---|
| Device does not power on | Dead batteries, incorrect installation | Replace batteries, check installation |
| Inconsistent readings | Improper calibration, dirty electrode | Recalibrate, clean electrode |
| Error code E-03 | Out of range | Check measurement range, recalibrate |
Environmental Conditions and Site Requirements
To ensure optimal performance of the YR01800-1, the following environmental conditions should be maintained:
- Temperature: 0 to 60°C
- Humidity: 85% maximum
- No direct sunlight exposure
Frequently Asked Questions
What is the measuring range of the YR01800-1?
The measuring range of the YR01800-1 is from -1.00 to 15.00 pH.
How do I calibrate the Pocket pH Meter YR01800-1?
To calibrate the YR01800-1, use standard solutions of pH 4.00, 7.00, and 9.18, following the calibration procedure outlined in the guide.
What should I do if the device shows inconsistent readings?
If you are experiencing inconsistent readings, check the calibration, and ensure that the electrode is clean. Recalibrate if necessary.
Can the YR01800-1 be used in harsh environments?
Yes, the YR01800-1 has a robust design that complies with IP57 standards, making it water and dust resistant.
What is the power source for the YR01800-1?
The YR01800-1 is powered by two CR2032 lithium batteries.
How often should I replace the electrode?
The electrode should be replaced depending on usage, but typically, it is advisable to assess it every 6 months for signs of wear.
Where can I request a quote for the YR01800-1?
You can request a quote for the YR01800-1 through Kalstein's official channels.
