Investment Return Analysis of the YR05086 Medical Refrigerator
Product Description

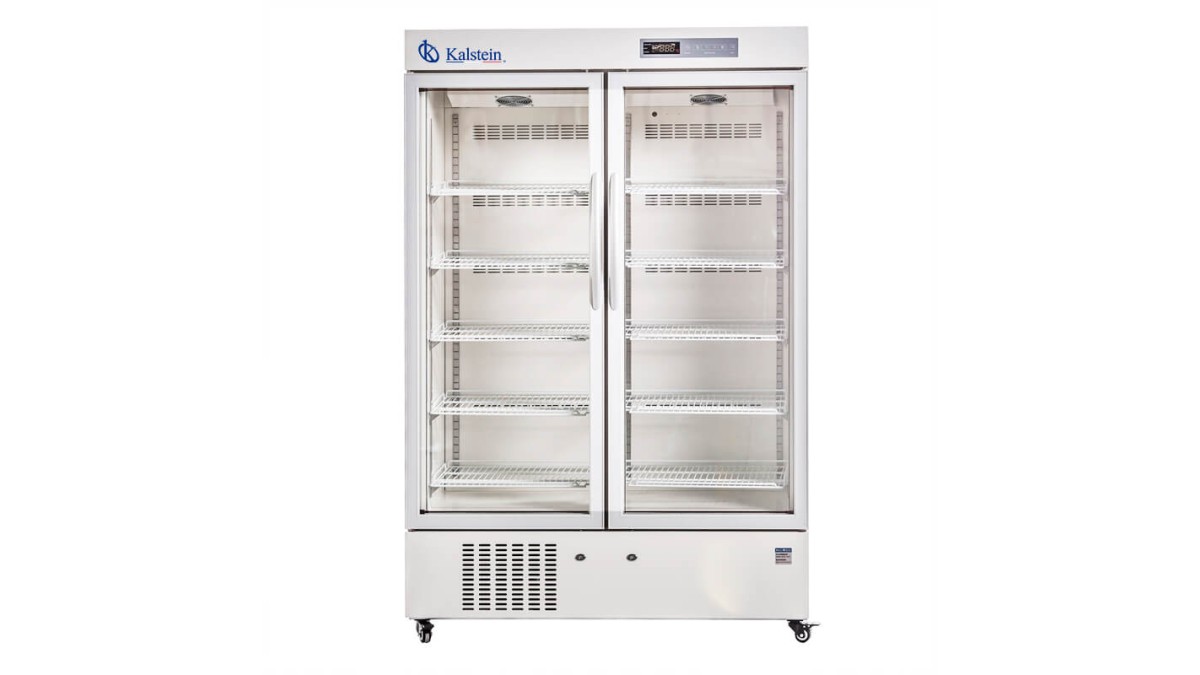

The YR05086 Medical Refrigerator is an essential device for medical facilities, ensuring the safe storage of pharmaceuticals, vaccines, and other temperature-sensitive products. Equipped with a comprehensive temperature alarm system, it features an audible buzzer and a visible flashing light to alert users to critical failures, such as high and low temperature sensor errors, door ajar situations, power failures, and low battery warnings.
Key Features
- USB port for exporting parameter information
- High-efficiency fan for rapid cooling
- Heated glass door to prevent fogging
- Glycerin box accurately simulates internal cabinet temperature
- Forced air cooling with optimized air distribution system for maximum temperature stability and uniformity
- Test hole for monitor sensor and temperature testing
- Space-optimized design with adjustable multi-level shelving for various pharmaceutical storage requirements. Security lock to prevent unauthorized access. Designed with wheels and leveling feet.
- LED interior light
Technical Specifications
| Model | YR05086 (current) |
|---|---|
| Shelves / Drawers | 10 Shelves |
| Cooling Method | Forced Air Cooling |
| Defrost Type | Automatic |
| Refrigerant | R600a |
| Energy Consumption (kWh / 24h) | 5.75 |
| Noise Level (dB) | 52 |
| Ambient Temperature (°C) | 10 ~ 32 °C |
| Temperature Range (°C) | 2 ~ 8 °C |
| Compressor Brand / Quantity | China Brand / 1 |
| Sensor Type | NTC |
| Temperature Controller | Microprocessor |
| Monitor | Digital Display |
| Voltage / Frequency (V / Hz) | 220 / 50 Hz |
| Power (W) | 385 W |
| Current (A) | 2.3 A |
| Interior Material | Colored Sprayed Steel |
| Exterior Material | Colored Sprayed Steel |
| Insulation | PURF |
| Capacity (L / cu.ft) | 656 / 23.16 |
| Net Weight (kg) | 166 |
| Gross Weight (kg) | 184 |
| External Dimensions | 1240 x 630 x 1895 |
| Internal Dimensions | 1100 x 454 x 1325 |
| Package Size | 1335 x 710 x 2000 |
| CBM | 1.90 |
| 20 GP / 40 GP / 40 HQ | 12 / 27 / 27 |
| High / Low Temperature Alarm | Yes |
| Power Failure Alarm | Yes |
| Thermostat Failure Alarm | Yes |
| Battery Backup Failure Alarm | / |
| Condenser Failure Alarm | / |
| Ambient Temperature Alarm | / |
| Voltage Anomaly Alarm | / |
| Open Door Alarm | Yes |
| System Anomaly Alarm | / |
| Power Failure Backup System (Alarm) | 8 Hours |
| Accessories | Foot / |
| Castor | Yes |
| Exterior Door / Type | 2 / Heated Glass Door with Automatic Bounce |
| Door Lock | 2 |
| Test Hole Quantity / Diameter | 1 / 25mm |
| Light | LED |
| USB Port | Yes |
| Temperature Recorder | Optional Chat Recorder |
| Remote Alarm Port | / |
| RS 232/485 Port | / |
| Certification | ISO; CE |
Market Price
The YR05086 Medical Refrigerator is available at a competitive market price of approximately $1,220.00 USD. This cost reflects the advanced technology and reliable features that ensure optimal performance in a medical setting, making it a worthwhile investment for healthcare facilities seeking to maintain the integrity of their stored products.
Frequently Asked Questions
What are the key features of the YR05086 Medical Refrigerator?
The YR05086 Medical Refrigerator features a temperature alarm system, high-efficiency cooling fan, heated glass door, optimized air distribution, adjustable shelves, and an LED interior light, making it suitable for storing sensitive medical products.
What is the cooling method used in the YR05086?
The refrigerator utilizes forced air cooling to ensure rapid temperature recovery and uniform cooling throughout the interior, thus maintaining the integrity of stored items.
What certification does the YR05086 have?
The YR05086 Medical Refrigerator is certified by ISO and CE, assuring users of its compliance with international quality and safety standards.
How much energy does the YR05086 consume?
The energy consumption of the YR05086 is approximately 5.75 kWh per 24 hours, making it an energy-efficient option for medical facilities.
What is the temperature range of the YR05086?
The operational temperature range for the YR05086 is between 2 °C to 8 °C, which is ideal for the storage of vaccines and pharmaceuticals.
Is there a warranty available for the YR05086 Medical Refrigerator?
Yes, the YR05086 typically comes with a manufacturer's warranty covering parts and labor, ensuring peace of mind for users regarding any potential issues.
How can I request a quote for the YR05086?
To request a quote for the YR05086 Medical Refrigerator, please contact us directly through our available channels, and we will provide you with the necessary information.
Pros and Cons
Pros
- Comprehensive alarm system for temperature and power failures
- High efficiency and rapid cooling capabilities
- Adjustable shelving for versatile storage options
- Energy-efficient operation
- ISO and CE certification for quality assurance
Cons
- Higher initial investment compared to standard refrigerators
- May require professional setup and maintenance
Field Usage
The YR05086 Medical Refrigerator is predominantly used in healthcare settings, including hospitals, laboratories, and clinics. It is specifically designed to securely store a variety of temperature-sensitive materials such as vaccines, medications, and biological samples. Its advanced features help ensure that the stored items remain at the required temperature, significantly reducing the risk of spoilage and ensuring patient safety.
Recommendations
For facilities considering the YR05086 Medical Refrigerator, it is recommended to assess the specific storage needs and ensure that the refrigerator's capacity and features align with those requirements. Regular maintenance and calibration of the unit are also advised to maintain optimal performance. Furthermore, investing in a backup power source may provide additional security against power failures.
