Interpreting Results and Reading Measurements with the YR06118 Surgical Lamp

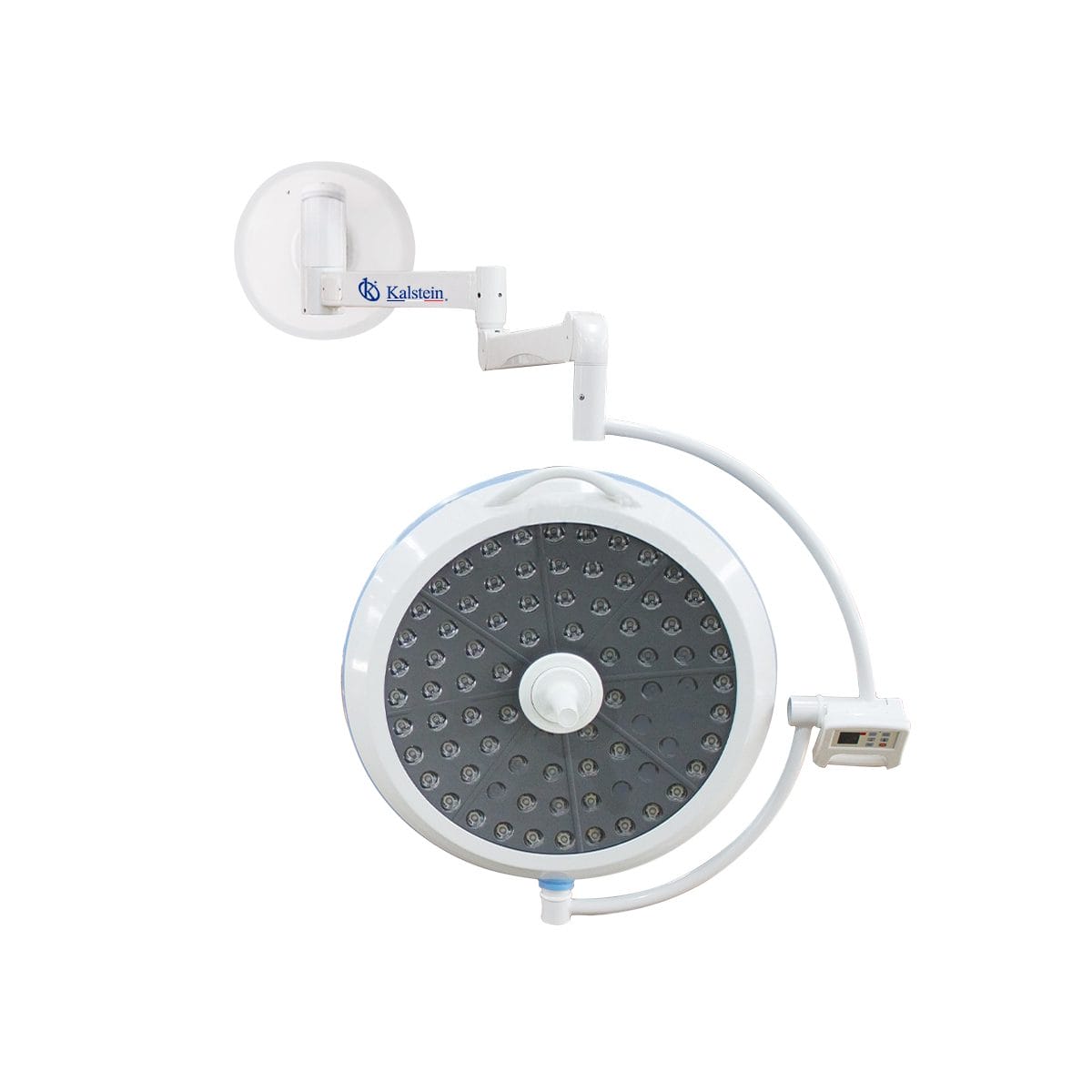

The YR06118 LED Shadowless Surgical Lamp is engineered for high performance in surgical environments. It provides precise illumination, which is critical for accurate medical procedures. Understanding how to interpret results and accurately read measurements is essential for surgical teams to ensure optimal outcomes. This article explores the nuances of operating the YR06118, its technical specifications, and how to effectively interpret the data it provides.
Technical Specifications of the YR06118 Surgical Lamp
| Specification | Details |
|---|---|
| Model | YR06118 |
| Mounting | Wall-mounted |
| LED bulbs | 80pcs |
| Illuminance | 40000~160000Lux |
| Color temperature | 3000~6700K adjustable |
| Diameter of light spot | 160-280mm |
| Dimming system | Continuous dimming system |
| Color rendering index | ≥96 |
| Lighting depth | ≥600mm |
| Temperature rises at operator’s head | ≤1℃ |
| Temperature rises at operating field area | ≤2℃ |
| Voltage | 220V, 50Hz |
| Optimum installation height | 3.0m |
| Lowest installation height | 2.8m |
Understanding the Importance of Accurate Illumination
The YR06118 is designed with a shadowless effect that is critical during surgical procedures. Accurate illumination is paramount to minimize errors and ensure that the surgical team can see the area of operation clearly. The lamp provides an adjustable color temperature range from 3000K to 6700K, which allows surgeons to choose the optimal light quality for their specific needs.
Understanding how this adjustable spectrum affects visibility can greatly enhance surgical precision. The cold light effect of the LED technology not only illuminates the surgical field but also minimizes heat radiation, which can be detrimental to patients during long procedures. The low increase of temperature (≤1℃ at the operator’s head) ensures that there is no discomfort during operations.
Key Features Supporting Measurement Interpretation
To effectively interpret results and measurements taken during surgery, medical teams must understand several key features of the YR06118:
- Illuminance Levels: With a range of 40000 to 160000 Lux, the lamp can adapt to various surgical environments, ensuring that adequate light is provided regardless of external conditions.
- Color Rendering Index (CRI): A CRI of ≥96 ensures that the colors of tissues and fluids appear accurate, facilitating better decisions and interventions based on visual assessment.
- Continuous Dimming System: The ability to adjust brightness continuously allows for customized settings depending on the procedure, further enhancing visibility and aiding in the interpretation of anatomical structures.
Common Measurement Errors and How to Correct Them
In surgical settings, misinterpretation of measurements can have serious consequences. Understanding common sources of error is essential for operating the YR06118 effectively. Here are some common measurement errors and corrective actions:
Measurement Error Table
| Error Type | Probable Cause | Corrective Action |
|---|---|---|
| Insufficient brightness | Improper dimming settings | Adjust brightness using the continuous dimming system. |
| Inaccurate color representation | Incorrect color temperature setting | Adjust color temperature according to the tissue type. |
| Glare or hotspots | Poor positioning of the lamp | Reposition the lamp to achieve optimal focus without glare. |
Site Preparation for Optimal Operation
Before installation, adequate site preparation is essential for the YR06118 to function optimally. The following checklist should be addressed:
- Voltage Requirements: Ensure stable power supply at 220V, 50Hz.
- Installation Height: Verify that the installation meets the optimum height requirement of 3.0m and does not fall below 2.8m.
- Ventilation: Ensure that the surgical area is well-ventilated to avoid overheating.
- Clearances: Maintain adequate space around the lamp to facilitate movement and ensure safety.
Frequently Asked Questions
What is the significance of the Color Rendering Index (CRI) in the YR06118?
The Color Rendering Index (CRI) is crucial as it affects how accurately colors are represented under the lamp's light. A higher CRI indicates that colors, especially those of tissues and fluids, are more accurately depicted, which is essential for effective surgical decision-making.
How does the dimming system work on the YR06118?
The continuous dimming system allows users to adjust the brightness seamlessly throughout the procedure. This is particularly useful in varying surgical environments, enabling the team to tailor the light output according to their specific needs.
What should I do if the light seems dim during surgery?
If the light appears dim, check the dimming settings and adjust them accordingly. Ensure that the lamp is not obstructed and is positioned correctly to provide adequate illumination.
How does the YR06118 reduce heat during surgical procedures?
The YR06118 utilizes LED technology that generates minimal heat. This is vital as excessive heat can cause discomfort to both patients and surgical staff, especially during prolonged procedures.
Can the YR06118 be used in different surgical specialties?
Yes, the YR06118 is versatile and can be used across various surgical specialties, including veterinary, clinical, and educational environments, providing consistent performance and reliability in illumination.
What maintenance is required for the YR06118?
Regular maintenance includes checking the light intensity, ensuring that the lamp is clean, and verifying that all moving parts are functioning smoothly. It is also essential to inspect electrical connections periodically.
How can I request a quote for the YR06118?
For a personalized quote, please reach out through the contact options provided to us. We will be glad to assist you with pricing and availability.
