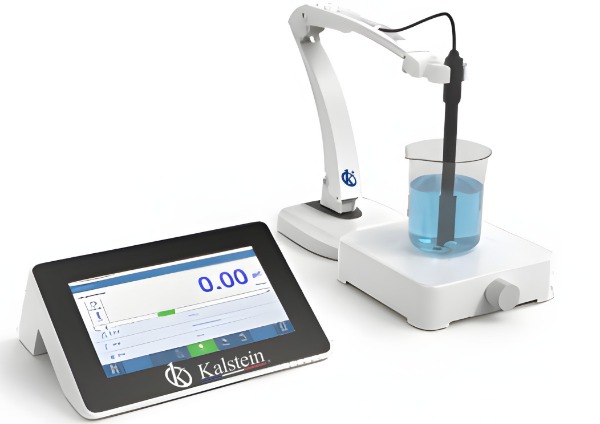

Installation and Start-Up Guide for the YR06615 Benchtop pH Meter
The YR06615 Benchtop pH Meter is a professional-grade device designed for precise pH measurements, widely used in laboratories, industries, and field applications. This guide will provide detailed instructions for its installation and start-up, ensuring you achieve optimal performance right from the outset.
Unboxing Checklist
Upon receiving your YR06615, it is essential to check the contents to ensure you have everything needed for installation:
- YR06615 Benchtop pH Meter
- Power Adapter (DC 12V / 1A)
- User Manual
- Calibration Solutions
- Electrode Cleaning Solution
- Data Transfer USB Cable
- Protective Cases
Site Requirements and Environmental Conditions
Before installation, ensure that you have a suitable working environment. The following conditions are recommended for the YR06615:
- Temperature Range: 5 to 40 °C
- Humidity: ≤ 85%
- Electric Supply: DC 12V / 1A
- Ventilation: Ensure adequate airflow to prevent overheating.
- Vibration and EMI: Minimize environmental vibrations and EMI for accurate readings.
Installation Steps
Follow these steps to install the YR06615 effectively:
- Positioning: Place the meter on a stable, level surface free from vibrations. Ensure it is accessible for operator use.
- Power Connection: Connect the power adapter to the meter and plug it into an appropriate power outlet.
- Calibration Setup: Before the first use, calibrate the YR06615 with standard buffer solutions. Ensure the electrode is clean and properly maintained.
Power-Up Sequence
Once installed, follow this procedure to power up the YR06615:
- Press the power button located on the front panel.
- The display will illuminate, showing the initial settings and prompts.
- Follow on-screen instructions for calibration and initial settings. Ensure you have the calibration solutions at hand.
First-Run Calibration
Proper calibration is crucial for the accuracy of the YR06615:
Perform a 1-point or 2-point calibration using the appropriate pH buffer solutions. Here’s how:
- Select the calibration mode on the touchscreen.
- Immerse the electrode in the first buffer solution and confirm the value on the screen.
- Rinse the electrode with distilled water and repeat with the second buffer.
- Confirm calibration completion in the device settings.
Common Setup Mistakes
To avoid issues during the setup process, be aware of these common mistakes:
- Not calibrating the device before the first use.
- Placing the meter in a location with extreme temperature or humidity fluctuations.
- Not cleaning the electrode before use, which can lead to inaccurate readings.
Technical Specifications of the YR06615
| Model | YR06615 | Parameter | Characteristic | Detail |
|---|---|---|
| pH | Measurement Range | (-2.000 ~ 20.000) pH |
| pH | Resolution | 0.1 / 0.01 / 0.001 pH |
| pH | Accuracy | ±0.002 pH |
| pH | Automatic Calibration | 1, 2, 3, 4, 5 Points |
| mV (ORP) | Measurement Range | (-2000.0 ~ 0 ~ 2000.0) mV |
| Temperature | Measurement Range | (-30.0 ~ 130.0) °C |
| Data Storage | 2000 Sets | |
| Power | DC 12V / 1A | |
| Weight | 600 g | |
| Protection Grade | IP54 |
Frequently Asked Questions
What should I do if the YR06615 does not power on?
First, check that the power adapter is securely connected to both the meter and the power outlet. If the issue persists, try using a different outlet or replacing the power adapter. If none of these steps work, consult the user manual for further troubleshooting tips.
How often should I calibrate the YR06615?
It is recommended to calibrate the YR06615 at least once a week or before any critical measurements, especially in environments with fluctuating temperatures or when using new buffers.
Can I use the YR06615 for ORP measurements?
Yes, the YR06615 is capable of measuring oxidation-reduction potential (ORP) in addition to pH, with a range of -2000.0 to 2000.0 mV, ensuring versatile functionality for various applications.
What types of electrodes are compatible with the YR06615?
The YR06615 is compatible with a variety of electrodes designed for pH and ORP measurements. Ensure to select electrodes that meet the necessary specifications and calibration standards for your specific application.
How do I export data from the YR06615?
The YR06615 features a USB output for easy data transfer. Connect the device to a computer using the USB cable, and follow the prompts on the device to export your stored measurements.
What is the warranty period for the YR06615?
The YR06615 typically comes with a one-year warranty, covering manufacturing defects. Ensure to keep your purchase receipt for warranty claims, and refer to the user manual for details on warranty conditions.
