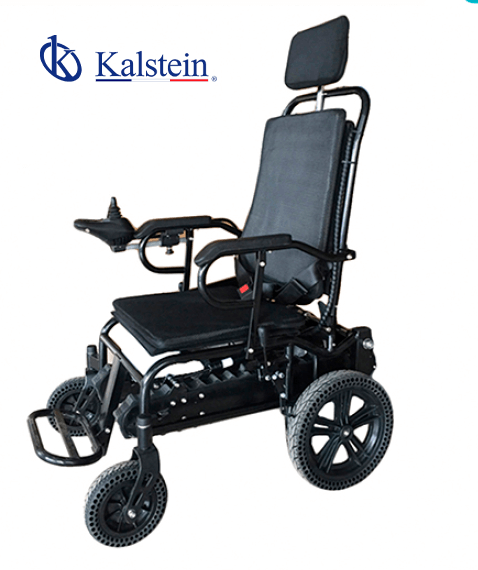

Installation and Startup Guide for the YR05447 Climbing Wheelchair
The YR05447 climbing wheelchair is a multifunctional device designed to enhance mobility for users with physical limitations. This guide provides detailed instructions on the installation and startup of the YR05447 model, ensuring that users can make the most of its advanced features. Proper setup is crucial for optimal performance, safety, and longevity of the wheelchair.
Understanding the YR05447 Climbing Wheelchair
The YR05447 model is designed with a unique climbing ability that allows users to navigate stairs easily. It features a universal controller, adjustable height settings, and a breathable sponge cushion, providing comfort and functionality. The wheelchair operates efficiently on flat surfaces and during climbing operations, making it a versatile choice for various environments.
Technical Specifications of the YR05447
| Model | YR05447 |
|---|---|
| Handling Area | 1 SKM |
| Maximum Speed | 10 km/h |
| Motor | 24V AC 370W |
| Battery | 24V 12Ah (Lithium battery) |
| Hand Brake | Manual brake cushion and electromagnetic brake: Black |
| Minimum Stair Depth | 1.1 meters |
| Climbing Number | 500 |
| Stair Width | 0.7 m |
| Stair Incline | <45° |
| Gross Weight | 60 kg |
| Net Weight | 69 kg |
| Load Capacity | 150 kg |
| Total Length | 58 cm |
| Average Width | 100 cm |
| Total Height | 44 cm |
| Seat Width | 44 cm |
| Front Wheel | 8 inches |
| Rear Wheel | 12 inches |
| Entry Height | 44 cm |
| Folding Size | 93x68x58 cm |
Unboxing and Initial Setup
Upon receiving the YR05447 climbing wheelchair, follow these steps to ensure a smooth unboxing and setup process:
- Carefully open the packaging and remove the wheelchair components, checking for any visible damages.
- Ensure all accessories and user manuals are included as per the packing list.
- Inspect the wheelchair for loose parts and ensure that the wheels are securely attached.
Anchoring and Leveling the Wheelchair
The YR05447 wheelchair must be anchored and leveled correctly for safe usage. Follow these instructions:
- Position the wheelchair on a flat surface to ensure stability during initial use.
- If using on stairs, verify that the stair dimensions meet the specifications outlined earlier.
- Adjust the height of the wheelchair using the universal controller to accommodate the user's comfort.
Power-Up Sequence and First Calibration
After leveling the wheelchair, proceed with the power-up sequence:
- Connect the wheelchair to a power source and ensure the battery is fully charged.
- Switch on the universal controller. Wait for the system to initialize.
- Perform the first calibration by following the prompts on the controller screen.
Common Installation Mistakes to Avoid
Awareness of common mistakes during installation can prevent operational issues:
- Neglecting to check the battery charge before first use.
- Incorrectly adjusting the height, leading to discomfort.
- Failing to secure all components tightly, which may cause instability.
Frequently Asked Questions
What are the battery specifications for the YR05447 wheelchair?
The YR05447 operates on a 24V 12Ah lithium battery, which provides sufficient power for extensive use.
How do I charge the battery of the YR05447?
Connect the wheelchair to the appropriate charger and allow it to charge fully before first use. Regular charging after use is recommended to maintain battery health.
What is the weight capacity of the YR05447 climbing wheelchair?
The YR05447 is designed to support a maximum load capacity of 150 kg, accommodating a variety of users.
Can the YR05447 be used on all types of stairs?
The YR05447 can be effectively used on stairs with a minimum depth of 1.1 meters and an incline of less than 45°.
What is the maintenance plan for the YR05447 wheelchair?
Regular maintenance includes checking the battery health, inspecting wheels for wear, and ensuring that all bolts and screws are secure to enhance safety and performance.
How do I troubleshoot common issues with the YR05447?
Refer to the user manual for troubleshooting steps, or contact support if issues persist. Common symptoms may relate to battery, wheel function, or controller errors.
Where can I request a quote for the YR05447 wheelchair?
You can request a quote directly through our sales channels for the YR05447 wheelchair to get detailed pricing information.
