Installation and Commissioning Guide for the YR05104 Horizontal Freezer
The YR05104 Horizontal Freezer is designed for optimal performance in various laboratory environments. This guide aims to provide detailed instructions for the installation and commissioning of the YR05104, ensuring it operates effectively and efficiently from the outset.

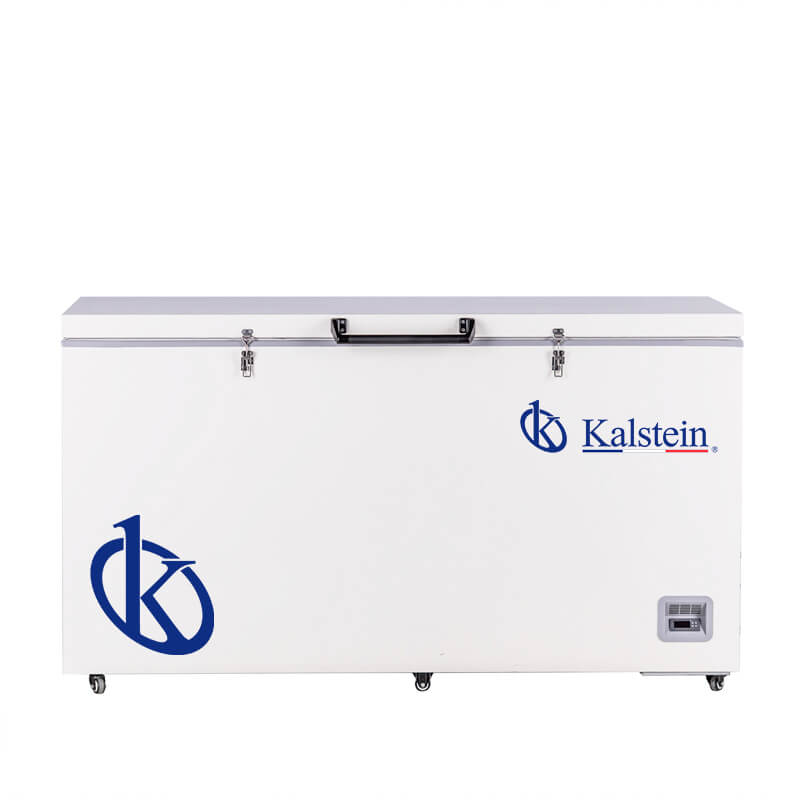

Overview of the YR05104 Horizontal Freezer
The YR05104 model is a state-of-the-art horizontal freezer featuring essential attributes that make it ideal for preserving sensitive materials. It utilizes stable, CFC-free refrigerants and microprocessor control for adjustable temperature settings ranging from +30 °C to -40 °C.
Technical Specifications of the YR05104
| Specification | Details |
|---|---|
| Model | YR05104 |
| Cooling Method | Direct Cooling |
| Defrosting | Manual |
| Refrigerant | R290 |
| Energy Consumption (kWh/23h) | 3.45 |
| Noise Level (dB) | 55 |
| Ambient Temperature (°C) | 10 ~ 32 °C |
| Temperature Range (°C) | -20 ~ -40 °C |
| Power Supply (V/Hz) | 220/50 Hz |
| Power Consumption (W) | 295 W |
Unboxing Checklist
Before installation, ensure you have the following items unpackaged and ready:
- YR05104 Horizontal Freezer
- Power cord
- User manual
- Accessories (if applicable)
Installation Steps for the YR05104
Follow these steps to properly install the YR05104 Horizontal Freezer:
- Select an Appropriate Location: Ensure the location has adequate ventilation and is away from direct sunlight.
- Level the Unit: Use a spirit level to ensure the freezer is perfectly level to ensure proper operation.
- Power Connection: Plug the unit into a dedicated power outlet that meets the voltage requirements. Ensure the outlet is grounded.
- Initial Calibration: After powering on, calibrate the temperature settings as per the user manual.
First-Run Calibration
After installation, the first-run calibration is crucial for optimal performance. Set the temperature to the desired level and monitor the internal temperature for stability over a period of several hours. Adjust as necessary.
Common Setup Mistakes to Avoid
- Placement in direct sunlight or near heat sources.
- Failure to level the unit properly.
- Using an incorrect power supply.
- Neglecting to perform initial calibration.
Troubleshooting Installation Issues
If issues arise during installation or initial operation, refer to the following solutions:
| Symptom | Probable Cause | Solution |
|---|---|---|
| Unit does not power on | Power supply is not connected | Check the power connection and outlet |
| Temperature is not stabilizing | Improper calibration | Recalibrate the temperature settings |
| Excessive noise | Improper leveling | Re-level the unit |
Site Requirements for the YR05104
Ensure the installation site meets the following requirements:
- Temperature: 10 ~ 32 °C
- Humidity: Low humidity levels are preferred.
- Ventilation: Adequate airflow around the unit.
- Clearances: Ensure there is enough space around the freezer for service access.
Frequently Asked Questions
What are the safety features of the YR05104 Horizontal Freezer?
The YR05104 is equipped with multiple alarms for malfunction detection, including high and low temperature alarms, sensor errors, and power failures. It also has an audible alarm and visual indicator for alerts.
How do I perform routine maintenance on the YR05104?
Routine maintenance involves regular cleaning of the exterior and interior surfaces, checking the door seal for integrity, and monitoring the temperature settings periodically for accuracy.
Can I use the YR05104 in an industrial setting?
Yes, the YR05104 is designed for versatility and can be effectively utilized in various industrial and laboratory settings where temperature-sensitive materials need to be stored.
What power requirements does the YR05104 have?
The YR05104 operates on a voltage supply of 220V with a frequency of 50Hz, consuming around 295W of power during operation.
How often should I defrost the YR05104?
Defrosting should be done manually when frost build-up is significant enough to affect the efficiency of the freezer. Regular checks can help determine the appropriate defrosting frequency.
What should I do if the YR05104 displays an error code?
Refer to the user manual for specific error codes and troubleshooting steps. Common solutions include resetting the unit or recalibrating the settings as directed.
Where can I request a quote for the YR05104?
You can easily request a quote for the YR05104 Horizontal Freezer by contacting our sales team through the provided channels.
