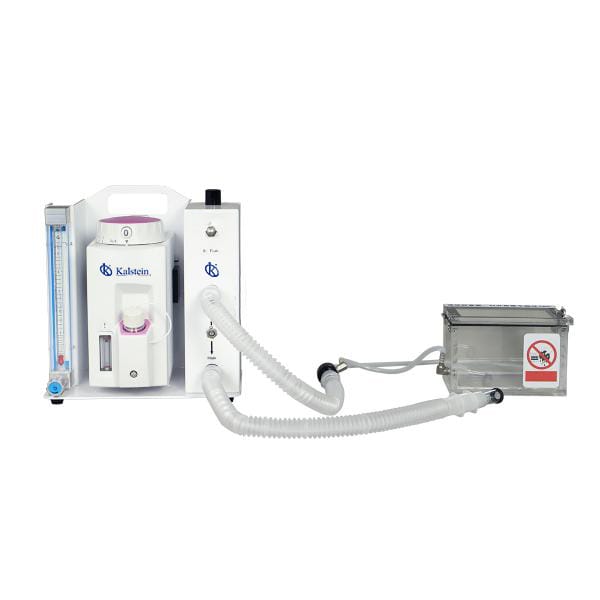

Installation and Commissioning Guide for the YR06099 Veterinary Anesthesia Machine
The YR06099 Veterinary Anesthesia Machine is designed to provide precise and reliable anesthesia delivery for a variety of laboratory animals. This guide focuses on the installation and commissioning process, ensuring that you can operate this sophisticated piece of equipment safely and effectively.
Understanding the YR06099 Veterinary Anesthesia Machine
The YR06099 is a state-of-the-art veterinary anesthesia machine that offers automatic compensation for flow and temperature. With precision not inferior to 0.5%, it maintains a temperature range of 15-35°C, which helps reduce dosing frequency and enhances user convenience. Its compact design and multiple features make it suitable for various laboratory environments.
Technical Specifications of YR06099
| Specification | Details |
|---|---|
| Model | YR06099 |
| Gas Source Supply Flow Rate | 0.2~15L/min (0.2~8L/min if concentration > 4%) |
| Control Concentration Range | Sevoflurane: 0.2-8%, Isoflurane: 0.2~5% |
| Concentration Control Accuracy | ±5% of full scale or ±15% of set value |
| Maximum Pressure Load | 20kPa |
| Maximum Use Tilt Angle | 30° |
| Weight | 20 kg |
| Material | Mainly aluminum |
Unboxing and Initial Setup Checklist
Before beginning the installation process, ensure you have the following items:
- YR06099 Veterinary Anesthesia Machine
- Power supply cable
- Oxygen and air source connections
- Instruction manual
- Calibration tools
Positioning the YR06099
Proper positioning of the YR06099 is crucial for its operation. Here are the steps to ensure optimal placement:
- Select a stable, flat surface that can support the weight of the machine.
- Ensure at least 1 meter of clearance around the machine for ventilation and operation.
- Secure the machine in place to prevent movement during operation.
Power-Up Sequence
Follow these steps to power up the YR06099:
- Connect the power supply cable to a suitable power outlet.
- Ensure the gas supply is connected and turned on.
- Turn on the main power switch located on the back of the machine.
- Check the display panel for initialization messages.
Calibration and First-Run Validation
After powering up the machine, perform the following calibration steps:
- Set the desired concentration levels for Sevoflurane or Isoflurane.
- Use the calibration tools to validate the flow and concentration settings.
- Run a test cycle to ensure that all systems are functioning correctly.
Common Installation Mistakes to Avoid
Being aware of common mistakes during installation can save time and resources:
- Improper gas connections can lead to equipment malfunction.
- Not checking calibration before first use can result in inaccurate dosing.
- Insufficient clearance around the machine can impact performance.
Frequently Asked Questions
What are the maintenance requirements for the YR06099?
Regular maintenance includes checking gas connections, calibrating the machine monthly, and ensuring that the anesthetic supply is appropriately managed. Always refer to the user manual for detailed instructions.
Can the YR06099 handle different species of animals?
Yes, the YR06099 is suitable for various laboratory animals such as rats, mice, rabbits, cats, hamsters, and guinea pigs. Different specifications and accessories can be chosen based on the animal type.
What safety features does the YR06099 include?
The YR06099 includes an anti-accidental opening lock structure and a safety protection feature when in the closed state to ensure user and animal safety during operation.
How do I troubleshoot if the machine is not powering on?
If the YR06099 does not power on, check the power supply connection, ensure the main switch is turned on, and verify that the outlet is functional. If issues persist, refer to the troubleshooting section in the manual.
What is the flow rate range for gas supply?
The gas source supply flow rate for the YR06099 ranges from 0.2 to 15L/min, and if the concentration is greater than 4%, it ranges from 0.2 to 8L/min.
What kind of gas supply is needed for the YR06099?
The YR06099 requires a medical-grade mixture of pure oxygen and air or a mixture of oxygen and nitrous oxide (O2 and N2O) as the gas supply.
Where can I find replacement parts for the YR06099?
Replacement parts can typically be ordered through authorized suppliers or directly from the manufacturer. Always ensure that you are using compatible parts to maintain the machine's performance.
