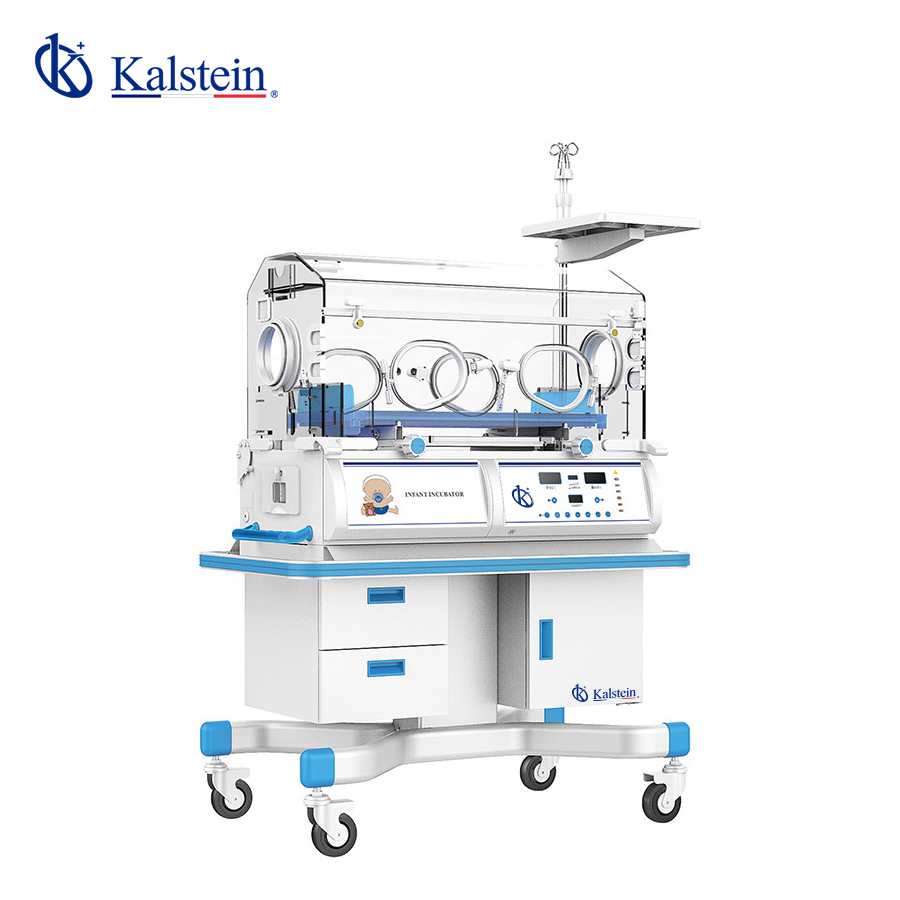

Installation and Commissioning Guide for the YR02186 Infant Incubator
Welcome to the comprehensive installation and commissioning guide for the YR02186 Infant Incubator. This document aims to provide medical professionals and technicians with detailed instructions and best practices for setting up this advanced incubator.
Understanding the YR02186 Infant Incubator
The YR02186 Infant Incubator is designed to create an optimal environmental condition for newborn patients through an advanced thermoregulation system. Its features include precise temperature control, minimal noise, and ease of use for caregivers.
Key features of the YR02186 include:
- Microprocessor-controlled temperature for reliable operation.
- Audible and visual alarm indicators for multiple failure conditions.
- Adjustable mattress inclination up to 10 degrees.
- Air circulation system to ensure a stable environment.
- Convenient drawer-type water tank for easy cleaning.
Technical Specifications of the YR02186
| Model | YR02186 |
|---|---|
| Air Temperature Control | Yes |
| Skin Temperature Control | Yes |
| Control for 37 °C Air Temperature | Yes |
| Reclining Cradle | Yes |
| Humidity Monitor | No |
| Humidity Control | No |
| Side Door | No |
| Aluminum Heat Retention Tank | Yes |
| Operation Windows and Access Ports | 2 ports, 4 windows |
| Cabinet | Yes |
| Adjustable Working Height | No |
| Additional Rear Door | No |
| Baby Scale Bed | No |
| Low Noise DC Motor | No |
| Weight (Gross) | 120 kg |
| Dimensions | 108 x 64 x 92 cm |
Installation Steps for the YR02186 Incubator
The installation of the YR02186 requires precise attention to detail to ensure optimal performance. Follow these steps during the installation process:
Unboxing Checklist
- Confirm that all components are included per the packing list.
- Inspect for any visible damage during shipping.
- Ensure that the installation area is prepared and clear of obstructions.
Anchoring and Leveling
Proper anchoring and leveling are crucial for the stability of the incubator. Use a level tool to ensure the incubator is horizontally aligned. Adjust the feet of the incubator as necessary.
Power-Up Sequence
Connect the incubator to a power source that meets the model specifications. Follow the power-up sequence as indicated in the user manual:
- Connect the power cable to the incubator.
- Switch on the power supply.
- Observe the display for initialization and self-tests.
First-Run Calibration
Once powered up, perform the initial calibration by checking the following settings:
- Set the air and skin temperature parameters as needed.
- Monitor the heating function to ensure it reaches the desired temperature.
- Validate the alarm settings for functionality.
Common Setup Mistakes and How to Avoid Them
While installing the YR02186, there are common pitfalls that technicians may encounter:
- Not leveling the incubator correctly, leading to inaccurate temperature readings.
- Failing to properly configure alarm settings which can lead to missed alerts.
- Not conducting a thorough inspection of the incubator post-installation.
FAQs
What is the optimal ambient temperature for the YR02186 Infant Incubator?
The optimal ambient temperature should be maintained between 20°C to 24°C to ensure the incubator operates effectively.
How often should the YR02186 undergo maintenance?
Regular maintenance should be performed every six months to ensure the incubator remains in optimal condition.
Can the YR02186 be connected to external monitoring systems?
Yes, the YR02186 includes an RS-232 connector for integration with external monitoring systems.
What is the maximum weight limit for the YR02186's crib?
The YR02186 is designed to hold infants weighing up to 5 kg safely.
Is there a need for calibration before each use of the YR02186?
While calibration before every use isn't required, it is advisable to check settings and perform a calibration if the incubator has been moved.
What alarm systems are in place for the YR02186?
The YR02186 has multiple alarm indicators for failures, with audible and visual signals that can be heard up to 8 meters away.
